Product Number: DB1BNC-25

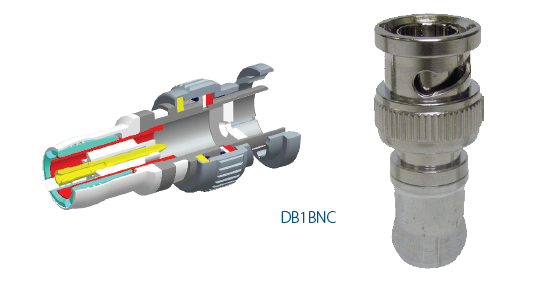

Double Bubble Mini RGB BNC Coax Compression Connector 25-26 AWG
Double Bubble Mini (25-26 AWG) BNC connector, fits most brands of RGB/mini coaxial cable. Compression design that molds the metal completely around the cable. 25 per Pack
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
CCTV, Security Cameras, Video |
|---|
Physical Characteristics (Overall)
|
Packaging |
25 Pack |
|---|---|
|
Number of Pieces |
1 |
Connectors
Materials
| Material |
|---|
| Nickel plated Brass |
| Gold Plated |
Electrical Characteristics
Return Loss
| Frequency [MHz] |
|---|
|
DC-1 GHz |
|
DC-2 GHz |
|
DC-3 GHz |
Mechanical Characteristics
|
Footprint/Type |
Coax |
|---|---|
|
Connector Interface Type |
BNC |
|
Gender |
Male - plug |
|
Connector Series Name |
Double Bubble |
|
Locking |
No |
|
Tool Compatibility |
CPLCRBC-BR (compression), PS59/6/RGB (strip) |
|
Termination Type |
Compression |
|
Cable Center Conductor Diameter Limits |
.015 - .025 inch |
|---|---|
|
Cable Dielectric Diameter Limits |
.065 - .078 inch |
|
Cable Outer Jacket Diameter Limits |
.095 - .110 inch |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor/Outdoor |
|---|---|
|
EU CE Mark |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
Yes |
Related Part Numbers
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
|---|
History
|
Update and Revision |
Revision Number: 0.130 Revision Date: 03-04-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.130 Revision Date: 03-04-2023 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| DB1BNC-25 | No Color | 845671001761 |
