Product Number: AX107301

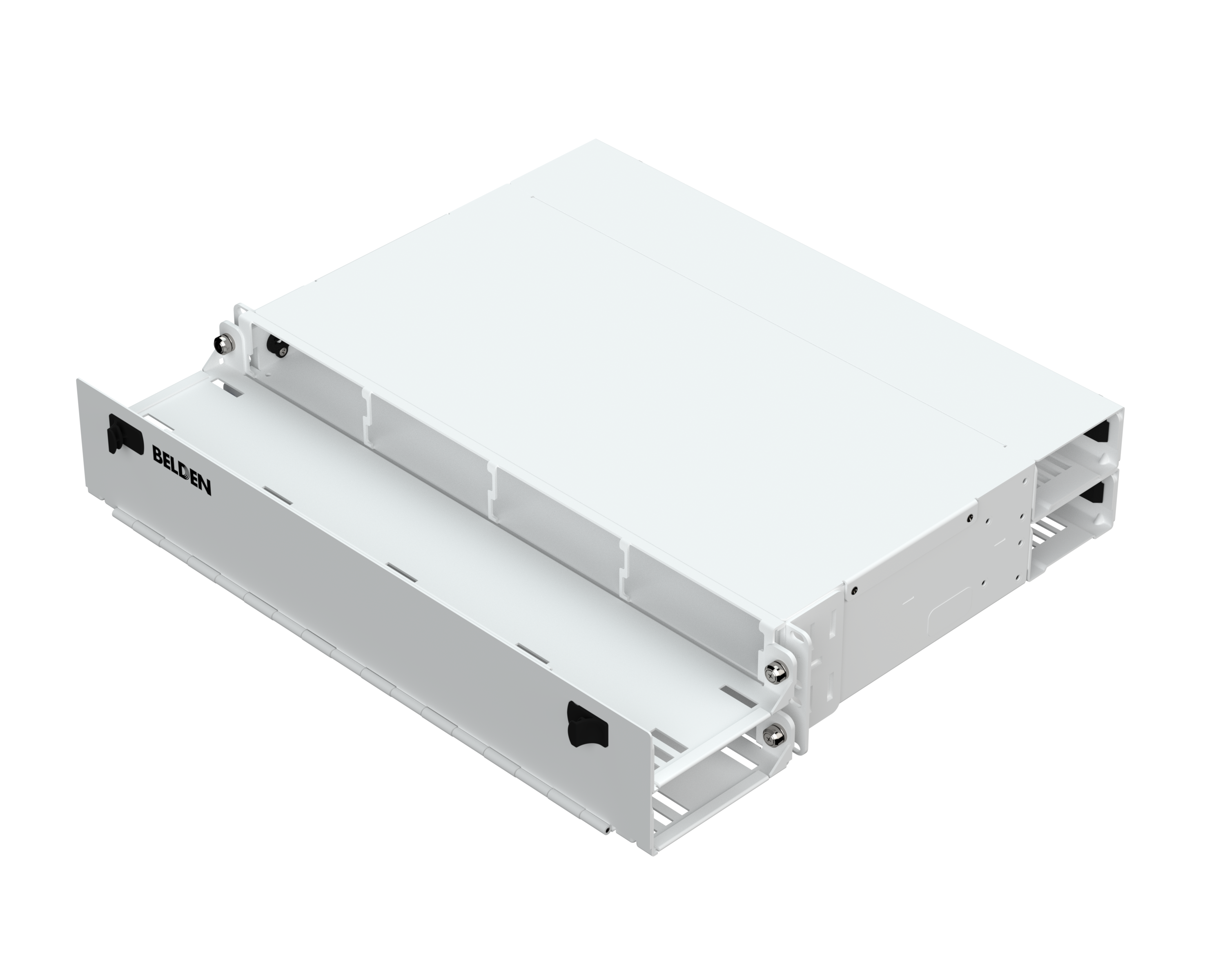

FX UHD 2U PATCH PANEL HOUSING EMPTY, SIGNAL WHITE FINISH

FIBER EXPRESS ULTRA HD PATCH PANEL HOUSING 2U, EMPTY, SIGNAL WHITE

  • Availability:
    Global
  • Status:
    Active
AX107301
  • AX107301
1 of 1

Specifications

Expand All

Environmental Space

Indoor

Suitable Applications

FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers

Weight

10.14 lbs

Overall Height

3.5 in

Overall Width

19 in

Overall Length

16.75 in

Max Capacity

8 FX UHD Frame/Cassettes

Inner Jacket

Inner Jacket

Mechanical Tests

Description

Front Connection

Static FX UHD / 1 inch Pullout FXU

Operating Temperature Range

-10°C to +60°C

Storage Temperature Range

-40°C To +70°C

Materials

Description Material
Panel Steel/Aluminum
Door Aluminum

MII Order #39 (China RoHS)

EUP 50

Included Parts

Screws (12-24); Screws (10-32); Tie Wraps; Kurly locks; Velcro Straps; Mkr Wire Card-Blue; Identification Labels

Related Parts

FiberExpress Ultra and Ultra High Density Frames and Cassettes

Packaging

Individually packaged in a cardboard box.

Notes

For more information, please refer to our web site at http://www.belden.com. Installation Guide:PX105678.

Update and Revision

Revision Number: 0.14 Revision Date: 10-16-2024

Update and Revision

Revision Number: 0.14 Revision Date: 10-16-2024
