Product Number: AX110273

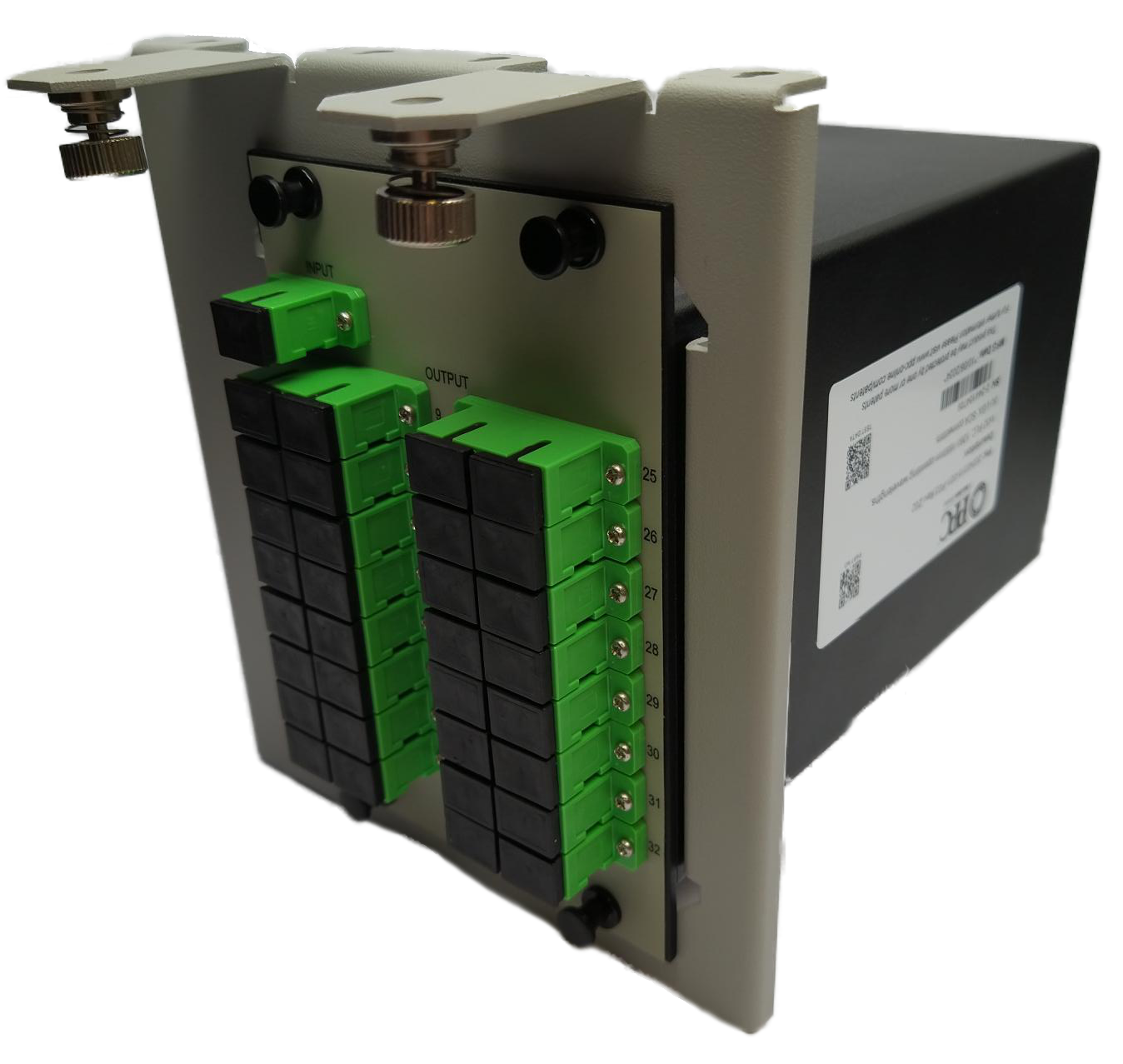

FX UHD, BULKHEAD ASSEMBLY WITH 1X32 LGX SPLITTER MODULE

FX UHD Bulkhead Assembly With Splitter Module, OS2 G.657 A2, 1X32 LGX, 1 Splitter, SC/APC Input, SC/APC Output, Front

  • Availability:
    Global
  • Status:
    Active
AX110273
  • AX110273
1 of 1

Specifications

Expand All

Environmental Space

Indoor

Suitable Applications

FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Passive Optical LAN

Fiber Cable Construction

Fiber Type
OS2, G.657.A2

Weight

1.46 lbs

Overall Height

5.1 in

Overall Width

3.42 in

Overall Length

6.14 in

Max Capacity

32 Fibers (Output)

Inner Jacket

Inner Jacket

Wavelength

1260-1650 Nanometers

Mechanical Tests

Description

Front Connection

Static

Termination Style

Front

Operating Temperature Range

-40°C To +85°C

Storage Temperature Range

-40°C To +85°C

Materials

Description Material Color Type
Housing Sheet Metal Black
Adapter Output Plastic - UL94V-0 Green SC-Duplex/APC
Adapter Input Plastic - UL94V-0 Green SC-Simplex/APC

Transmission Specifications

IL Max (dB) Uniformity Max (dB) PDL Max (dB) Directivity Min (dB) RL Min (dB)
17.1 2.5 0.4 -55 -55

TIA/EIA Compliance

Telcordia GR-1209-CORE (splitters only), Telcordia GR-1221-CORE (splitters only)

MII Order #39 (China RoHS)

EUP 50

Related Parts

FX UHD Wall-Mount Patch Panel, FX UHD and FX Ultra Cassettes & Frames, FiberExpress Pre-Terminated Assemblies

Packaging

Individually packed in a box.

Update and Revision

Revision Number: 0.10 Revision Date: 08-15-2025

Update and Revision

Revision Number: 0.10 Revision Date: 08-15-2025
