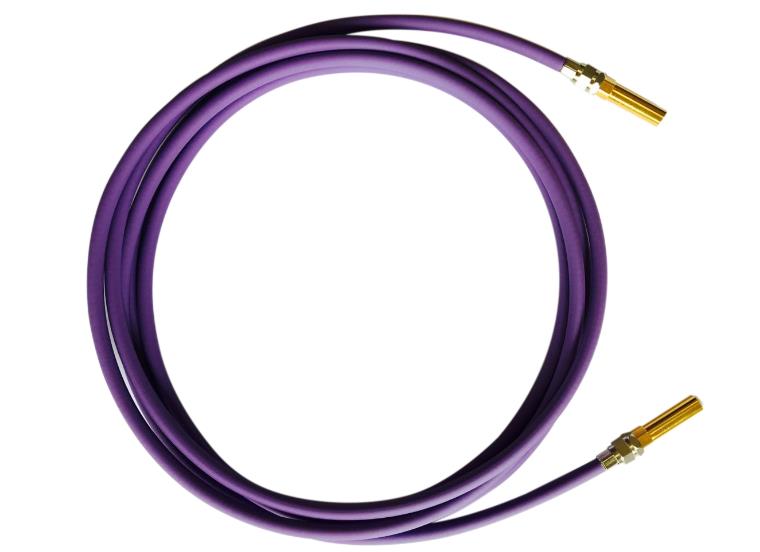

VPC1505FWW07L01

1505F RG59, Mini-WECO Plug to Mini-WECO Plug, Video Patch Cord

...
1505F RG59, Mini-WECO Plug to Mini-WECO Plug, Video Patch Cord
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Inner Shield
Type Coverage [%]
Braid 95%

Packaging

Product Individually packaged in a transparent polybag.

Connectors
Materials
Description Material Type
Connector Mini-WECO plug
Outer Contact Brass with gold plating
Dielectric & Entry Brusing PTFE
Inner Contact Brass with gold plating
Construction and Dimensions

Cable Type

75 Ohm 1505F RG59 Serial Digital Coax cable

Electrical Characteristics

Rated Voltage

300 V (rms)

Impedance
Nominal Impedance
75 Ohm
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. RL (Return Loss) [dB]
5 - 1500 MHz 3 dB 15 dB
1500 - 3000 MHz 3 dB 10 dB
Voltage
Dielectric Withstand Voltage
1200 V (rms)
Temperature Range

Operating Temperature Range

-35℃ to +75℃

Mechanical Characteristics

Max. Pull Tension

20 lbs

Min Bend Radius (Overall Cable)

63.5 mm

Termination Front Connection Durability

500

Termination Rear Connection Durability

500

Standards

Military Compliance

MIL STD 202G

Applicable Environmental and Other Programs

EU Directive 2011/65/EU (RoHS 2)

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL CM Flame Rated

Related Part Numbers

Related Parts

Belden’s VPNS1532 and VPNS1032 Video Patch Panel

History

Update and Revision

Revision Number: 0.18 Revision Date: 04-08-2022

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Length
VPC1505FWW07L0D5 Violet 0.5 m
VPC1505FWW07L01 Violet 1 m
VPC1505FWW07L02 Violet 2 m
VPC1505FWW07L03 Violet 3 m
