Product Number: FACEPLATE 6C SERIES
Faceplate 6C Outlet

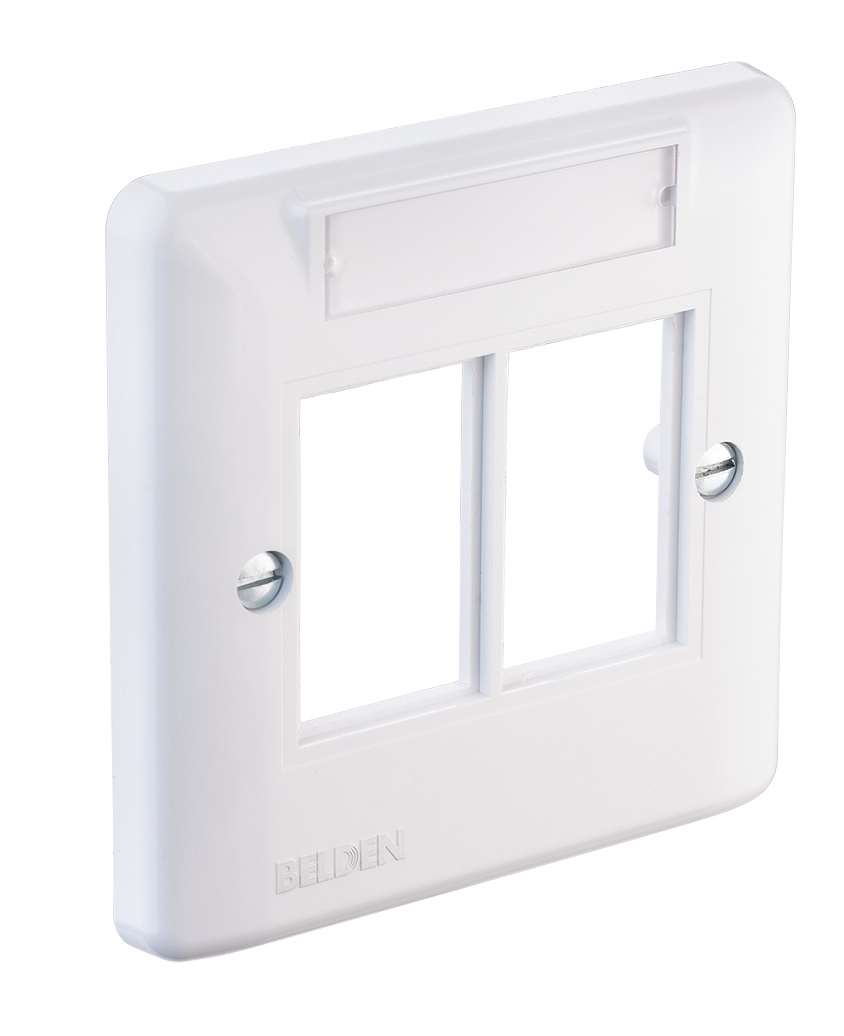

6C (38.5x25mm) Modular Outlet Faceplate
-
Availability:
EMEA
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800,3600, 2400 and 1200 |
|---|
Physical Characteristics (Overall)
|
Height |
86 mm |
|---|---|
|
Width |
86 mm |
|
Depth |
10 mm |
|
Packaging |
Individually packaged in a plastic bag. |
Connectors
Materials
| Description | Material |
|---|---|
| Faceplate | Plastic - PC-ABS, UL94V-0 |
Mechanical Characteristics
|
Footprint/Type |
KeyConnect & MDVO |
|---|---|
|
Plug /Jack Compatibility |
RJ45 |
Standards
|
TIA/EIA Compliance |
ISO/IEC 11801-1:2017 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL-94V0 |
|---|
Related Part Numbers
|
Related Parts |
Compatible with UTP KeyConnect, UTP MDVO and UTP and Shielded REV Connect Multimedia Modules for 10GX, CAT6+ and CAT5E. |
|---|
History
|
Update and Revision |
Revision Number: 0.34 Revision Date: 05-31-2024 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.34 Revision Date: 05-31-2024 |
|---|
Part Numbers
| Item # | Color | Port Count |
|---|---|---|
| NN01532 | Black | 1 Insert |
| NN01533 | Black | 2 Insert |
| NN01534 | Black | 4 Insert |
| NN01544 | Grey | 1 Insert |
