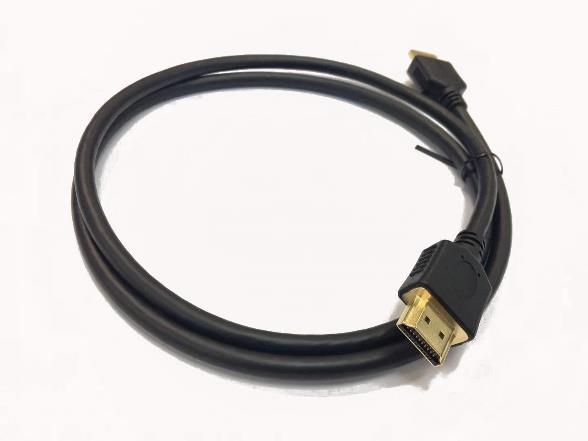

Premium HDMI - 18Gbps

Premium High Speed HDMI

...
High Speed Ethernet Capable HDMI Cable Assembly, supports 4K UHD @ 60Hz (up to 18Gbps)-4:4:4 chroma sampling, 4K High Dynamic Range (HDR) video, 3D etc. appplication
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Digital Signage, Computer Monitors, Projectors, Gaming Consoles, DVD Players

Physical Characteristics (Overall)
Inner Shield
Type
Tape

Table Notes

Individual screen

Outer Shield
Type
Braid
Outer Jacket
Element Material Color Diameter - Tolerance
0 - 3m PVC - Polyvinyl Chloride Black 5.7 mm
3m - 5m PVC - Polyvinyl Chloride Black 6.5 mm
5m - 10m PVC - Polyvinyl Chloride Black 9.0 mm
10m - 20m PVC - Polyvinyl Chloride Black 8.5 mm
Electrical Characteristics
Voltage
Voltage Rating [V]
30V
Temperature Range

Operating Temperature Range

0°C To +40°C

Mechanical Characteristics

Min. Bend Radius During Operation

4*OD

Termination Interface
Connection Durabilities
HDMI Type A 10,000 cycles
HDMI Type A
Standards

UL Rating

AWM 20276

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2011/65/EU (RoHS 2)

Compliant

Suitability

Suitability - Indoor

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

VW-1

Related Part Numbers

Footnote

Pls note that for products exceed 10m, the products is directional, since the connectors at both ends different(one end is display end, the other end is source)
History

Update and Revision

Revision Number: 0.1 Revision Date: 11-28-2019
