Product Number: Vertical Mgr Finger Style with Door

Finger Style Manager with Cover

Belden Cabinet Line Finger Style Vertical Managers with Cover

  • Availability:
    Global
  • Status:
    Active

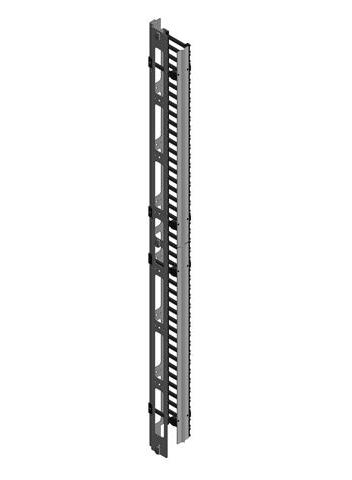

Vertical Mgr Finger Style with Door
  • Vertical Mgr Finger Style with Door
1 of 1

Specifications

Expand All

Product Overview

Mounts on rail struts for depth adjustability Compatible with 30"W cabinets Can be used in cabinet front and rear Includes doors to hide cables and provide an organized look Vertical manager can be oriented two different ways to optimize cabling

Features

4" wide x 6" deep for 24 sq. in. of cross-sectional area, For medium- and high-density applications, Management fingers align with mounting rail RU, Finger allows for cable support and bend radius control, Oblong opening allows cable routing into the manager

Environmental Space

Indoor

Width

4.0 in

Depth

6.0 in

Mounting

Vertical

Material

Steel and molded plastic fingers

Update and Revision

Revision Number: 0.24 Revision Date: 05-31-2024

Update and Revision

Revision Number: 0.24 Revision Date: 05-31-2024


Report An Error

Part Numbers

Item Part # Description Color Depth Width
HVM024201 Finger Style Manager with Cover, 42U Black 6.0 in 4.0 in
HVM024202 Finger Style Manager with Cover, 42U White 6.0 in 4.0 in
HVM024501 Finger Style Manager with Cover, 45U Black 6.0 in 4.0 in
HVM024502 Finger Style Manager with Cover, 45U White 6.0 in 4.0 in
HVM024801 Finger Style Manager with Cover, 48U Black 6.0 in 4.0 in
HVM024802 Finger Style Manager with Cover, 48U White 6.0 in 4.0 in
