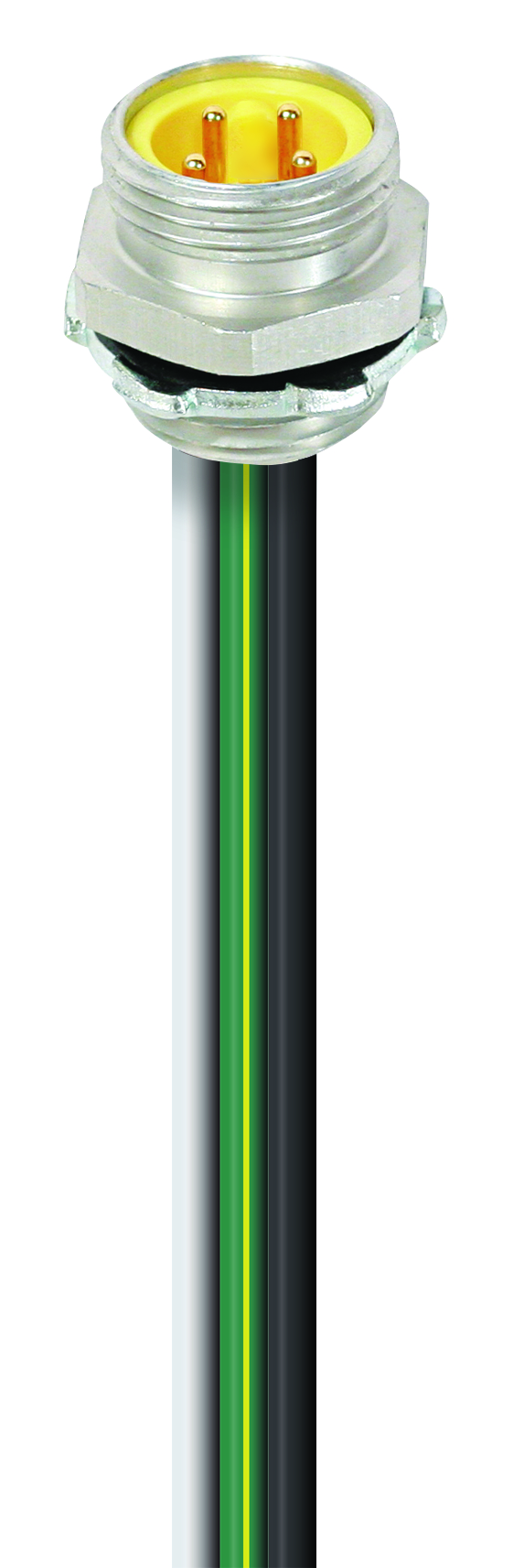

RSFPA 4-1/2NPT-805

Mini Power Receptacle Connector: 7/8", male, front mount, 4-pin(3+PE), silver housing, 600 V, 15 A, 14 AWG

Mini Power Receptacle Connector: 7/8", male, front mount, 4-pin(3+PE), silver housing, 600 V, 15 A, 14 AWG

Request Quote

Share

Get Product Alerts

Specifications

Report An Error

Product Family	Power Connector
Product Sub Family	Mini Power 7/8"
Connector Type	Receptacle
Type of Contact / Gender	male
Connector Design	straight
Number of Pins	4(3+PE)
Shielding	Unshielded
Rated Voltage (UL)	600 V
Rated Current (UL)*	15 A
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	-40°C to +90°C
Protection Degree / IP Rating**	IP65, IP67

Contact Base Material	Cu Alloy
Contact Plating	Au
Contact Bearer Material	PVC
Contact Bearer Color	black
Housing Material	Brass
Housing Plating	Ni
Housing Color	Silver

Conductor Size	14 AWG
Number of Wires	4
Conductor material	Cu
Wire Insulation Material	PVC
Insulated Wire Diameter	ø 0.132 in
Ambient Temperature (Fixed Installation)	-40 °C to +90 °C

UL-File	UL: E482233
UL	UL 2237
CSA	C-UL LISTED: E482233

RoHS Compliant	yes

Protection Degree / IP Rating Note	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Part Numbers

Item #	Item Description	Cable Length
511000378	RSFPA 4-1/2NPT-805/0.5M	0.5 m
511000379	RSFPA 4-1/2NPT-805/1M	1 m
511000380	RSFPA 4-1/2NPT-805/3M	3 m
