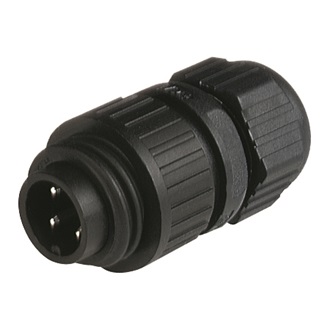

Circular Field Attachable Power Connector (CA Series): Male, straight, 4-pin(3+PE), integrated strain relief, 400 V AC/230 V DC, 16 A AC/10 A DC

CA 3 LS
Circular Field Attachable Power Connector (CA Series): Male, straight, 4-pin(3+PE), integrated strain relief, 400 V AC/230 V DC, 16 A AC/10 A DC
Get Product Alerts
Specifications

Product Family

Power Connector

Product Sub Family

CA-Series

Connector Type

Field Attachable

Type of Contact / Gender

male

Connector Design

straight

Number of Pins

4(3+PE)

Shielding

Unshielded

Attachment Type

Coupling Screw

Rated Voltage

250 V DC, 400V AC

Rated Impulse Voltage

6.0 kV

Operating Voltage

230 V DC, 400V AC

Rated Current*

10 A DC, 16 A AC (1.5 mm²)

Contact Resistance

≤ 10 mOhm

Type of Connection

screw terminal

Cable Gland

TR22

Conductor Cross Section

0.5 mm² to 2.5 mm²

Strain-Relief

clamping cage

Suitable Cables

Ø6 mm to Ø12 mm, Gasket Ø9 mm for cables with Ø6 - 9 mm, Gasket Ø12 mm for cables with Ø9 - 12 mm

Ambient Temperature (Operation)*

-40°C to +90°C, notice derating

Temperature Range (Gasket)

-40°C to +90°C

Protection Degree / IP Rating**

IP66, IP67

Design Standard

DIN EN 61984 (VDE 0627)

Pollution Degree

3 acc. to DIN EN 60664-1 (VDE 0110-1)

Clearance / Creepage Distance

DIN EN 60664-1 (2008/01); VDE 0110-1

Materials

Contact Base Material

CuZn

Contact Plating

Cu/Ag

Contact Bearer Material

PA 66 GF

Contact Bearer Color

black

Flammability Class (Contact Bearer)

UL 94 V-0

Attachment Material

PA 66 GF

Flammability Class (Attachment)

UL 94 V-0

Gasket Material

NBR

Circuitry

Fastening Torque (Contact Screw)

M3: (25-30) Ncm

Fastening Torque (Cable Gland)

TR22: min. 250 Ncm

Mating Connectors / Fitting to

934-125-100 CA 3 LD (field attachable, straight), 934-129-100 CA 3 W LD (field attachable, angled), 932-321-100 CA 3 GD (receptacle, straight)

Accessories to Order Separately

831-530-400: CA00 SD 1, cap

Approvals

UL-File

E95522, Series CA 3

VDE

VDE-Reg.-Nr. 2745

Notes

Note Derating

* Notice derating

Protection Degree / IP Rating Note

** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

Note

Do not connect or disconnect under load.

Belden.PartNumbers
Item # Item Description Housing Color Housing Material Cable Gland Material
934124100 CA 3 LS black PA 66 PA 66
934124102 CA 3 LS blau/blue blue PA 6 PA 6
934124101 CA 3 LS rot / red red PA 6 PA 6
934124107 CA 3 LS weiß / white white PA 6 PA 6
