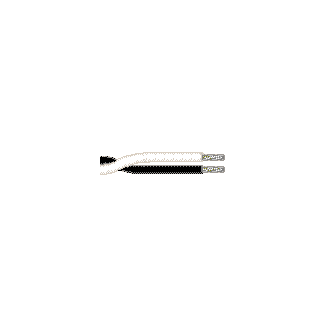

Product Number: 9497

Speaker Cable, 2 Conductor 16 AWG TC, Unshielded, CM

2 Conductor 16 AWG stranded (19x29) ETP high-conductivity tinned copper conductors, PVC insulation, cabled.

  • Availability:
    Global
  • Status:
    Active
9497
  • 9497
1 of 1

Specifications

Report An Error

Suitable Applications

Speaker Cable

Conductor

Element No. of Elements Size Stranding Material
Conductor(s) 2 16 19x29 TC - Tinned Copper (High Conductivity)

Insulation

Element Material Nom. Thickness Color Code
Conductor(s) PVC - Polyvinyl Chloride 0.023 in (0.58 mm) Black, Orange

Outer Shield

Material
No Shield

Outer Jacket

Nom. Diameter
0.21 in (5.3 mm)

Electricals

Element Nom. Conductor DCR Max. Current
Conductor(s) 4.27 Ohm/1000ft 7.1 Amps per Conductor at 25ºC

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature Operating
80°C -30°C To +80°C

Max. Pull Tension

84 lbs (38 kg)

Bulk Cable Weight

28 lbs/1000ft

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Flammability / Reaction to Fire

VW-1, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

AWM Compliance

AWM 1007

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Update and Revision

Revision Number: 0.452 Revision Date: 02-03-2025

Update and Revision

Revision Number: 0.452 Revision Date: 02-03-2025

Part Numbers

Item # Color Putup Type Length UPC Footnote
9497 0001000 None Reel 1,000 ft 612825254034 C
