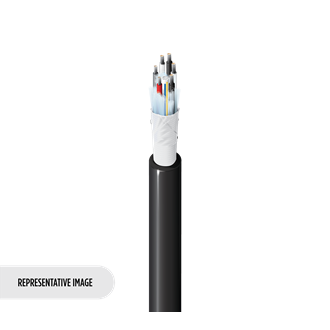

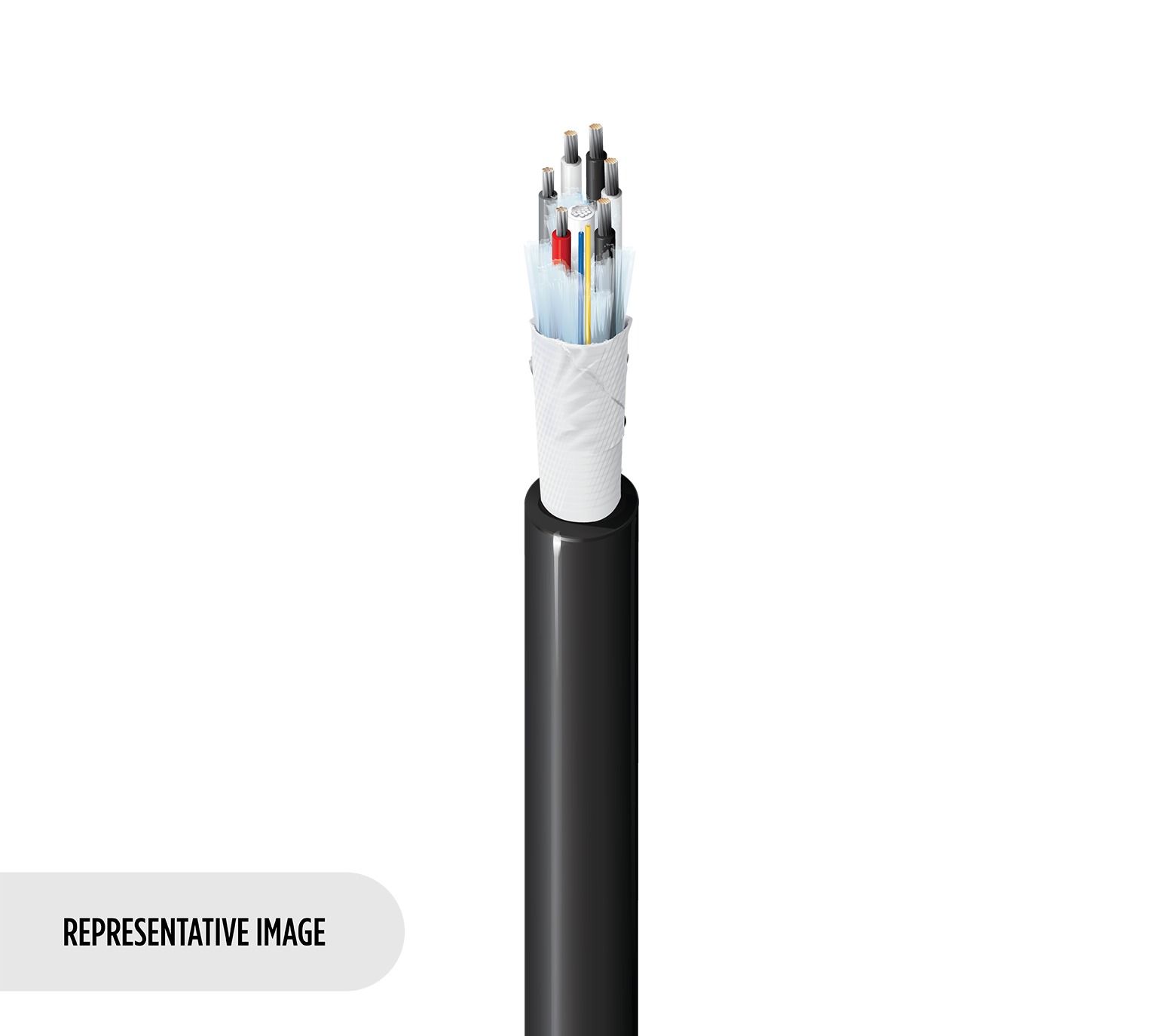

7804P

SMPTE 311M Cable, 2 Fiber, 2 Conductor 24 AWG, 4 Conductor 20 AWG, Flamarrest® Jacket

...
Industry Standard SMPTE 311M Cable, 2 Single Mode Fibers, 2 TC Conductors 24 AWG (7x32) and 4 TC Conductors 20 AWG (19x32), PVC Insulation, TC Braid Shield (95% coverage), Flamarrest® Jacket, Plenum
Get Product Alerts

Specifications
Product Overview

Suitable Applications

SMPTE 311

Multiconductor
Multiconductor Conductor and Insulation
Element No. of Conductors AWG Stranding Material Nominal Conductor DCR Insulation Material Insulation Nominal Diameter
24 AWG 2 24 7x32 TC - Tinned Copper 23.3 Ohm/1000ft FEP - Fluorinated Ethylene Propylene 0.038 in
20 AWG 4 20 19x32 TC - Tinned Copper 8.8 Ohm/1000ft FEP - Fluorinated Ethylene Propylene 0.054 in
Multiconductor Color Chart
Description Color
24 AWG Red
24 AWG Gray
20 AWG White
20 AWG White
20 AWG Black
20 AWG Black

Shielding

Braid

Nom Outer Shield DCR@Cond DCR1_CP_MC

3.5 Ohm/1000ft

Multiconductor UL Voltage
UL Description UL Voltage Rating
24 AWG 300 V RMS
20 AWG 300 V RMS
Fiber
Fiber Cable Construction
Fiber Type Fiber Count
OS2, G.657.A2 2

Fiber Color Coding

Yellow, Blue

Buffer Specification
Buffer Material Buffer Diameter
PVC - Polyvinyl Chloride 900 µm

Mode Field Diameter

9.2 µm

Wavelength@Optical SM1

1310 nm, 1550 nm

Max. Attenuation at 1310 nm

0.50 dB/km

Max. Attenuation at 1550 nm

0.50 dB/km

Overall Cable

Conductor Material:

Tinned Copper

Outer Jacket
Material Nominal Diameter Separator Material
PVC - Polyvinyl Chloride 0.259 in PVC - Polyvinyl Chloride
Overall Shielding
Layer 1 Type Material Coverage
Overall Braid TC - Tinned Copper 80 %

Jacket

PVC

Separator Material@OuterJacket1 1

PVC - Polyvinyl Chloride

Nominal Diameter@OuterJacket1 1_CP_OV

0.259 in

Operating Temperature Range

-20°C to 70°C

Installation Temperature Range

0°C to 70°C

Storage Temperature Range

-20°C to 70°C

Max. Pull Tension

1350 N

Bulk Cable Weight

62 lbs/1000ft

Applicable Standards & Environmental Programs

NEC/(UL) Compliance

CMP

CEC/C(UL) Compliance

CMP

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2003/11/EC (BFR)

Yes

Suitability

Suitability - Indoor

Yes

Flame Test

UL Flammability

UL910 Steiner Tunnel

CSA/C(UL) Flammability

FT6

Plenum/Non-Plenum

Plenum (Y/N)

Y

Non-Plenum Number

7804R, 7804WB

History

Update and Revision

Revision Number: 0.248 Revision Date: 11-27-2023

Part Numbers
Item # Color UPC Length
7804P 0101000 Black 612825189435 1,000 ft
7804P 0101640 Black 612825189442 1,640 ft
7804P 0103280 Black 612825189459 3,280 ft
7804P 010500 Black 612825436799 500 ft
7804P 010CUT Black
7804P 0105000 Black 612825189466 5,000 ft
7804P 0043280 Yellow 612825189428 3,280 ft
