Product Number: 87778

Audio, Control & Instrument, #22-6pr, FEP, Indiv. Foil, PVDF Jkt, CMP

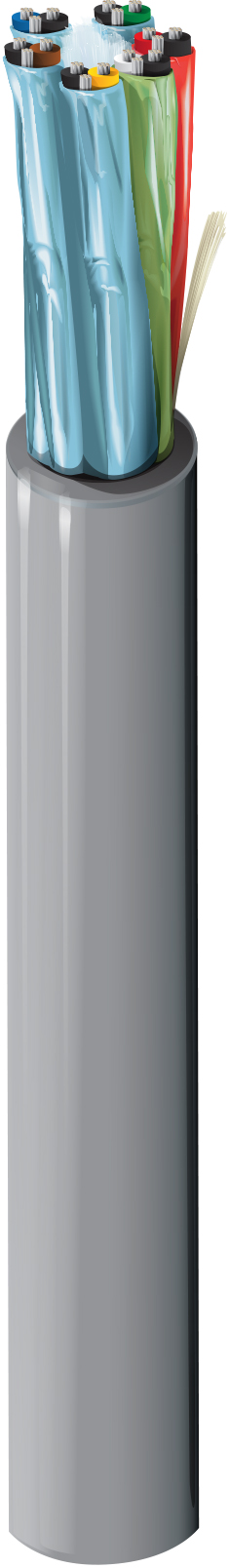

Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductor, FEP insulation, 6 twisted pairs individually shielded with Beldfoil® (100% coverage), overall jacket per table below, 22 AWG stranded tinned copper drain wire.

  • Availability:
    Global
  • Status:
    Active
87778
  • 87778
1 of 1

Specifications

Report An Error

Suitable Applications

extreme high temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Conductor

Element No. of Elements Size Stranding Material
Pair(s) 6 22 7x30 TC - Tinned Copper

Insulation

Material Nom. Thickness Nom. Insulation Diameter Color Code
FEP - Fluorinated Ethylene Propylene 0.01 in (0.25 mm) 0.049 in (1.2 mm) Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown

Inner Shield

Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (19x34) TC

Outer Jacket

Material Nom. Thickness Nom. Diameter
PVDF - Polyvinylidene Fluoride 0.014 in (0.36 mm) 0.309 in (7.85 mm)

Electricals

Nom. Conductor DCR Max. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
18.2 Ohm/1000ft 160 Ohm/km (49 Ohm/1000ft) 10.46 Ohm/1000ft (34.32 Ohm/km) 31 pF/ft (100 pF/m) 67 pF/ft (220 pF/m) 50 Ohm 69% 1.96 Amps per Conductor at 25ºC

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature Operating
150°C -20°C To +150°C

Bend Radius

Stationary Min. Installation Min.
3.09 in (78.5 mm) 3.09 in (78.5 mm)

Max. Pull Tension

109.2 lbs (49.53 kg)

Bulk Cable Weight

68 lbs/1000ft

Flammability / Reaction to Fire

NFPA 262 (UL910), FT6

NEC / UL Compliance

Article 800, CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

8778

Update and Revision

Revision Number: 0.456 Revision Date: 02-03-2025

Update and Revision

Revision Number: 0.456 Revision Date: 02-03-2025

Part Numbers

Item # Color UPC Footnote
87778 0021000 Red 612825216223 C
87778 002500 Red 612825216230 C
