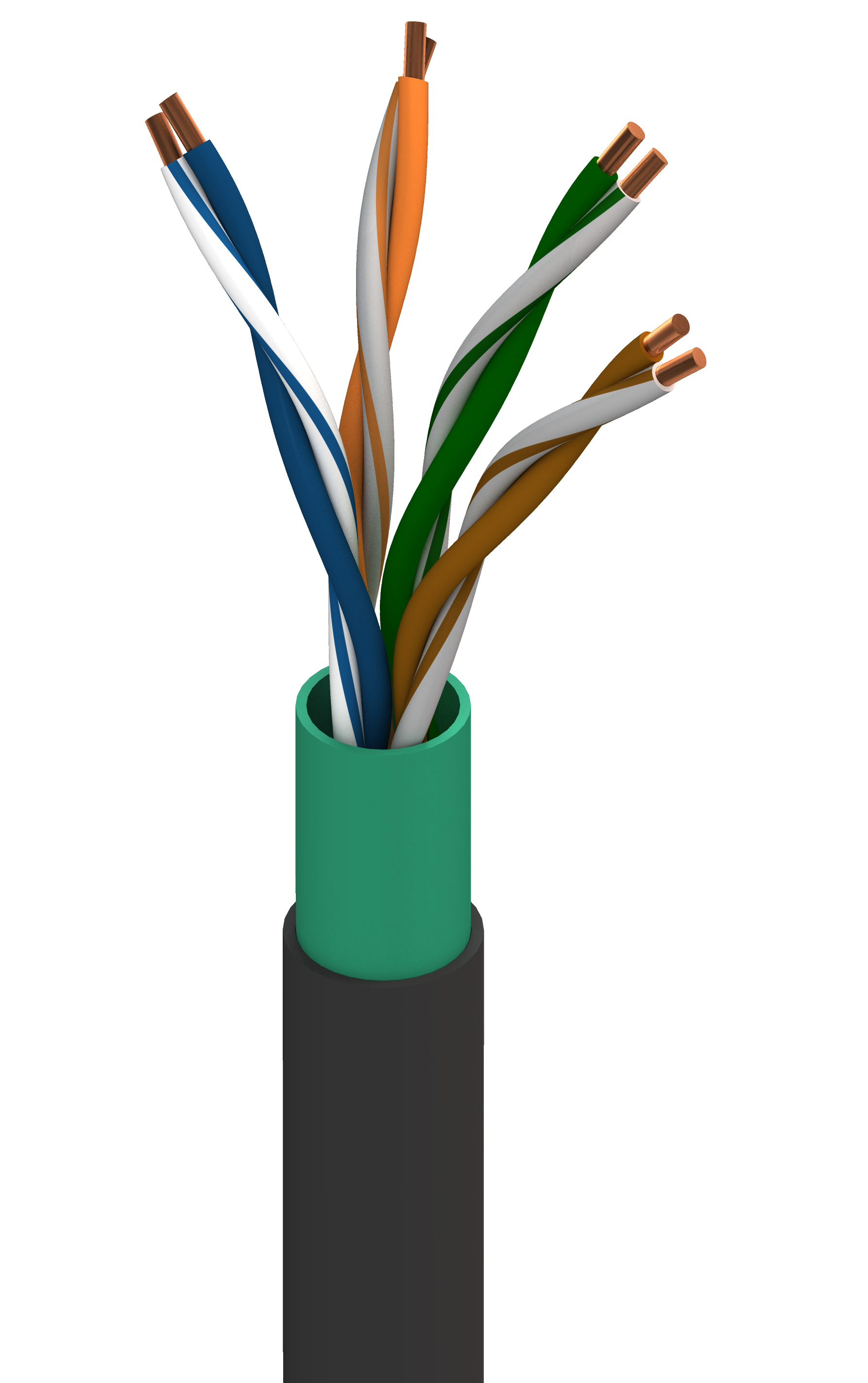

Product Number: 11700A2
DataTuff® 5e, 4 Bonded-Pr #24 Sol BC, PO Ins, PVC Jkt, PVC Jkt, SUN RES OIL RES II CMR
Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, PVC Inner Jacket, PVC Outer Jacket, SUN RES OIL RES II CMR
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
heavy oil environment (oil res I & II), outdoor, exposure to abrasion, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|
| 24 | Solid | BC - Bare Copper | 0.02 in | 4 |
|
Conductor Count |
8 |
|---|---|
|
Total Number of Pairs |
4 |
Insulation
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PO - Polyolefin | 0.035 in | 0.009 in |
|
Bonded-Pair |
Yes |
|---|
Color Chart
| Number | Color |
|---|---|
| 1 | White/Blue Stripe & Blue |
| 2 | White/Orange Stripe & Orange |
| 3 | White/Green Stripe & Green |
| 4 | White/Brown Stripe & Brown |
Inner Jacket
| Material | Nominal Diameter | Ripcord |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.2 in | Yes |
Outer Shield
| Material |
|---|
| No Shield |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.285 in | 0.035 in | Yes |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 9 Ohm/1000ft | 3 % |
Capacitance
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 66 pF/ft | 15 pF/ft |
Delay
| Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 510 ns/100m | 25 ns/100m | 70% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2 dB/100m | 65.3 dB | 65.3 dB | 63.3 dB | 63.3 dB | 63.8 dB | 60.8 dB | 20 dB | 100 ± 12 Ohm | 105 ± 10 Ohm |
| 4 MHz | 4 dB/100m | 56.3 dB | 56.3 dB | 52.3 dB | 52.3 dB | 51.7 dB | 48.7 dB | 23 dB | 100 ± 12 Ohm | 100 ± 10 |
| 8 MHz | 5.7 dB/100m | 51.8 dB | 51.8 dB | 46.1 dB | 46.1 dB | 45.7 dB | 42.7 dB | 24.5 dB | 100 ± 12 Ohm | 100 ± 10 |
| 10 MHz | 6.4 dB/100m | 50.3 dB | 50.3 dB | 43.9 dB | 43.9 dB | 43.8 dB | 40.8 dB | 25 dB | 100 ± 12 Ohm | 100 ± 10 |
| 16 MHz | 8.1 dB/100m | 47.3 dB | 47.3 dB | 39.1 dB | 39.1 dB | 39.7 dB | 36.7 dB | 25 dB | 100 ± 12 Ohm | 100 ± 10 |
| 20 MHz | 9.2 dB/100m | 45.8 dB | 45.8 dB | 35.2 dB | 35.2 dB | 37.7 dB | 34.7 dB | 25 dB | 100 ± 12 Ohm | 100 ± 10 |
| 25 MHz | 10.3 dB/100m | 44.3 dB | 44.3 dB | 34.1 dB | 34.1 dB | 35.8 dB | 32.8 dB | 24.3 dB | 100 ± 15 Ohm | 100 ± 10 |
| 31.25 MHz | 11.6 dB/100m | 42.9 dB | 42.9 dB | 31.3 dB | 31.3 dB | 33.9 dB | 30.9 dB | 23.6 dB | 100 ± 15 Ohm | 100 ± 10 |
| 62.5 MHz | 16.8 dB/100m | 38.4 dB | 38.4 dB | 21.6 dB | 21.6 dB | 27.8 dB | 24.8 dB | 21.5 dB | 100 ± 15 Ohm | 100 ± 10 |
| 100 MHz | 21.7 dB/100m | 35.3 dB | 35.3 dB | 17.1 dB | 17.1 dB | 23.8 dB | 20.8 dB | 20.1 dB | 100 ± 15 Ohm | |
| 155 MHz | 27.7 dB/100m | 32.5 dB | 32.5 dB | 4.7 dB | 4.7 dB | 19.9 dB | 16.9 dB | 19 dB | 100 ± 18 Ohm | |
| 200 MHz | 32 dB/100m | 30.8 dB | 30.8 dB | 3 dB | 3 dB | 17.7 dB | 14.7 dB | 19 dB | 100 ± 20 Ohm | |
| 250 MHz | 36.4 dB/100m | 29.3 dB | 29.3 dB | 0 dB | 0 dB | 15.8 dB | 12.8 dB | 18 dB | 100 ± 20 Ohm | |
| 300 MHz | 40.5 dB/100m | 28.2 dB | 28.2 dB | 0 dB | 0 dB | 14.2 dB | 11.2 dB | 18 dB | 100 ± 20 Ohm | |
| 310 MHz | 41.3 dB/100m | 27.9 dB | 27.9 dB | 13.9 dB | 10.9 dB | 18 dB | 100 ± 20 Ohm | |||
| 350 MHz | 44.3 dB/100m | 27.2 dB | 27.2 dB | 12.9 dB | 9.9 dB | 17 dB | 100 ± 22 Ohm |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
Installation Temperature Range |
+5°C To +75°C |
|---|---|
|
UL Temp Rating |
60°C |
|
Operating Temperature Range |
-10°C To +75°C |
Mechanical Characteristics
|
Bulk Cable Weight |
35 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
40 lbs |
|
Min. Bend Radius/Minor Axis |
0.29 in |
Standards
|
NEC/(UL) Compliance |
CMR |
|---|---|
|
CEC/C(UL) Compliance |
CMR |
|
ISO/IEC Compliance |
Other Standards |
|
CPR Euroclass |
Eca |
|
Data Category |
Category 5e |
|
TIA/EIA Compliance |
NEMA WC-63.1 Category 5e |
|
Third Party Performance Verification |
UL Verified Cat 5e |
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Oil Resistance |
Yes |
|
Suitability - Outdoor |
Yes |
|
Suitability - Sunlight Resistance |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL1666 Riser |
|---|---|
|
IEC Flammability |
IEC 60332-1-2 |
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
Product Notes
|
Notes |
US Patent #'s 5, 606, 151; 5, 734, 126. Operating temperatures are subject to length de-rating. Cable passes -10C Cold Bend per UL 1581. Outer Shield Separator Material: Polyester. |
|---|
History
|
Update and Revision |
Revision Number: 0.489 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.489 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 11700A2 0061000 | Blue | Reel | 1,000 ft | 612825107736 |
