Product Number: 1370P

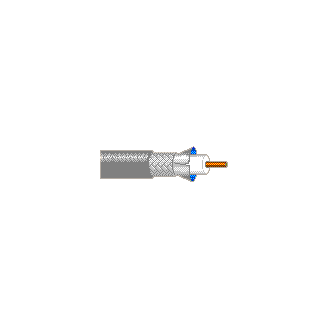

Serial Digital Coax, RG59 Type, 20 AWG Solid BC, Foil + 85% TC Braid, CMP

Video Cable, RG-59 Type 20 AWG solid bare copper, foam FEP insulation, Bonded Duofoil®+85% tinned copper braid, CMP Flamarrest® jacket.

  • Availability:
    Global
  • Status:
    Active
1370P
  • 1370P
1 of 1

Specifications

Expand All

Suitable Applications

Commercial Video

Conductor

AWG Stranding Material Nominal Diameter No. of Coax
20 Solid BC - Bare Copper 0.032 in 1

Conductor Count

1

Insulation

Material Material Trade Name Nominal Diameter
FEP - Fluorinated Ethylene Propylene (Foam) Teflon® 0.133 in

Outer Shield

Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
Braid 2 Tinned Copper (TC) 85%

Outer Jacket

Material Material Trade Name Nominal Diameter
PVC - Polyvinyl Chloride Flamarrest® 0.192 in

Conductor DCR

Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
10.1 Ohm/1000ft 4.1 Ohm/1000ft 4.1 Ohm/1000ft

Capacitance

Nom. Capacitance Conductor to Shield
16.1 pF/ft

Inductance

Nominal Inductance
0.097 µH/ft

Impedance

Nominal Characteristic Impedance
75 Ohm

Return Loss

Frequency [MHz] Minimum Return (RL)
5 - 3000 MHz 15 dB

High Frequency (Nominal/Typical)

Frequency [MHz] Nom. Insertion Loss
1 MHz 0.29 dB/100ft
3.58 MHz 0.62 dB/100ft
5 MHz 0.7 dB/100ft
7 MHz 0.82 dB/100ft
10 MHz 1.05 dB/100ft
67.5 MHz 2.2 dB/100ft
71.5 MHz 2.25 dB/100ft
100 MHz 2.7 dB/100ft
135 MHz 3.2 dB/100ft
143 MHz 3.25 dB/100ft
180 MHz 3.65 dB/100ft
270 MHz 4.55 dB/100ft
360 MHz 5.25 dB/100ft
540 MHz 6.4 dB/100ft
720 MHz 7.3 dB/100ft
750 MHz 7.5 dB/100ft
1000 MHz 9.4 dB/100ft
1500 MHz 12.8 dB/100ft
2250 MHz 17.5 dB/100ft
3000 MHz 21.9 dB/100ft

Delay

Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.21 ns/ft 84%

High Frequency

Min. RL (Return Loss) [dB]
15 dB

Voltage

UL Voltage Rating
300 V RMS

Electrical Characteristics Notes

Return Loss: Fixed bridge and termination

UL Temperature Rating

75°C

Operating Temperature Range

0°C To +75°C

Bulk Cable Weight

24 lbs/1000ft

Maximum Recommended Pulling Tension

37 lbs

Minimum Minor Axis Bend Radius

2 in

NEC/(UL) Compliance

CMP

CEC/C(UL) Compliance

CMP

RG Type

59

Environmental Space

Indoor - Plenum

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

MII Order #39 (China RoHS)

Yes

Suitability - Indoor

Yes

Suitability - Outdoor

No

UL Flammability

NFPA 262

UL voltage rating

300 V RMS

Plenum (Y/N)

Yes

Non-Plenum Number

1370R

Update and Revision

Revision Number: 0.331 Revision Date: 02-03-2025

Update and Revision

Revision Number: 0.331 Revision Date: 02-03-2025


Report An Error

Part Numbers

Item # Color Put-Up Type Length UPC
1370P 010500 Black Reel 500 ft 612825113317
1370P 0101000 Black Reel 1,000 ft 612825113300
1370P 006500 Blue, Light Reel 500 ft 612825113232
1370P 0061000 Blue, Light Reel 1,000 ft 612825113225
1370P 001500 Brown Reel 500 ft 612825113157
1370P 0011000 Brown Reel 1,000 ft 612825113140
1370P 008500 Gray Reel 500 ft 612825113270
1370P 0081000 Gray Reel 1,000 ft 612825113263
1370P N3U500 Green, Mil Reel 500 ft 612825113133
1370P N3U1000 Green, Mil Reel 1,000 ft 612825113126
1370P 003500 Orange Reel 500 ft 612825113195
1370P 0031000 Orange Reel 1,000 ft 612825113188
1370P 002500 Red Reel 500 ft 612825113171
1370P 0021000 Red Reel 1,000 ft 612825113164
1370P 007500 Violet Reel 500 ft 612825113256
1370P 0071000 Violet Reel 1,000 ft 612825113249
1370P 009500 White Reel 500 ft 612825113294
1370P 0091000 White Reel 1,000 ft 612825113287
1370P 004500 Yellow Reel 500 ft 612825113218
1370P 0041000 Yellow Reel 1,000 ft 612825113201
