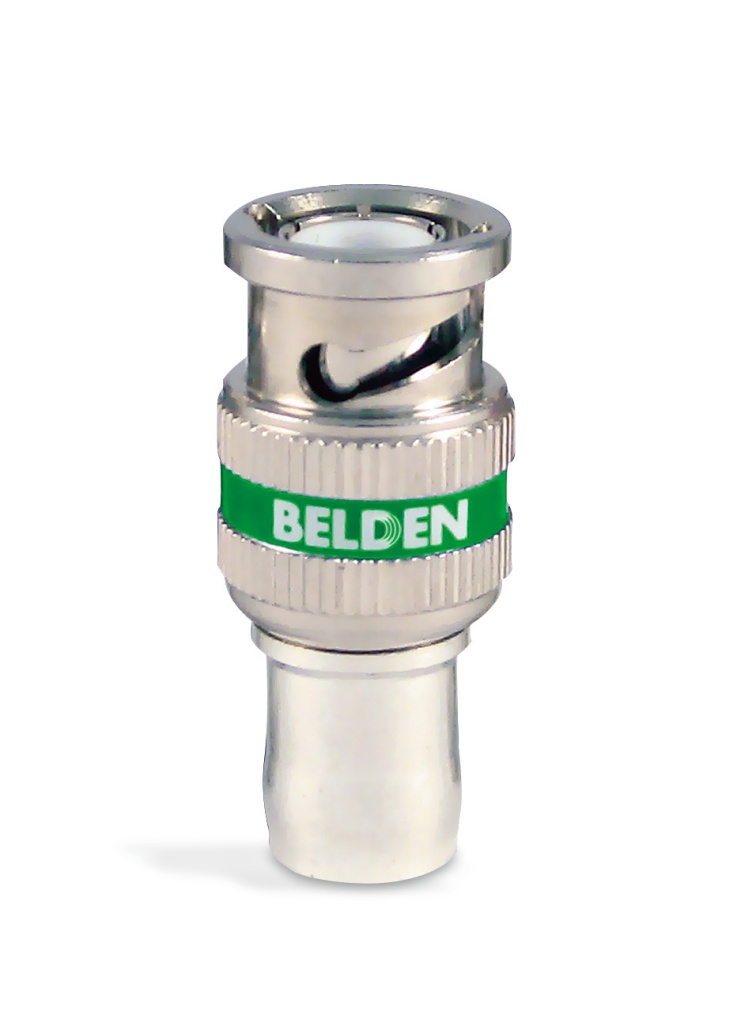

Product Number: 4694RBUHD1 B50

12 GHz BNC Compression Connector

12 GHz BNC Plug, One Piece RG-6 Compression Connector

  • Availability:
    Global
  • Status:
    Active
4694RBUHD1 B50
  • 4694RBUHD1 B50
1 of 1

Specifications

Expand All

Packaging

50 per package

Number of Pieces

1

Materials

Description Material
Nut Brass, Nickel Plated
Body Brass, Nickel Plated
Contact Brass, Gold Plated
Insulator PTFE

Impedance

Nominal Characteristic Impedance
75 Ohm

Return Loss

Frequency [MHz] Minimum Return (RL)
5-1485 15 dB
1485-3000 10 dB
3000-6000 7 dB
6000-12000 4 dB

Electrical Characteristics Notes

SMPTE 2082-1 Return Loss or better

Connector System Compatibility

Coax

Connector Interface Type

BNC

Gender

Male - plug

Connector Series Name

UHD

Color Band

Green

Locking

No

Tool Compatibility

CPLCRBC-BR (compression), PSA59/6 (strip)

Termination Type

Compression

Cable Center Conductor Diameter Limits

0.3740 - 0.0401 in

Cable Dielectric Diameter Limits

0.1771 - 0.1850 in

Cable Outer Jacket Diameter Limits

0.2657 - 0.2854 in

RG Type

6

Environmental Space

Indoor

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

Suitability - Indoor

Yes

Suitability - Outdoor

No

Plenum (Y/N)

No

Update and Revision

Revision Number: 0.39 Revision Date: 03-04-2023

Update and Revision

Revision Number: 0.39 Revision Date: 03-04-2023


Report An Error

Part Numbers

Item # Color UPC
4694RBUHD1 B50 Green 845671005554
