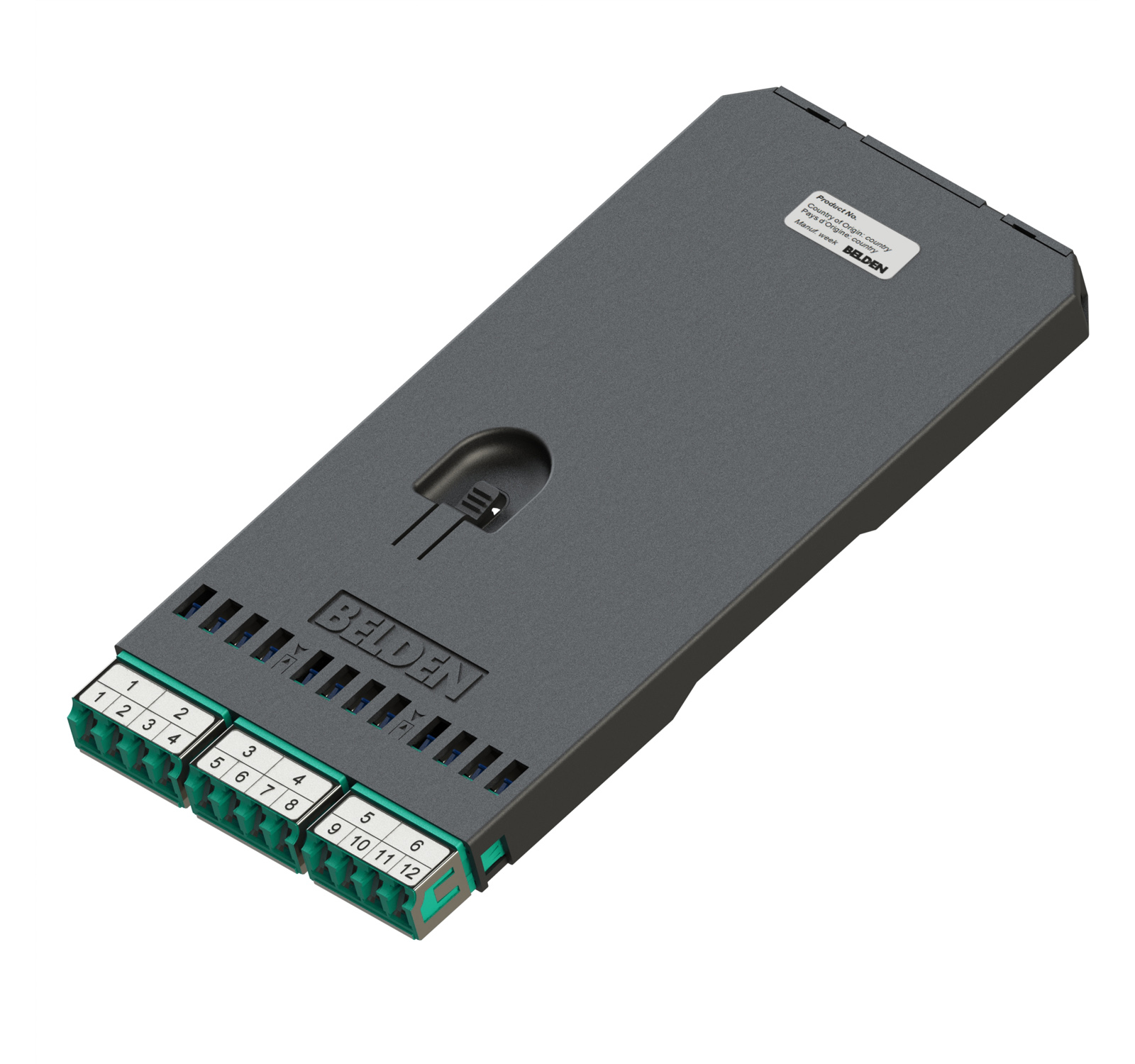

Product Number: FC3D06LDFP

FX DCX Splice Cassette, OM3, 06 Ports LC Duplex with 250µm Pigtails

FX DCX Splice Cassette, OM3, 06 Ports LC Duplex with 250µm Pigtails, Aqua Adapters

  • Availability:
    Global
  • Status:
    Active
FC3D06LDFP
  • FC3D06LDFP
1 of 1

Specifications

Report An Error

Environmental Space

Indoor

Suitable Applications

Optical Distribution Frame, Data Centers, Central Equipment Room

Fiber Cable Construction

Fiber Type
OM3

Weight

0.189 lbs

Height

0.500 in

Width

3.410 in

Length

7.200 in

Max Capacity

12 Fibers

Mechanical Tests

Description

Front Connection

Static

Operating Temperature Range

-10°C to +60°C

Storage Temperature Range

-10°C to +75°C

Materials

Description Material Color Type
Cassette Assembly Plastic - UL94V-0 Black
Front Connector Body Plastic - UL94V-0 Aqua LC Duplex
Adapter Sleeve Zirconia-Ceramic

Fiber Connector Performance

Connector Type Max. Insertion Loss Min. Return Loss
LC Duplex 0.25 dB -25 dB

MII Order #39 (China RoHS)

EUP 50

Included Parts

250µm color coded pigtails, splice chip, splice protection sleeve,micro splice protection sleeve, cable retention rubber: 2mm & 3mm

Related Parts

DCX Frames, Modules, and Patch Panels

Packaging

Individually packaged in a plastic shell, Shipped in cardboard box

Update and Revision

Revision Number: 0.195 Revision Date: 08-12-2024

Update and Revision

Revision Number: 0.195 Revision Date: 08-12-2024

Part Numbers

Item # Color Connector Type
FC3D06LDFP Aqua LC Duplex
