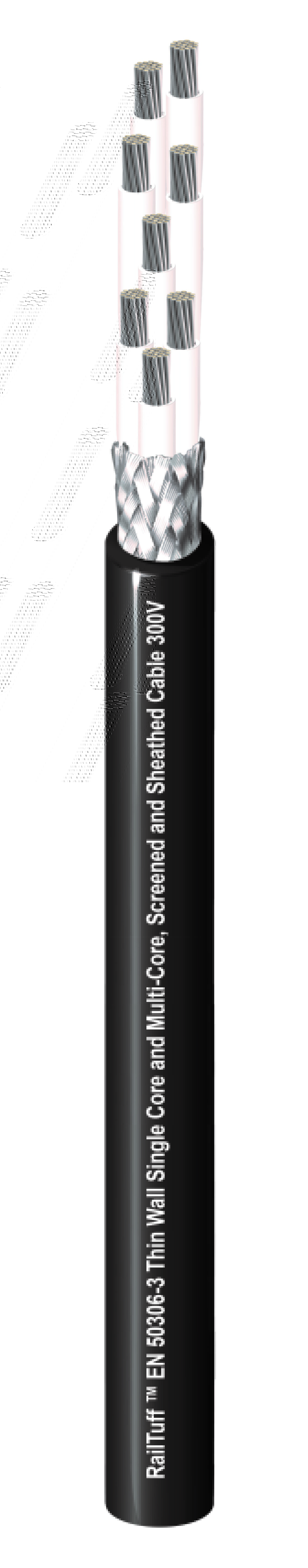

Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc
Operating Temperature Range
-40°C to +90°C
Long-term thermal endurance testing and demonstrated a lifetime of 20,000 hours at 120°C
Bulk Cable Weight
EU Directive 2011/65/EU (RoHS 2)
MII Order #39 (China RoHS)
Suitability - Hazardous Locations
Suitability - Indoor
Suitability - Non-Halogenated
Suitability - Outdoor
IEC 60332-1-2 and IEC 60332-2-25
Normal Fire Load : 729 kJ/m
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH
HCI+HBr ≤ 0.5%
IEC 61034-2 - Smoke Density Min. Transmittance
IRM 902 Mineral Oil Resistance Test
IRM 902 oil at (100±2)°C for 24h
N-Oxalic acid solution at (23±2)°C for 168h
N-Sodium hydroxide solution at 23°C for 168h
Toxicity of Jacket
Fluorine Content Test IEC60684-2
HF ≤ 0.1%
Update and Revision
Revision Number: 0.20 Revision Date: 04-08-2022
