Product Number: NH50105UFL

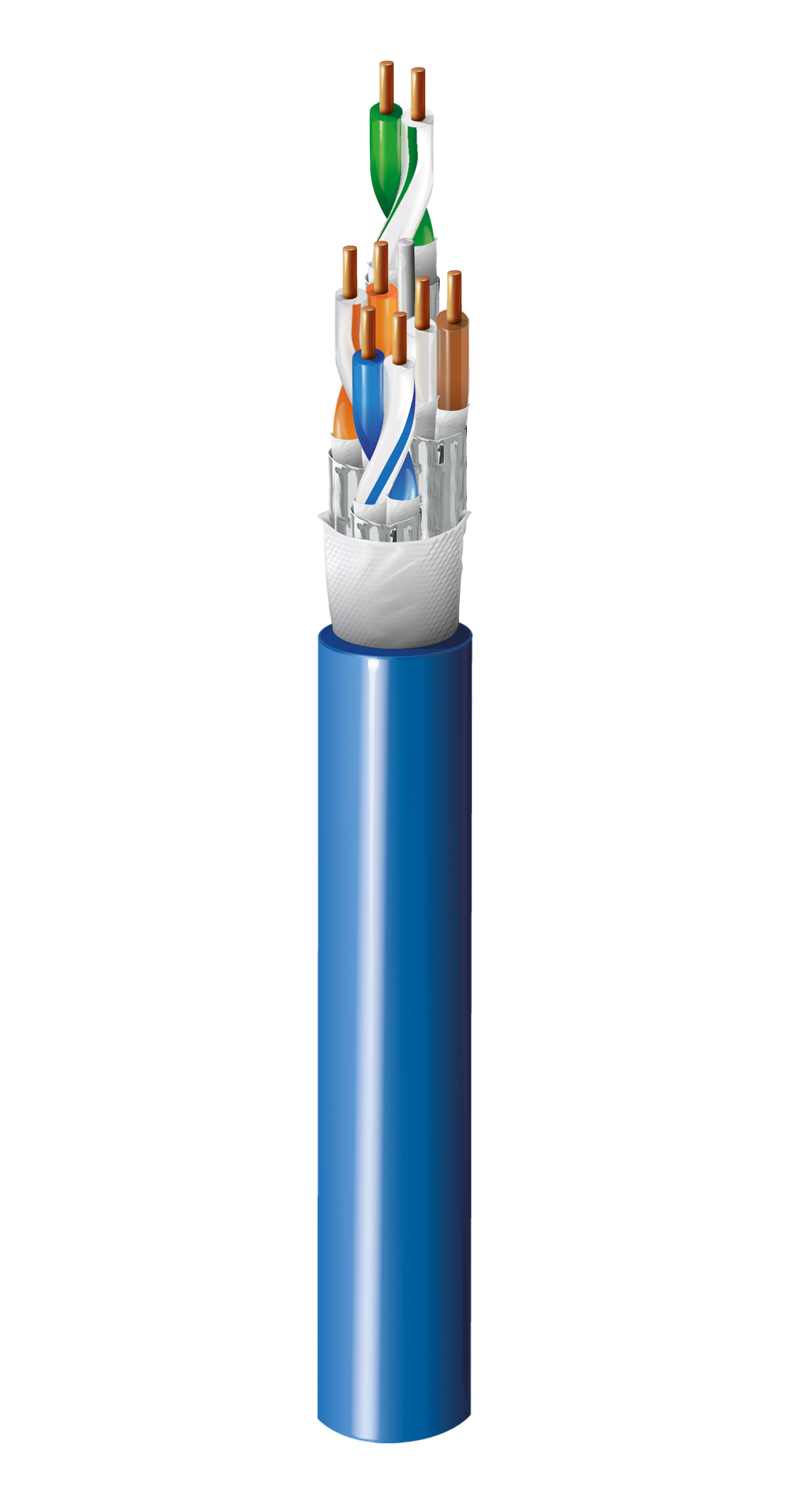

DataTuff™ Industrial Ethernet CAT5e 4x2x23AWG/1 U/FTP Fire Resistant

DataTuff™ Industrial Ethernet CAT5e 4x2x23AWG/1 U/FTP Fire Resistant

  • Availability:
    Global
  • Status:
    Active
NH50105UFL
  • NH50105UFL
1 of 1

Specifications

Expand All

Suitable Applications

This Category 5e Cable is a cable standard for Gigabit Ethernet, capable to continue transmitting data even when being directly attacked by fire.

Conductor

Size Stranding Material No. of Pairs
23 AWG Solid BC - Bare Copper 4

Insulation

Material Nom. Insulation Diameter Color Code Notes
PE - Polyethylene 1.17 mm (0.0461 in) Blue & White with Blue Strips, Orange & White with Orange Strips, Green & White with Green Strips, Brown & White with Brown Strips Fire Protection Barrier: Mica glass Tape(MGT)

Inner Shield

Shield Type Material Drainwire Type Notes
Tape Bi-Laminate (Alum+Poly) 26 AWG (Solid) TC All 4 Pairs laid up together & binded by Fire Protection Barrier: Mica Glass Tape(MGT)

Outer Jacket

Material
LSZH - Low Smoke Zero Halogen (Flame Retardant)

Overall Cable Diameter (Nominal)

10.80 mm (0.4252 in)

Electricals

Max. Conductor DCR Nom. Characteristic Impedance
73.2 Ohm/km @ 20 Deg. C 100 Ohm

Delay

Max. Delay Skew
45 ns/70m

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB]
4 4.1 dB/70m 56.3 63.3 51.8 48.8 23.0
10 6.5 dB/70m 50.3 57.3 43.8 40.8 25.0
20 9.3 dB/70m 45.8 52.8 37.8 34.8 25.0
25 10.4 dB/70m 44.3 51.3 35.8 32.8 24.3
31.25 11.7 dB/70m 42.9 49.9 33.9 30.9 23.6
62.5 17.0 dB/70m 38.4 45.4 27.9 24.9 21.5
100 22.0 dB/70m 35.3 42.3 23.8 20.8 20.1

Temperature

Operating
-40°C to + 60°C

Environmental Suitability

UV Resistance, Oil Resistance

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-22, IEC 60331-23, EN 50200 PH120

Data Category

Category 5e

TIA/EIA Compliance

ANSI/TIA 568.2-D

ISO/IEC Compliance

IEC 61156-5

European Halogen Free Standards

IEC 60754-1 - Halogen Amount = 0.5 %, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%

Other Standard Compliance(s)

BS6387 CWZ

Update and Revision

Revision Number: 0.89 Revision Date: 01-14-2026

Update and Revision

Revision Number: 0.89 Revision Date: 01-14-2026


Report An Error

Part Numbers

Item # Color Putup Type Length EAN
NH50105UFL-A305 Black Reel 305 m 8719605213273
