HF12G0.5P

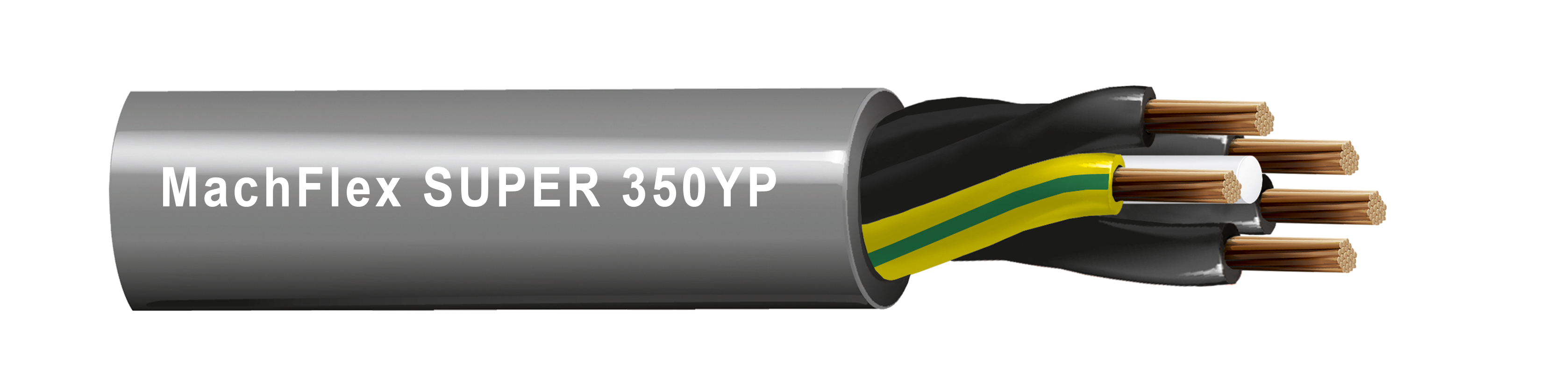

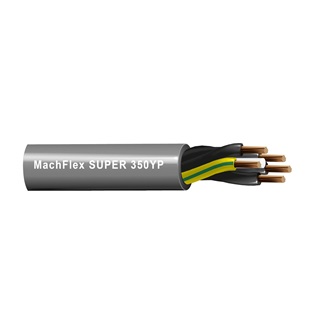

MachFlex™ High Flex Super 350YP Control Cable 11C+1G 0.5mm² Str BC, PVC Ins, PUR Jkt

...
MachFlex™ High Flex Super 350YP Control Cable 11 Conductor + 1 Ground 0.5mm² Stranded Bare Copper, PVC Insulation, PUR Jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more. PUR jacket ensure the cable with excellent abrasion resistance and flex cycles more than 5 million would be ideally applied to drag chain and the frequently moving fields.

Construction Details
Conductor
Element No. of Elements Size Stranding Stranding Class Material
Conductor(s) 11 0.5 mm² Stranded Class 6 BC - Bare Copper
Ground 1 0.5 mm² Stranded Class 6 BC - Bare Copper
Insulation
Element Material Color Code
Conductor(s) PVC - Polyvinyl Chloride Black #1, Black #2, Black #3, Black #4, Black #5, Black #6, Black #7, Black #8, Black #9, Black #10, Black #11
Ground PVC - Polyvinyl Chloride Yellow/Green
Outer Jacket
Material
PUR - Polyurethane

Overall Cable Diameter (Nominal)

9.7 mm (0.38 in)

Electrical Characteristics
Voltage
Voltage Rating
300/500 V (Max. Operating Voltage), 4000 V (Testing Voltage)
Mechanical Characteristics
Temperature
Operating Installation
-5°C to +70°C(Occasional movement) -40°C to +80°C(Fixed installation)

Table Notes

"Drag Chain Performance : 1MT Travel Distance, Travel Speed 2m/s, Acceleration 4m/s² ≥ 5,000,000 Cycles; 3m Travel Distance, Travel Speed 3m/s, Acceleration 10m/s² ≥ 1,000,000 Cycles; 5m Travel Distance, Travel Speed 3m/s, Acceleration 10m/s² ≥ 200,000 Cycles"

Bend Radius
Installation Min. Flexing Min.
38.8 mm (1.53 in) 72.75 mm (2.864 in)

Bulk Cable Weight

130 kg/km (87 lbs/1000ft)

Standards and Compliance

Environmental Suitability

Sunlight Resistance, UV Resistance, Oil Resistance

Flammability / Reaction to Fire

IEC 60332-1-2, DIN VDE 0482-332-1-2, DIN EN 60332-1-2

ISO/IEC Compliance

IEC 60228

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2)

Other Standard Compliance(s)

VDE 0285, EN 50525-2-51, VDE 0285-525-2-51, VDE 0295, EN 50363-3, EN 50363-10-2, BS 6360

Product Notes

Notes

General Reference Standards : VDE 0207-363-3, VDE 0207-363-10-2

History

Update and Revision

Revision Number: 0.47 Revision Date: 03-20-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Length
HF12G0.5P 010100M Black, RAL 9004 100 m
HF12G0.5P 010200M Black, RAL 9004 200 m
HF12G0.5P 010300M Black, RAL 9004 300 m
HF12G0.5P 006100M Blue 100 m
HF12G0.5P 006200M Blue 200 m
HF12G0.5P 006300M Blue 300 m
HF12G0.5P G8U100M Gray, RAL 7001 100 m
HF12G0.5P G8U200M Gray, RAL 7001 200 m
HF12G0.5P G8U300M Gray, RAL 7001 300 m
Show All Parts Number
Show Less
