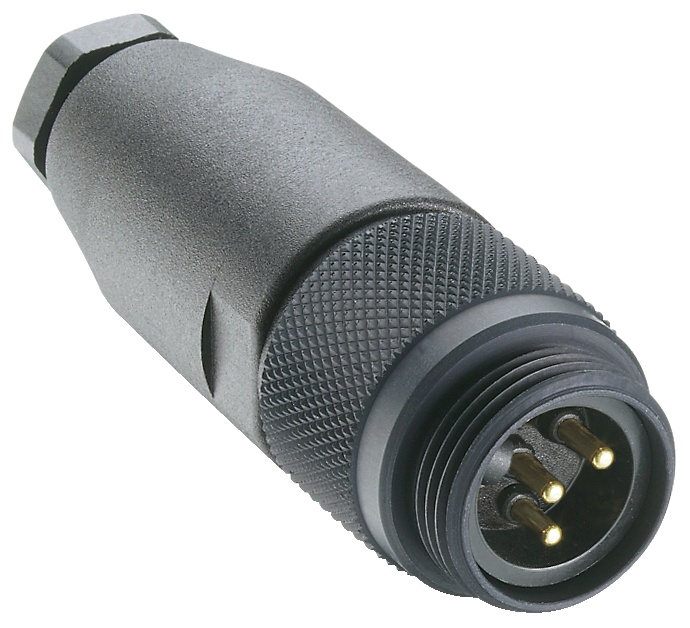

Power Connectors - RSC 30/13.5

7/8" - Field Attachable Male Straight Connector | #Contacts: 3 (2+PE) | 600 V / 12 A | Black Housing, Black PG13.5 Cable Gland | cURus

Specifications

Item Description	RSC 30/13,5

Product Family	Power Connector
Side 1 Product Sub Family	7/8" (2, 3, 4, 5, 6 contacts)
Connector Type	Field Attachable
Connector Sub Type	7/8"
Side 1 Type of Contact/Gender	Pin Contacts / Male
Connector Design	7/8" \| Male \| 3 Pole \| 0°
Number of Pins	3 (2+PE)
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Male Thread (coupling screw)
Voltage Rating	250 V (IEC Standard)
Rated Voltage (UL)	600 V
Current Rating	12 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Type of Connection	Screw terminal
Cable Gland	PG 13.5
Cross Section	max. 1.0 mm²
Suitable Cables	Ø 10.0-12.0 mm
Ambient Temperature (Operation)*	- 40 °C to + 90 °C
Protection Degree / IP Rating**	IP65, IP67
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Copper-Gold Alloy (Cu/Au)
Contact Bearer Material	Thermoplastic Polyurethane (TPU)
Contact Bearer Color	Black
Housing Material	Nylon 66 (PA 66)
Housing Color	Black
Cable Gland Material	Nylon 66 (PA 66)
Cable Gland Gasket	Nitrile Butadiene Rubber (NBR)
Cable Gland Color	Black
Attachment Material	Aluminum (Al)
Attachment Plating	Anodized black
O-Ring Material	Nitrile Butadiene Rubber (NBR)

UL-File	E104696
UL	cURus

RoHS Compliant	Compliant

Note Derating	* Notice derating
Protection Degree / IP Rating Note	IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note	Do not connect / disconnect under load.
