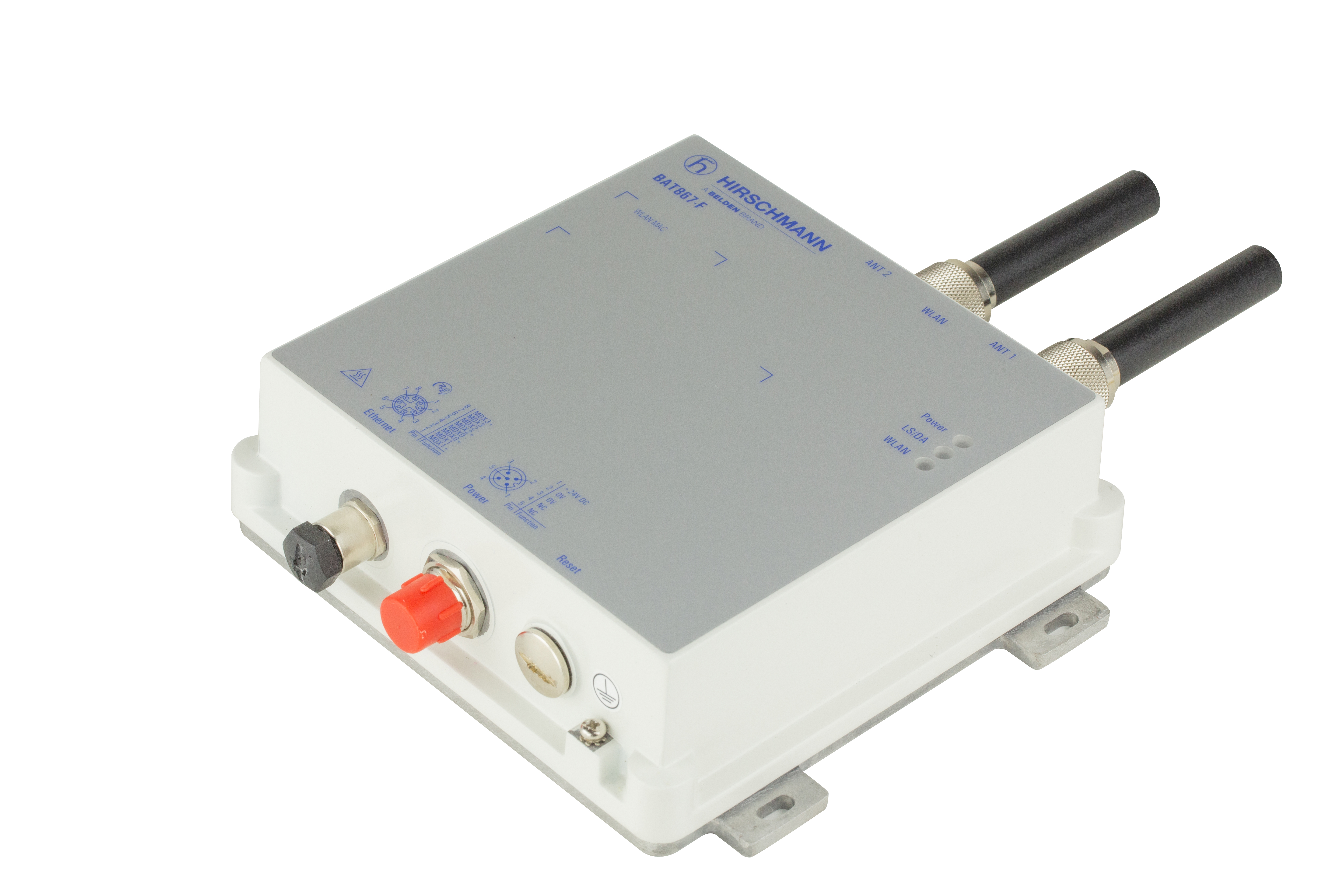

Product Number: BAT867-F North America f. Transportation
802.11ac IP65/IP67 WLAN Gateway, 2x2 MIMO, Dual Band, USA and Canada, Accessories included
802.11ac IP65/IP67 WLAN Gateway, 2x2 MIMO, Dual Band,, USA and Canada,, Accessories included,, Connectors included
-
Availability:
-
Global inventory:
Specifications
Product description
Name |
BAT867-F North America for Transportation |
---|---|
Port type and quantity |
1x Ethernet M12 X-Coded,, 1x Power M12 A-Coded |
Radio protocol |
IEEE 802.11a/b/g/n/ac WLAN interface as per IEEE 802.11ac , 802.11F (IAPP) as Access Point, 802.11r as Access Point |
Country certification |
Canada, USA |
More Interfaces
Local Management and Device Replacement |
Webinterface, HiDiscovery v1, Config files and scripts, Different config levels (factory, customer-specific, rollout, running) |
---|---|
Ethernet |
1x 10/100/1000Mbit/s |
Power Supply |
PoE PD via Ethernet M12 X-Coded,, 24VDC via M12 A-coded 5-pin,, field assembly connectors included,, field assembly connectors included |
Radio technology
Antenna connector |
2x N-Type Female Socket, requires N-Type Male Connectors on the Antenna |
---|---|
Frequency band |
Supports 2.4 GHz or 5 GHz: 2412-2472 MHz or 5180-5825 MHz (regulatory restrictions apply depending on the country of operation) |
Modulation |
OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM; Note: MCS numbering changed with 11ac. Supported rates with up to 2 streams: MCS0-MCS9. Channel widths: 20MHz, 40MHz and 80MHz |
Receiver sensitivity |
-95 dBm |
Additional radio features |
2x2 MIMO (configurable). Up to 2 streams (configurable). Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio Combining (MRC), Space Time Block Code (STBC) |
Power requirements
Operating Voltage |
PoE PD 802.3af Class 3,, 24 VDC (18-32 VDC) |
---|---|
Power consumption |
Maximum power consumption : 9 W |
Diagnostics features
Monitoring |
Syslog (UDP), SNMPv1/2c/3, (W)LANMonitor, Console, Email (SMTP) |
---|
Security features
Authentication |
User Management (local, RADIUS, TACACS+, fallback mode) |
---|---|
Encryption |
Open, WEP, 802.11i - WPA/WPA2 - Personal (PSK), 802.11i - WPA/WPA2 - Enterprise (802.1X: TLS, TTLS/PAP, TTLS/CHAP, TTLS/MSCHAP, TTLS/MSCHAPV2, TTLS/MD5, PEAP/MSCHAPV2) |
Stateful inspection firewall |
Static Firewall Layer2, Layer3, IPv4/IPv6 with Incoming and Forwarding Ruleset, Stealth mode |
Service
Other services |
DHCP Server (IPv4/IPv6, dynamic and static leases, IPv6 Prefix Delegation, DNS proxy) , DynDNS client , PPPoE , FTP server , E-Mail via SMTP |
---|
Software
Software features |
High performance operating system HiLCOS. Supports WLAN functions, routing, firewall, VLAN and redundancy. IPv4 and IPv6. |
---|---|
Operating system |
HiLCOS, stores two separate firmware versions for fallback |
Switching |
IGMP Snooping, VLAN (802.1Q), Switching over WLAN (Client Briding or P2P) |
Redundancy |
Redundant Network Coupling, VRRP v2 |
Management |
Web Interface (HTTPs), IPv4, IPv6, SNMP v1/v2/v3, Console (SSH, Telnet) |
Diagnostics |
System log, reboot log, signal strength, Trace (via Lantools or Console), LEDs, IPerf Server and Client |
Configuration |
Text file configuration and script, HTTP(s), Console (SSH, Telnet), SNMPv1/2c/3, LANConfig |
Time synchronisation |
SNTP Client, SNTP Server |
Routing |
Static unicast routing, RIP, Multinetting, IP Masquerading, Port Forwarding, Proxy ARP, 1-to-1 NAT, 1-to-N NAT, N-to-N NAT |
Dynamic routing |
VRRP v2, BGP, OSPF |
Management Software |
Industrial HiVision , LANConfig,, optional BAT Controller (WLC for AccessPoint mode) |
Ambient conditions
MTBF (Telecordia SR-332 Issue 3) @ 25°C |
2 046 413 h |
---|---|
Operating temperature |
-40-+70 °C |
Note |
Temperature of the surrounding air. |
Storage/transport temperature |
-40-+70 °C |
Relative humidity (non-condensing) |
10-95 % |
Protective paint on PCB |
Yes (conformal coating) |
Dimensions (WxHxD) |
172 mm x 150 mm x 50 mm |
Housing |
Metal |
Mounting |
Wall mounting |
Protection class |
IP65/67 (when using matching connectors) |
Approvals
Basis Standard |
FCC, IC |
---|---|
Safety of information technology equipment |
IEC/EN 62368-1:2014 + AC:2015 (formerly EN 60950-1), EN 62311:2008 |
Transportation |
EN 50121-4:2016 |
Radio |
ETSI EN 300 328:2019 V2.2.2 (2.4GHz), ETSI EN 301 893:2017 V2.1.1 (5GHz), ETSI EN 302 502:2017 V2.1.1 (5.8GHz) |
Reliability
Guarantee |
60 months (please refer to the terms of guarantee for detailed information) |
---|
WLAN Access Point
Access Point Functionality |
Yes (Free selection between Access Point, Access Client and Point-to-Point functionality separately in software). Operates as Managed Access Point in combination with a BAT Controller (WLC). PMK Caching, Preauthentication, OKC (Opportunistic Key Caching). |
---|---|
Number of SSIDs |
8 (In parallel for Access Point and P2P mode, exclusively in Client mode) |
WLAN Client
Client / STA Functionality |
Yes (Can be switched in software between AP, P2P, Client) |
---|
WLAN Typical Receive Sensitivity
802.11n, 2.4 GHz, 20 MHz, MCS0 |
-93 dBm |
---|---|
802.11n, 2.4 GHz, 20 MHz, MCS7 |
-76 dBm |
802.11n, 5 GHz, 20 MHz, MCS0 |
-93 dBm |
802.11n, 5 GHz, 20 MHz, MCS7 |
-73 dBm |
Scope of delivery and accessories
Accessories to Order Separately |
External antennas; Cables 2m, 5m, 15m;,; 2x Antenna (BAT-ANT-N-3AGN-IP67); 1x 50 Ω terminating resistor |
---|---|
Scope of delivery |
Device, safety instructions, dust protection caps,, outdoor safety instructions,, 2x Antenna (BAT-ANT-N-3AGN-IP67), 1x 50 Ω terminating resistor, Field attachable Gigabit Ethernet connector “X”-coded (942 083-001), M12 power supply plug (ELKA 5012 PG7),, Field attachable Gigabit Ethernet connector “X”-coded (942 083-001), M12 power supply plug (ELKA 5012 PG7) |
Further Instructions
Product Documentation |
https://www.doc.hirschmann.com |
---|---|
Certificates |
https://www.doc.hirschmann.com/certificates.html |
Software Download |
https://hirschmann-support.belden.com/en-US/downloads |
History
Update and Revision |
Revision Number: 0.76 Revision Date: 03-25-2025 |
---|
Information
Update and Revision |
Revision Number: 0.76 Revision Date: 03-25-2025 |
---|
Part Numbers
Item # | Type |
---|---|
942276300 | BAT867-FUSW99AW9J9BT699E999ZHXX.XX.XXXX |
