1213A

Instrument Medical Interconnect, #26-8c, TC, PVC, O/A Foil, PVC Jkt, CL2X

...

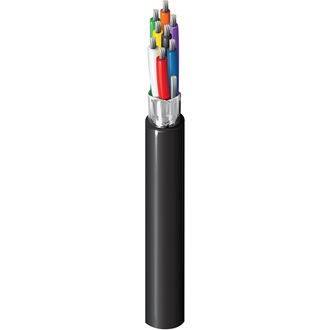

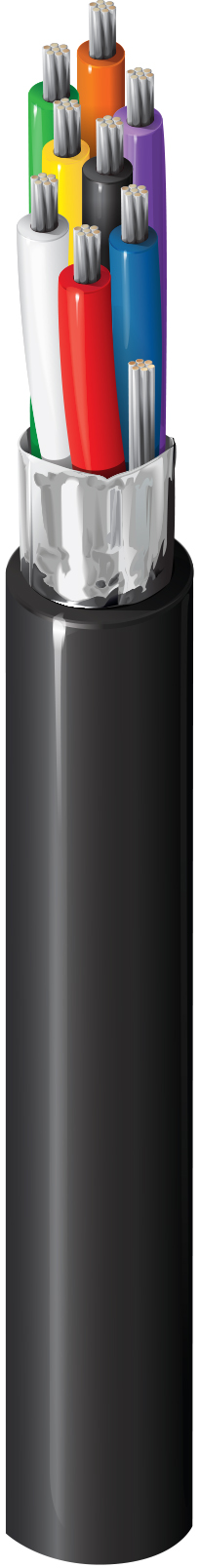

Computer, Instrument & Medical Interconnect, 26 AWG stranded (7x34) tinned copper conductors, PVC insulation, Duofoil® shield (100% coverage), 26 AWG stranded tinned copper drain wire, PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

for use with Molex SEMMCONN/AMP SDL connectors; computer communications; medical electronics interconnects; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 8 26 7x34 TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC - Polyvinyl Chloride 0.015 in (0.38 mm) 0.048 in (1.2 mm) Black, Purple, Red, Blue, Green, Orange, Yellow, White
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Tri-Laminate (Alum+Poly+Alum) 100% 26 AWG (7x34) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.0385 in (0.978 mm) 0.239 in (6.07 mm)
Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Velocity of Prop. Max. Current
44.4 Ohm/1000ft 26 pF/ft (85 pF/m) 60% 1.12 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
90°C -20°C To +90°C
Bend Radius
Stationary Min. Installation Min.
2.39 in (60.7 mm) 2.39 in (60.7 mm)

Max. Pull Tension

28.8 lbs (13.1 kg)

Bulk Cable Weight

21 lbs/1000ft

Standards and Compliance

Environmental Suitability

Sunlight Resistance, Burial

Flammability / Reaction to Fire

VW-1

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 725, CL2X

AWM Compliance

AWM 2464

European Directive Compliance

EU CE Mark

UK Regulation Compliance

UKCA Mark

Product Notes

Notes

AMP is a registered trademark of AMP, Inc.

History

Update and Revision

Revision Number: 0.503 Revision Date: 01-20-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC
1213A 010500 Black Reel 500 ft 612825108672
1213A 0101000 Black Reel 1,000 ft 612825108665
