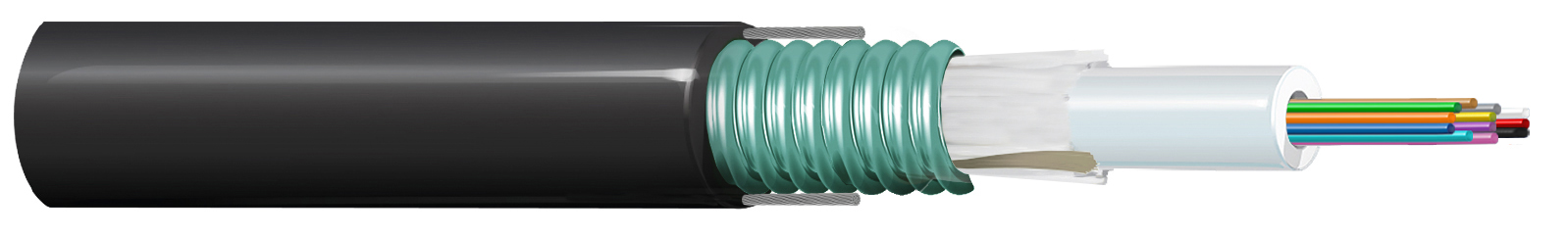

Product Number: BAGU62QA012BK

Outdoor OFC CLT (jelly filled) : GLASS YARNS+CST+Single PE Jacket with Steel Wire Embeded, 12F, OM1, Anti-Rodent & UV

Outdoor optical fiber Central Loose Tube (jelly filled) cable with glass yarns as flexible non-metallic strength member, Corrugated steel tape armor and Single Polyethylene Jacket (black) with two steel wires embeded, 12 Fibers, OM1, Anti-rodent & UV resistance

  • Availability:
    Asia Pacific
  • Global inventory:
    Available
BAGU62QA012BK
  • BAGU62QA012BK
1 of 1

Specifications

Report An Error

Suitable Applications

For outdoor use in structured (data) wiring systems such as industrial backbone, campus backbone cabling. For outdoor use in networks for industrial, telecom, cable TV and/or broadcast. Easy to install in ducts, tunnels and trenches and/or tubes. Suitable for Direct Burial.

Fiber Type

OM1

Fiber Core Diameter

125 µm

Buffer Material

PBT – Polybutylene Terephthalate

Fiber Count

12

Fiber Color Coding

TIA-598-D

Subunit Waterblocking

Gel Filled

Strength Member

Glass Yarns

Number of Ripcords

2

Armor Type and Material

CST - Corrugated Steel Tape

Jacket Material

PE - Polyethylene

Nom. Diameter

9.2 mm (0.36 in)

Color

Black

Optical Characteristics

Wavelength 850 nm 1300 nm
Max. Attenuation 3.5 dB/km 1.5 dB/km

Min. Bend Radius During Installation

20 x OD

Max. Tensile Strength During Installation

2000 N, Passes IEC 60794-1

Max. Tensile Strength During Operation

600 N, Passes IEC 60794-1

Crush Resistance

3000 N/100mm, Passes IEC 60794-1

Bulk Cable Weight

85 kg/km (57 lbs/1000ft)

Operating Temperature Range

- 40°C To + 70°C

Environmental Suitability

OutdoorAerialDirect Burial, Outdoor, Sunlight Resistance, UV Resistance, Burial

ISO/IEC Compliance

IEC 60793-1-1IEC 60794-1-1

European Directive Compliance

EU Directive 2011/65/EU (RoHS 2)

Update and Revision

Revision Number: 0.21 Revision Date: 02-13-2025

Update and Revision

Revision Number: 0.21 Revision Date: 02-13-2025
