ACIC 300V, 1 Tri #16 Str TC, PVC Ins E1, OS, PVC Jkt, AIA Armor, PVC Jkt, 105C Dry 75C Wet CSA HLBCD SUN RES -40C

...

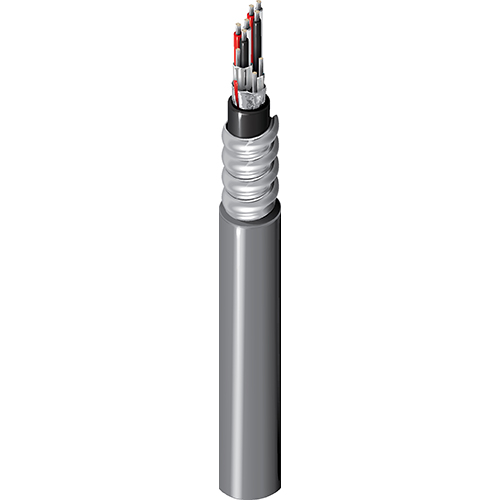

Canadian Instrumentation Cable TC-ACIC 300V, 1 Triad 16AWG (7x24) Tinned Copper, PVC Insulation E1 Color Code, Overall Beldfoil® Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, 105C Dry 75C Wet CSA HLBCD SUN RES -40C
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error

Put-Up Type

Reel

Product Overview

Suitable Applications

Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Triad(s) 1 16 AWG 7x24 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Triad(s) PVC - Polyvinyl Chloride 0.025 in (0.64 mm) 0.108 in (2.74 mm) Black, White, Red
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 18 AWG (7x26) TC
Inner Jacket
Material Nom. Thickness Nom. Diameter Ripcord Color
PVC - Polyvinyl Chloride 0.047 in (1.2 mm) 0.329 in (8.36 mm) Yes Black
Armor
Armor Type & Material Armor Thickness Diameter Over Armor
AIA - Aluminum Interlock Armor 0.025 in (0.64 mm) 0.509 in (12.9 mm)
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.052 in (1.3 mm) 0.613 in Yes

Overall Cable Diameter (Nominal)

0.613 in

Electrical Characteristics
Electricals
Nom. Conductor DCR Max. Current
4.2 Ohm/1000ft 6.4 Amps per Conductor at 30ºC
Voltage
Voltage Rating
300 V (CSA ACIC)
Mechanical Characteristics
Temperature
Operating Installation
Dry: -40°C to +105°C, Wet: -40°C to +75°C -25°C To +105
Bend Radius
Stationary Min. Installation Min.
7.35 in (187 mm) 7.35 in

Max. Pull Tension

200 lbs (91 kg)

Bulk Cable Weight

183 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Outdoor, Sunlight Resistance, UV Resistance

CEC / C(UL) Compliance

HLABCD, ACIC

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.357 Revision Date: 01-04-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Putup Type UPC
23507 06010000 Reel 612825322399
23507 0602500 Reel 612825322405
23507 0602500 Reel 612825322405
23507 0605000 Reel 612825322412
23507 0605000 Reel 612825322412
23507 0105000 Reel
