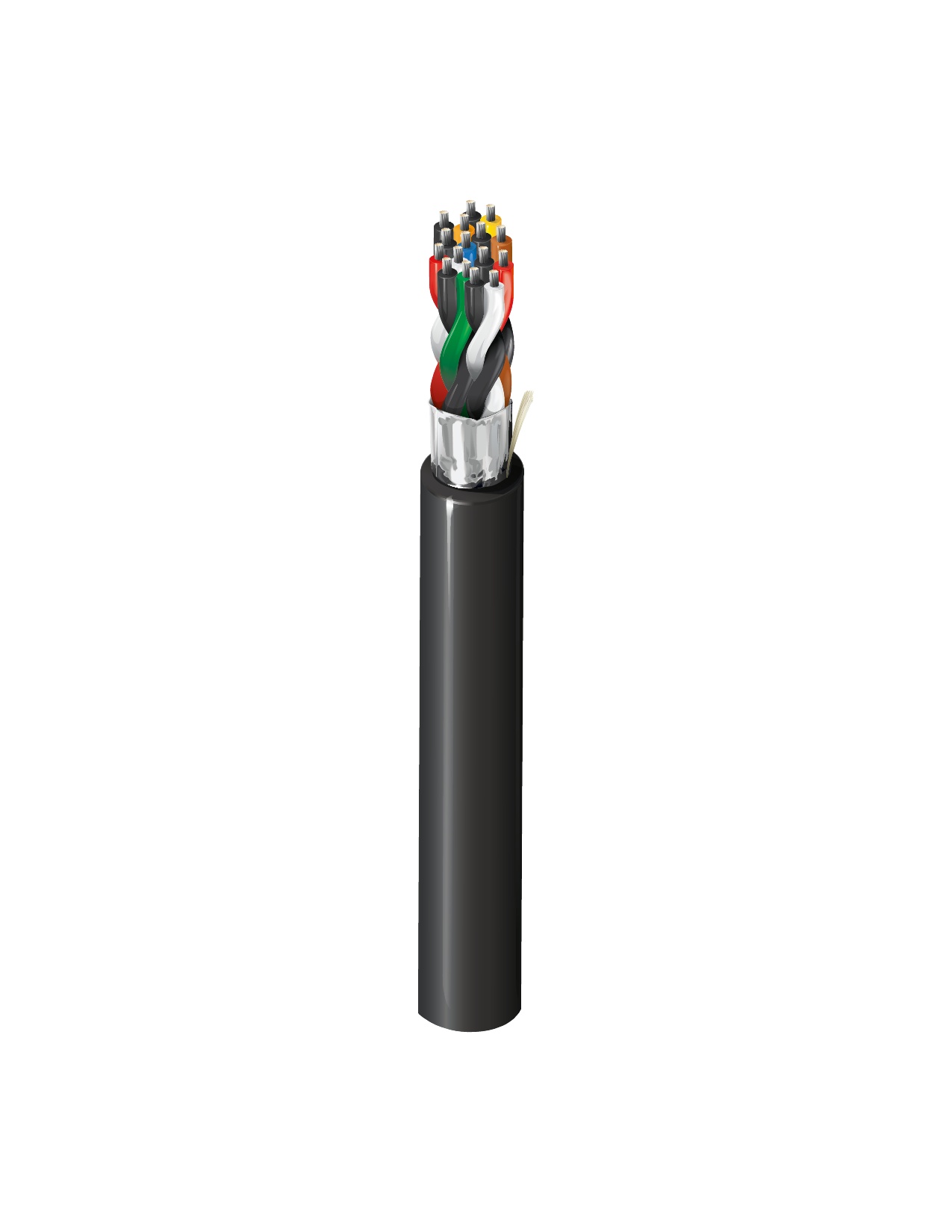

DEDN168F

Indoor/Outdoor Digital Electricity™, 8 Pr #16 Str TC, O/A Foil, PVC Jkt, CL4, CMG, Wet Locations

...
Indoor/Outdoor Digital Electricity™ Copper Cable, 8 Twisted Pair 16 AWG (7 x 24) Stranded Tinned Copper, PVC Insulation, Overall foil shield, Black PVC Jacket, Ripcord, CL4, CMG, Wet Locations, 2000 Ft Reel
Get Product Alerts

Specifications
Product Overview

Suitable Applications

Digital Electricity™, Fault Managed Power Systems (FMPS), remote powering, wet locations, in-conduit

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
16 7x24 TC - Tinned Copper 8

Total Number of Pairs

8

Insulation
Material Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.017 in
Color Chart
Number Color
1 Black & Red
2 Black & White
3 Black & Green
4 Black & Blue
5 Black & Yellow
6 Black & Brown
7 Black & Orange
8 Red & White
Outer Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 18
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.593 in 0.043 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
4.55 Ohm/1000ft 4.7 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
29.25 pF/ft 52.75 pF/ft
Current
Max. Recommended Current [A]
5.5 Amps per Conductor at 25ºC (35°C Temperature Rise)
Voltage
UL Voltage Rating
450 V RMS
Temperature Range

UL Temp Rating

105°C

Operating Temperature Range

-30°C To +105°C

Mechanical Characteristics

Bulk Cable Weight

220 lbs/1000ft

Max. Pull Tension

570 lbs

Min. Bend Radius/Minor Axis

5.85 in

Standards

NEC Articles

Article 725, Article 800

NEC/(UL) Compliance

CL4, CL3, CMG

CEC/C(UL) Compliance

CMG

UL AWM Style Compliance

AWM 2464

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

EU REACH SVHC Compliance (yyyy-mm-dd)

2020-01-28

Suitability

Suitability - Indoor

Yes

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

CSA/C(UL) Flammability

FT4

UL Flammability

UL 1685 FT4 Loading

IEEE Flammability

1202

History

Update and Revision

Revision Number: 0.117 Revision Date: 12-22-2023

Part Numbers
Item # Color Length
DEDN168F Black 2,000 ft
