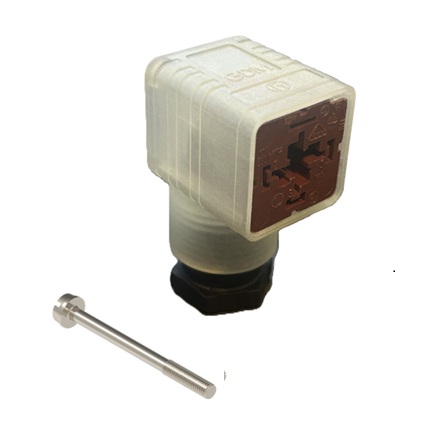

Valve Connectors - GDM 2009 110 NEON V220 MA2A ME

Specifications

Availability	Obsolete with alternative
Discontinuation Announcement Date	2025-11-12
Last Order Date	2025-11-12
Last Delivery Date	2025-11-12

Product Family	Valve Connectors
Side 1 Product Sub Family	GDM Legacy
Connector Type	Field Attachable
Connector Sub Type	Form A
Side 1 Type of Contact/Gender	Socket Contacts / Female
Connector Design	Form A \| Female \| 2+PE \| 90°
Number of Pins	2+PE (PE across cable outlet)
Coding, Side 1	A
Shielding Type	Unshielded
Attachment Type	Central Screw, M 3 x 35
Replaced by	ID: 934888035 Name: GDM21F6-V21-10D
Voltage Rating	120 V
Operating Voltage	110 V AC/DC
Current Rating	10 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 50
Type of Connection	Screw terminal
Cable Gland	PG9
Thread Size	PG 9
Cross Section	0.25 - 1.5 mm²
Suitable Cables	Ø 4.5 - 7.5 mm
Ambient Temperature (Operation)*	-25°C to +80°C
Protection Degree / IP Rating**	IP65
Design Standard	DIN EN 175301-803-A, ISO 4400
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance	DIN EN 60664-1 (2008/01); VDE 0110-1
Overvoltage Category	III acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	Brass (CuZn)
Side 1 Contact Plating	Copper-Tin Alloy (Cu/Sn)
Contact Bearer Material	Glass-Fiber Reinforced Polyamide (PA GF)
Contact Bearer Color	Brown
Flammability Class (Contact Bearer)	UL 94 HB
Housing Material	Glass-Fiber Reinforced Polyamide (PA GF)
Housing Color	Translucent
Flammability Class (Housing)	UL 94 HB
Cable Gland Material	Glass-Fiber Reinforced Polyamide (PA GF)
Cable Gland Gasket	Nitrile Butadiene Rubber (NBR), 269604000
Cable Gland Color	Black
Flammability Class (Cable Gland)	UL 94 HB
Attachment Material	Steel Fastener (4.8 , Fe/Zn B)
Gasket Material	Sold separately

Protection Circuitry	Varistor (MOV) & Neon Lamp
Function Indicator	Glow Lamp
Protective Circuit	Varistor (MOV) V220MA2A
Fastening Torque (Contact Screw)	(50-60) Ncm
Fastening Torque (Cable Gland)	(250-375) Ncm
Fastening Torque (Attachment)	(50-60) Ncm
Mount Type	central screw M 3x35

REACH	Compliant
RoHS Compliant	Compliant

Note Derating	Notice derating
Protection Degree / IP Rating Note	Protection Degree and IP Rating per test standard IEC 60529 using a Hirschmann / Lumberg Automation mating product

Note Derating	Notice derating
Protection Degree / IP Rating Note	Protection Degree and IP Rating per test standard IEC 60529 using a Hirschmann / Lumberg Automation mating product

Item #	Item Description	Central Screw	Gasket	Packaging	Replaced By
927801143	DISCONTINUED R/B 934888035	1 - Central Screw Steel, combi head	0 - Sold Separately	D - Collect packaging 50 pieces, assembled	ID: 934888035 Name: GDM21F6-V21-10D
