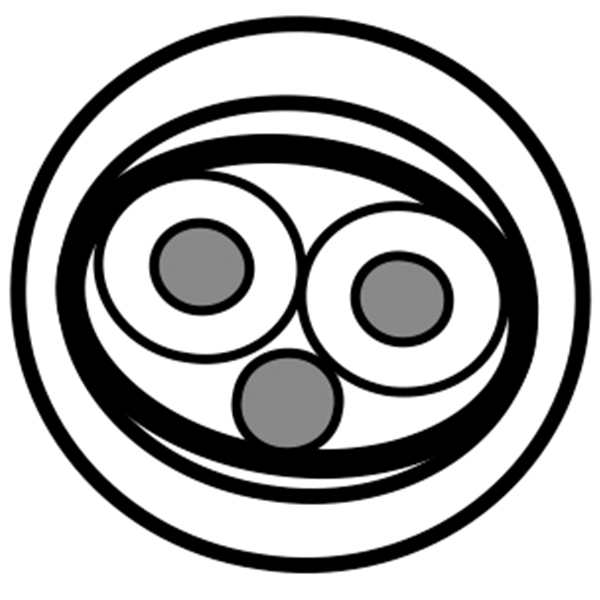

1508E

AUDIO ANALOG 1 PAIR, 24AWG, ISTP, PVC

...
ANALOG AUDIO 1 PAIR, 24AWG/0.22mm², ISTP, PVC
Get Product Alerts

Specifications
Product Overview

Suitable Applications

1 pair 24AWG cable for analogue audio

Physical Characteristics (Overall)
Conductor
AWG Stranding Material
24 7x32 TC - Tinned Copper

Conductor Count

2

Total Number of Pairs

1

Insulation
Material Nominal Diameter Diameter +/- Tolerance
PE - Polyethylene 1.02 mm 0.05 mm
Color Chart
Color
Red
Black
Outer Shield
Type Material Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D Drainwire Position
Tape Bi-Laminate (Alum+Poly) 100% TC - Tinned Copper 24 AWG 7x0.20 mm Under shielding foil
Outer Jacket
Material Nominal Diameter
PVC - Polyvinyl Chloride 3.3 mm
Electrical Characteristics
Conductor DCR
Max. Conductor DCR Nominal Outer Shield DCR
78 Ohm/km 52 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Shield
100 pF/m 190 pF/m
Inductance
Nominal Inductance
0.6 µH/m
Temperature Range

Other Temp Range

-20-+70 °C

Mechanical Characteristics

Max. Pull Tension

70 N

Min Bend Radius (W/o Pulling Strength)

33 mm

Applicable Environmental and Other Programs

Environmental Space

Indoor

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2

History

Update and Revision

Revision Number: 0.129 Revision Date: 02-15-2024

Part Numbers
Item # Color Put-Up Type Length EAN
1508E.00500 Black Reel 500 m 8719605001603
