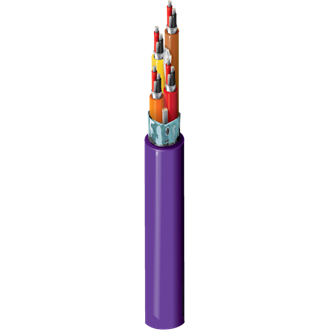

Product Number: 1803F

Audio Snake Cable, #24-4pr, TC, Indiv. Shielded, CMG

Digital Audio Snake Cable, CMG-Rated, 4-24 AWG tinned copper pairs, Datalene® insulation, individually shielded with Beldfoil, numbered/color-coded PVC jackets, flexible PVC jacket

  • Availability:
    Global
  • Status:
    Active
1803F
  • 1803F
1 of 1

Specifications

Expand All

Suitable Applications

Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Conductor

Size Stranding Material
24 7x32 TC - Tinned Copper

Insulation

Material Nom. Insulation Diameter Color Code Notes
PE - Polyethylene (Foam) 0.068 in (1.7 mm) Red & Black HDPE

Inner Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%

Inner Shield Table Notes

Indiv. Foil tapes bonded to inner jacket

Outer Shield

Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%

Inner Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride 0.167 in (4.24 mm)

Outer Jacket

Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.488 in Yes

Electricals

Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Inductance Nom. Velocity of Prop. Max. Current
23.7 Ohm/1000ft (77.8 Ohm/km) 12 pF/ft (39 pF/m) 26 pF/ft (85 pF/m) 110 Ohm 0.18 µH/ft (0.59 µH/m) 76% 2.75 Amps per Conductor at 25ºC

High Frequency (Nominal/Typical)

Nom. Insertion Loss (Attenuation) [dB/100ft]
0.69
0.93
0.96
1.07
1.19
1.21
1.31
1.41
1.45
1.57
1.76
1.83
2.01
2.24
2.3
3.08

Voltage

UL Voltage Rating
300 V RMS

Temperature

UL Temperature Operating
60°C -30°C To +60°C

Max. Pull Tension

82.5 lbs (37.4 kg)

Bulk Cable Weight

100 lbs/1000ft (150 kg/km)

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Flammability / Reaction to Fire

UL1685 FT4 Loading, FT4, 1202, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

CMG

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

Other Standard Compliance(s)

AES/EBU

Notes

Pair jackets and shields are bonded so both strip simultaneously with automatic stripping equipment. Datalene« insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

Update and Revision

Revision Number: 0.497 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.497 Revision Date: 09-07-2025

Footnote

C - CRATE REEL PUT-UP.

Report An Error

Part Numbers

Item # Color Putup Type Length UPC Footnote
1803F B591000 Black, Matte Reel 1,000 ft 612825123101
1803F Z4B5000 Violet Reel 5,000 ft 612825431213
1803F Z4B500 Violet Z4B Reel 500 ft 612825123125 C
1803F Z4B1000 Violet Z4B Reel 1,000 ft 612825123118 C
