Product Number: 2221

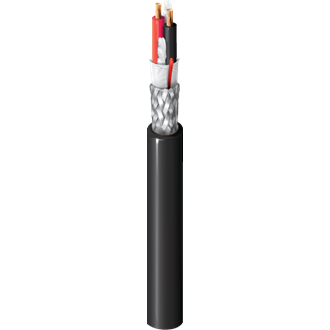

Audio Cable, 2 Conductor 26 AWG, TC

26 AWG stranded (30x40) BC conductors cabled with fillers, Datalene® insulation, conductors cabled with fillers, TC "French Braid" Shield (95% coverage), Belflex PVC jacket.

  • Availability:
    Global
  • Status:
    Active
2221
  • 2221
1 of 1

Specifications

Expand All

Suitable Applications

Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Conductor

Size Stranding Material No. of Pairs
26 30x40 BC - Bare Copper 1

Insulation

Material Nom. Insulation Diameter Color Code Notes
PE - Polyethylene (Foam) 0.050 in (1.3 mm) Red & Black HDPE

Outer Shield

Shield Type Material Coverage
French Braid Tinned Copper (TC) 95%

Outer Jacket

Material Material Trade Name Nom. Diameter
PVC - Polyvinyl Chloride Belflex® 0.17 in

Electricals

Nom. Characteristic Impedance
110 Ohm

Delay

Nom. Velocity of Prop.
78%

Voltage

UL Voltage Rating
300 V RMS

Temperature

Operating
-20°C To +60°C

Max. Pull Tension

34 lbs (15 kg)

Bulk Cable Weight

16.5 lbs/1000ft (24.6 kg/km)

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

AES/EBU Digital Audio

Notes

Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight.

Update and Revision

Revision Number: 0.405 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.405 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length UPC
2221 B59U1000 Black, Matte UnReel 1,000 ft 612825130840
2221 G7XU1000 Blue, Matte UnReel 1,000 ft 612825130871
2221 G7WU1000 Green, Matte UnReel 1,000 ft 612825130864
2221 B02U1000 Purple UnReel 1,000 ft 612825130833
2221 G7VU1000 Red, Matte UnReel 1,000 ft 612825130857
