Product Number: BE46207

16 PAIR AES/EBU, 26AWG, ISTP, FLEX, LSZH, STAGE

16 PAIR AES/EBU, 26AWG/0.14mm², ISTP, FLEX, LSZH, STAGE

  • Availability:
    Global
  • Status:
    Active

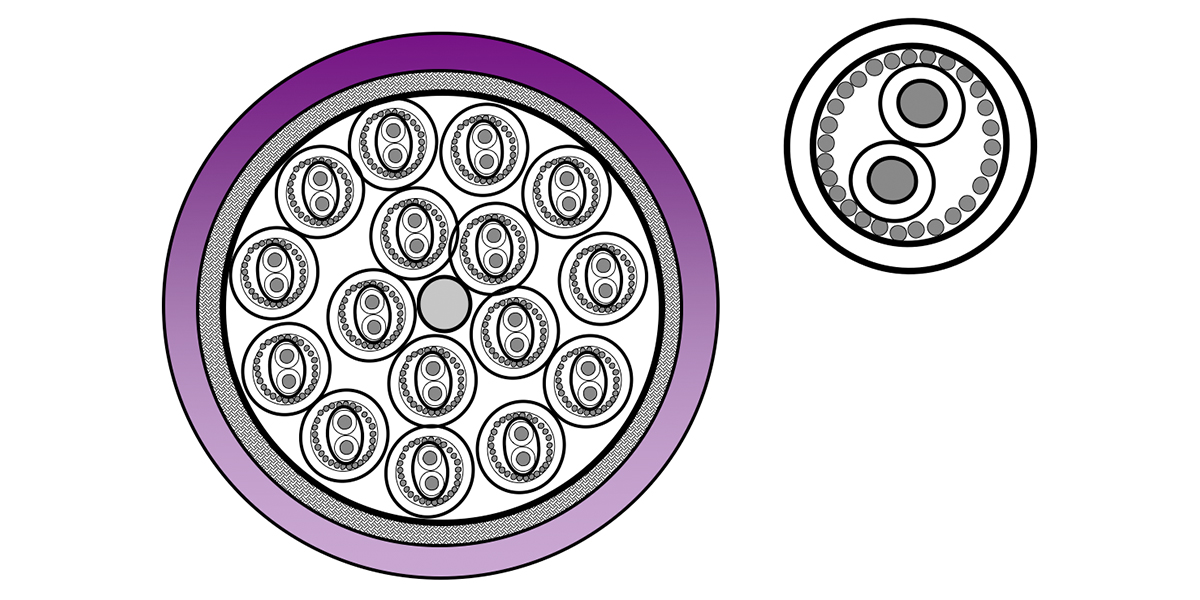

BE46207
  • BE46207
1 of 1

Specifications

Expand All

Suitable Applications

Digital multi-modulation cable used in professional studios; For the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification; The cable is very flexible and has a small outer diameter for use in applications where space is limited

Conductor

Size Stranding Material
26 7x34 TC - Tinned Copper

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene (Foam) 1.1 mm (0.043 in) White & Blue

Inner Shield

Shield Type Material
Spiral Serve / Screen Tinned Copper (TC)

Outer Shield

Shield Type Material
Braid Tinned Copper (TC)

Inner Jacket

Material Nom. Diameter
Nylon 2.8 mm (0.11 in)

Outer Jacket

Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 15.3 mm

Electricals

Max. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence Nom. Velocity of Prop.
130 Ohm/km 50 pF/m (15 pF/ft) 110 Ohm 60%

High Frequency (Nominal/Typical)

Frequency Nom. Insertion Loss (Attenuation) [dB/100m]
1 MHz 2.3
6 MHz 9.5
10 MHz 16

Bend Radius

Installation Min.
153 mm

Environmental Suitability

Indoor

Update and Revision

Revision Number: 0.163 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.163 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length
BE46207.00250 Purple Reel 250 m
BE46207.00500 Purple Reel 500 m
