Product Number: BE46935

8 PAIR AES/EBU, 26AWG, ISTP, LSZH, STAGE

8 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH, STAGE

  • Availability:
    Global
  • Status:
    Active

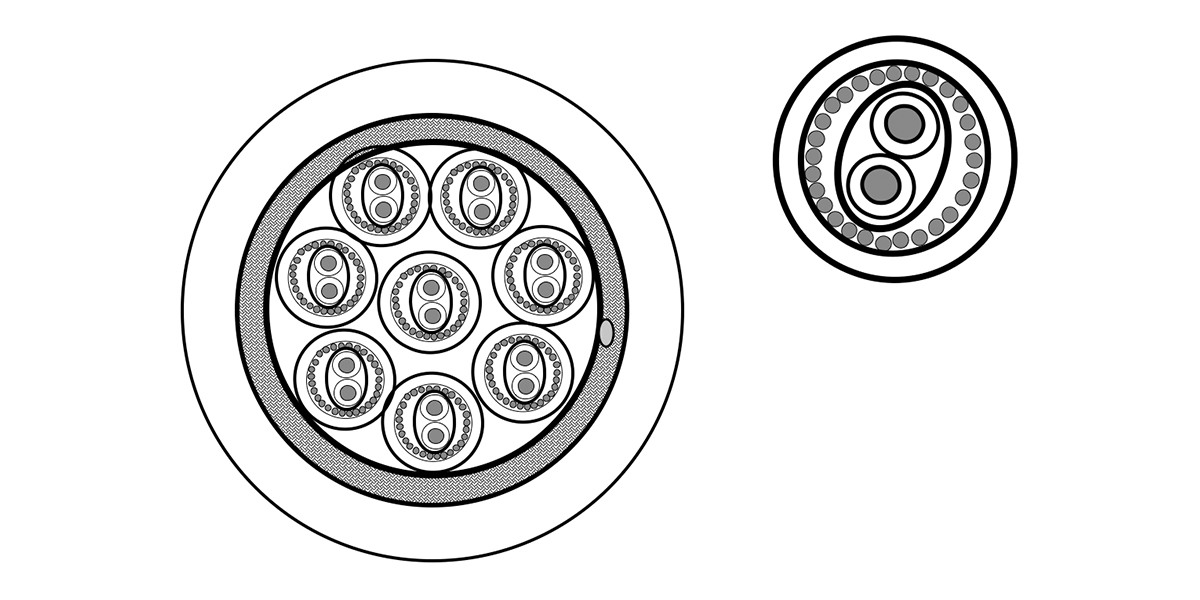

BE46935
  • BE46935
1 of 1

Specifications

Expand All

Suitable Applications

Digital multi-modulation cable used in professional studiotechnics; For analogue and digital transmission in instruments for frequency modulation; Designed to meet the requirements of the AES/EBU specification

Conductor

Size Stranding Material
26 18x38 TC - Tinned Copper

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene 1.13 mm (0.0445 in) White & Blue

Inner Shield

Shield Type Material
Tape Polyester
Spiral Serve / Screen Tinned Copper (TC)

Outer Shield

Shield Type Material
Braid Tinned Copper (TC)

Inner Jacket

Material Nom. Thickness Nom. Diameter Color
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.20 mm (0.0079 in) 2.90 mm (0.114 in) Gray

Inner Jacket Table Notes

Elements are numbered

Outer Jacket

Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 1.10 mm (0.0433 in) 12.50 mm

Electricals

Max. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedence Nom. Velocity of Prop.
130 Ohm/km 40 Ohm/km (12 Ohm/1000ft) 56 pF/m (17 pF/ft) 220 pF/m (67 pF/ft) 110 Ohm 60%
110 Ohm

High Frequency (Nominal/Typical)

Frequency Nom. Insertion Loss (Attenuation) [dB/100m]
2 MHz 3.1
4 MHz 6.2
5 MHz 7.3
6 MHz 8.2
12 MHz 13.1
24 MHz 21.1

Bend Radius

Installation Min.
125 mm

Max. Pull Tension

400 N (90 lbf)

Environmental Suitability

Indoor

Flammability / Reaction to Fire

IEC 60332-3-24

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

Update and Revision

Revision Number: 0.176 Revision Date: 09-07-2025

Update and Revision

Revision Number: 0.176 Revision Date: 09-07-2025


Report An Error

Part Numbers

Item # Color Putup Type Length
BE46935.01250 Gray Reel 250 m
BE46935.01500 Gray Reel 500 m
