1392P

Media Control, #22-1pr BC, #18-2c BC, CMP

...

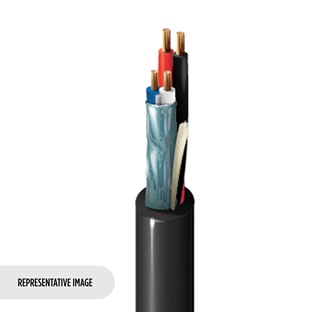

Lighting & Automation Cable, Plenum-CMP, 1 shielded (data) pair 22 AWG stranded bare copper, FEP insulation, 2-18 AWG stranded bare copper conductors unshielded, FEP insulation (power), Flamarrest® jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Multi-Media & Lighting Automation / Control, AMX™ and Crestron ® Control Systems

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 22 AWG 7x30 BC - Bare Copper
Conductor(s) 2 18 AWG 16x30 BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) FEP - Fluorinated Ethylene Propylene (Foam) 0.023 in (0.58 mm) 0.074 in (1.9 mm) Blue & White
Conductor(s) PVC - Polyvinyl Chloride 0.011 in (0.28 mm) 0.068 in (1.7 mm) Red, Black
Inner Shield
Element Shield Type Material Coverage Drainwire Type
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.015 in (0.38 mm) 0.205 in (5.21 mm)

Overall Cable Diameter (Nominal)

0.205 in (5.21 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence Max. Current
Pair(s) 16.3 Ohm/1000ft 14 pF/ft (46 pF/m) 100 Ohm 3.8 Amps per Conductor at 25ºC
Conductor(s) 6.9 Ohm/1000ft (23 Ohm/km) 29 pF/ft (95 pF/m) 7.2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C 0°C to +75°C
Bend Radius
Stationary Min. Installation Min.
2.1 in (53 mm) 2.1 in (53 mm)

Max. Pull Tension

65.3 lbs (29.6 kg)

Bulk Cable Weight

29 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor - Plenum, Indoor

Flammability / Reaction to Fire

NFPA 262, UL 910 (Plenum), FT6

NEC / UL Compliance

Article 800, CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

1392A

Product Notes

Notes

Sequential footage marking every two feet.

History

Update and Revision

Revision Number: 0.494 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC
1392P 010Z250 Black ReelTuff Box 250 ft 612825439257
1392P 010500 Black Reel 500 ft 612825114222
1392P 010Z500 Black ReelTuff Box 500 ft 612825435044
1392P 010Z750 Black ReelTuff Box 750 ft 612825439264
1392P 0101000 Black Reel 1,000 ft 612825114215
1392P 010Z1000 Black ReelTuff Box 1,000 ft 612825435020
1392P 877500 Natural Reel 500 ft 612825114246
1392P 8771000 Natural Reel 1,000 ft 612825114239
1392P 877Z1000 Natural ReelTuff Box 1,000 ft 612825435037
