Microphone Cable, 2 C #20 Str TC, Rayon & 85% TC Braid, Cotton Serve, EPDM Jkt

...

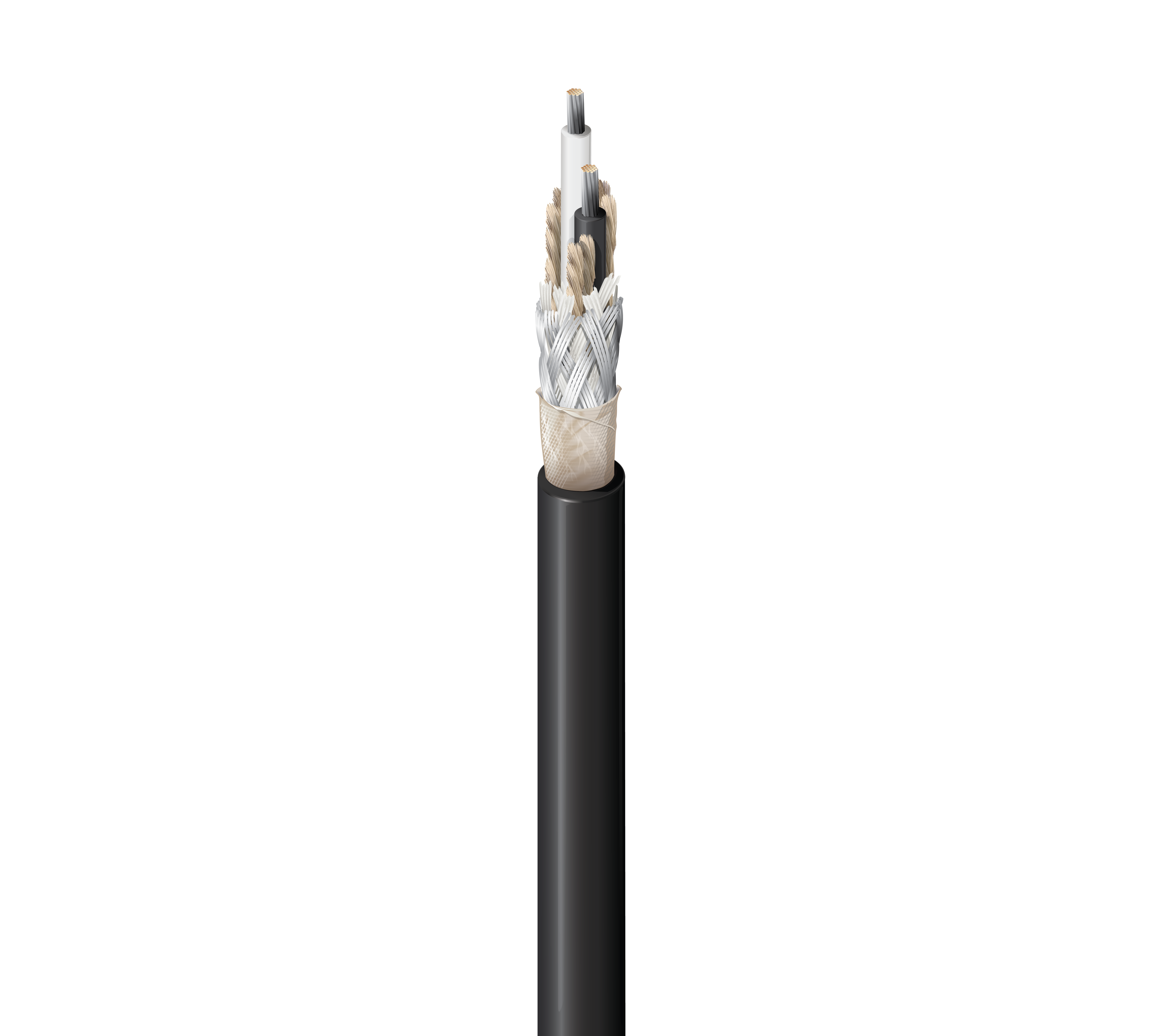

Microphone Cable, 2 Conductor 20 AWG (26 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon® Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 20 AWG 26x34 TC - Tinned Copper (High Conductivity)
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) EPDM - Ethylene Propylene Diene Monomer 0.023 in (0.58 mm) 0.083 in (2.1 mm) White, Black
Outer Shield
Shield Type Material Coverage
Braid Rayon® 85%
Braid Tinned Copper (TC) 85%
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Cotton Serve EPDM - Ethylene Propylene Diene Monomer 0.035 in (0.89 mm) 0.262 in (6.65 mm)

Overall Cable Diameter (Nominal)

0.262 in (6.65 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
Conductor(s) 10.6 Ohm/1000ft 33 pF/ft (110 pF/m) 58 pF/ft (190 pF/m) 67 Ohm 4 Amps per conductor @ 25°C
Voltage
Voltage Rating
600 V
Mechanical Characteristics
Temperature
Operating
-50°C to +90°C
Bend Radius
Stationary Min. Installation Min.
2.6 in (66 mm) 2.6 in (66 mm)

Max. Pull Tension

100 lbs (45 kg)

Bulk Cable Weight

44 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

8412P

History

Update and Revision

Revision Number: 0.521 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
8412 010100 Black Reel 100 ft 612825206361
8412 010250 Black Reel 250 ft 612825206385
8412 010500 Black Reel 500 ft 612825206330 C
8412 010U500 Black UnReel 500 ft 612825396987
8412 0101000 Black Reel 1,000 ft 612825206378 C
8412 010U1000 Black UnReel 1,000 ft 612825206347
8412 0061000 Blue, Light Reel 1,000 ft 612825206354 C
8412 0021000 Red Reel 1,000 ft 612825206316 C
8412 0041000 Yellow Reel 1,000 ft 612825206323 C
Show All Parts Number
Show Less
