Microphone Cable, 2 Conductor 24 AWG, TC

...

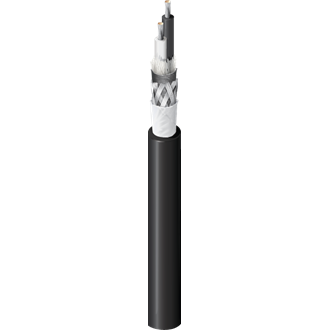

24 AWG stranded (45x40) TC alloy conductors, EPDM rubber insulation, conductive textile wrap (100% coverage), TC braid shield (60% coverage), cotton spiral, EPDM jacket.
Get Product Alerts
Specifications
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Conductors
24 45x40 TCA - Tinned Copper Alloy 0.024 in 2

Conductor Count

2

Insulation
Material Nominal Diameter Nominal Wall Thickness
EPDM - Ethylene Propylene Diene Monomer 0.065 in 0.016 in
Color Chart
Number Color
1 White
2 Black
Outer Shield
Type Material Coverage [%]
Tape Textile (Conductive) 100%
Braid Tinned Copper (TC) 60%
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Separator Material
EPDM - Ethylene Propylene Diene Monomer 0.199 in 0.017 in Cotton Serve
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR
28.7 Ohm/1000ft 28.7 Ohm/1000ft 11.38 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
30 pF/ft 55 pF/ft
Inductance
Nominal Inductance
0.19 µH/ft
Impedance
Nominal Characteristic Impedance
55 Ohm
Current
Max. Recommended Current [A]
2.2 Amps per Conductor at 25ºC
Voltage
Non-UL Voltage Rating
300 V RMS
Temperature Range

Non-UL Temp Rating

90°C

Operating Temp Range

-40°C To +90°C

Mechanical Characteristics

Bulk Cable Weight

25 lbs/1000ft

Max. Pull Tension

48 lbs

Min. Bend Radius/Minor Axis

2 in

Applicable Environmental and Other Programs

Environmental Space

Indoor (Not Riser or Plenum)

EU Directive 2011/65/EU (RoHS 2)

No

EU Directive 2015/863/EU (RoHS 2 amendment)

No

EU Directive Compliance

No

EU CE Mark

No

Suitability

Suitability - Indoor

Yes

Plenum/Non-Plenum

Plenum (Y/N)

No

History

Update and Revision

Revision Number: 0.373 Revision Date: 09-24-2021

Part Numbers
Item # Color Put-Up Type Length UPC
8413 010100 Black Reel 100 ft 612825206422
8413 010500 Black Reel 500 ft 612825206408
8413 010U500 Black UnReel 500 ft 612825206439
