Microphone Cable, 3 C #20 Str TC, Rayon & 85% TC Braid, Cotton Serve, EPDM Jkt

...

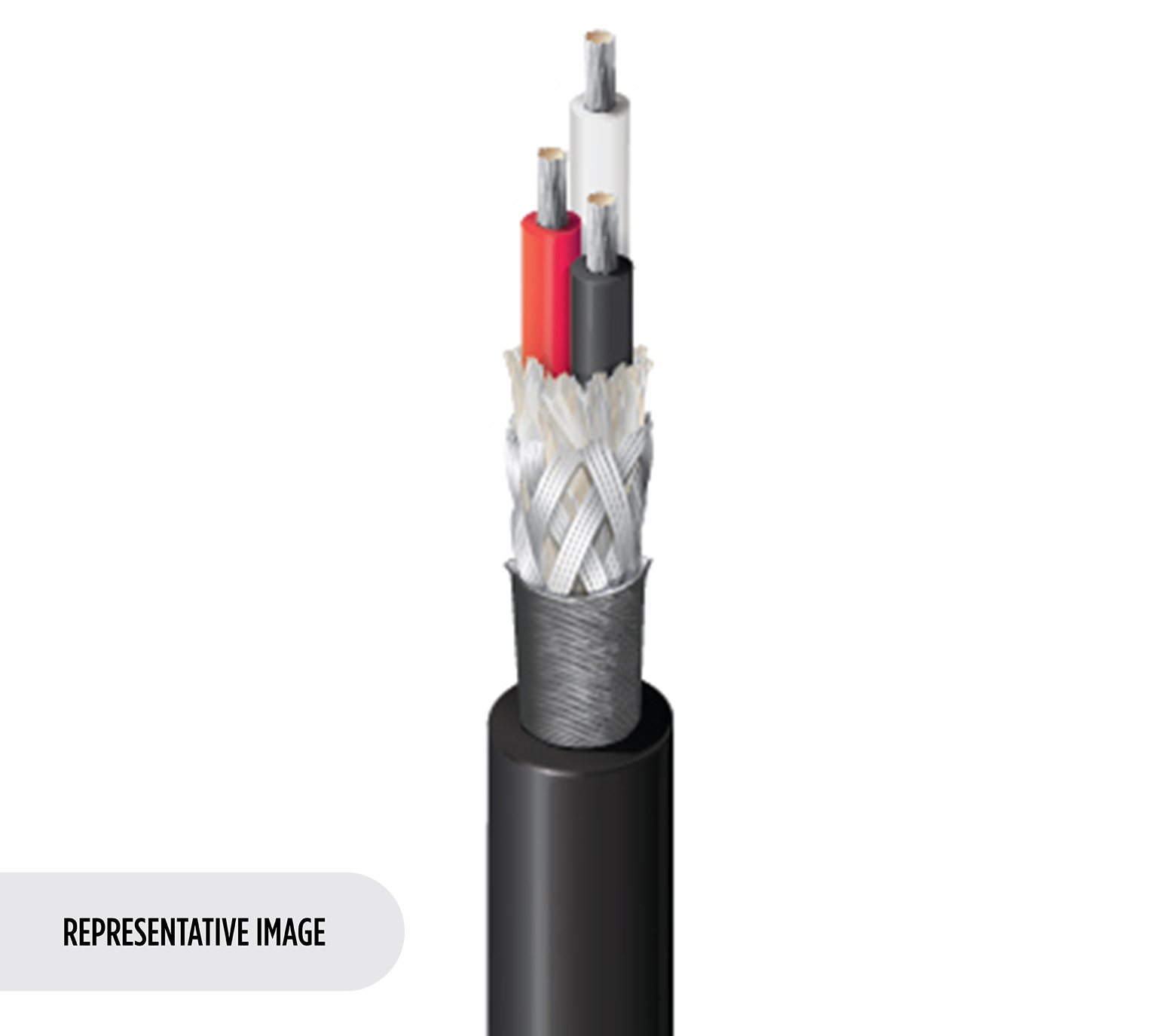

Microphone Cable, 3 Conductor 20 AWG (26 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon® Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 3 20 AWG 26x34 TC - Tinned Copper (High Conductivity)
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) EPDM - Ethylene Propylene Diene Monomer 0.023 in (0.58 mm) 0.083 in (2.1 mm) White, Black, Red
Outer Shield
Shield Type Material Coverage
Braid Rayon® 83%
Braid Tinned Copper (TC) 83%
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Cotton Serve EPDM - Ethylene Propylene Diene Monomer 0.040 in (1.0 mm) 0.272 in (6.91 mm)

Overall Cable Diameter (Nominal)

0.272 in (6.91 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
Conductor(s) 10.2 Ohm/1000ft (33.5 Ohm/km) 30 pF/ft (98 pF/m) 55 pF/ft (180 pF/m) 52 Ohm 4 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
600 V RMS
Mechanical Characteristics
Temperature
Operating
-50°C to +90°C
Bend Radius
Stationary Min. Installation Min.
3.3 in (84 mm) 3.3 in (84 mm)

Max. Pull Tension

88 lbs (40 kg)

Bulk Cable Weight

53 lbs/1000ft (79 kg/km)

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.364 Revision Date: 10-27-2021

Part Numbers
Item # Color Putup Type Length UPC
8423 010100 Black Reel 100 ft 612825206569
8423 010500 Black Reel 500 ft 612825206590
8423 0101000 Black Reel 1,000 ft 612825206576
