Product Number: 9399

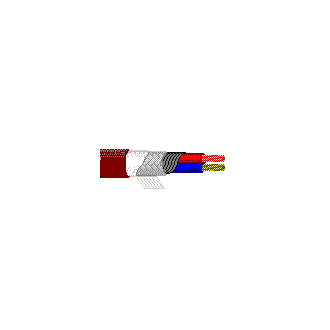

Microphone Cable, 2 Conductor 24 AWG, TC

24 AWG stranded (45x40) BC alloy conductors, EPDM rubber insulation, conductive textile wrap (100% coverage), TC braid shield (65% coverage), cotton spiral, EPDM jacket.

  • Availability:
    Global
  • Status:
    Active
9399
  • 9399
1 of 1

Specifications

Expand All

Suitable Applications

Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Conductor

AWG Stranding Material Nominal Diameter No. of Conductors
24 45x40 BCA - Bare Copper Alloy 0.024 in 2

Conductor Count

2

Insulation

Material Nominal Diameter Nominal Wall Thickness
EPDM - Ethylene Propylene Diene Monomer 0.064 in 0.02 in

Outer Shield

Type Layer Material Coverage [%]
Tape 1 Textile (Conductive) 100%
Braid 2 Tinned Copper (TC) 65%
Spiral Serve / Screen 3 Cotton

Outer Jacket

Material Nominal Diameter Nominal Wall Thickness
EPDM - Ethylene Propylene Diene Monomer 0.2 in 0.02 in

Conductor DCR

Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR
28.7 Ohm/1000ft 28.7 Ohm/1000ft 11.38 Ohm/1000ft

Capacitance

Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
30 pF/ft 55 pF/ft

Inductance

Nominal Inductance
0.019 µH/ft

Impedance

Nominal Characteristic Impedance
55 Ohm

Current

Max. Recommended Current [A]
2.2 Amps per Conductor at 25ºC

Voltage

Non-UL Voltage Rating
300 V RMS

Non-UL Temp Rating

90°C

Operating Temperature Range

-40°C To +90°C

Bulk Cable Weight

25 lbs/1000ft

Max. Pull Tension

48 lbs

Min. Bend Radius/Minor Axis

2 in

Environmental Space

Indoor (Not Riser or Plenum)

EU Directive Compliance

No

EU CE Mark

No

Suitability - Indoor

Yes

Plenum (Y/N)

No

Footnote

C - CRATE REEL PUT-UP.

Update and Revision

Revision Number: 0.380 Revision Date: 02-03-2025

Update and Revision

Revision Number: 0.380 Revision Date: 02-03-2025
