9452

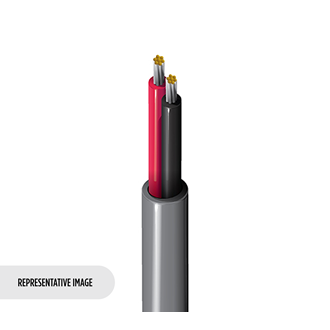

Microphone Cable, 2C #24 Str TC, Noise reducing tape, O/A Foil, PVC Jacket

...
Microphone Cable, 2 Conductor 24 AWG (19 x 36) Tined Copper (High conductivity), PE Insulation, Noise reducing tape, Overall Beldfoil® Shield, PVC Jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Low frequency microphone or musical instruments; Balanced analog audio; Low Noise for high-EMI environments

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 24 AWG 19x36 TC - Tinned Copper (High Conductivity)
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
Conductor(s) PE - Polyethylene 0.008 in (0.20 mm) 0.04 in (1.0 mm) Black, Red HDPE
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Textile (Conductive) 100% 24 AWG (19x36) TC
Tape Bi-Laminate (Alum+Poly) 100%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.020 in (0.51 mm) 0.135 in (3.43 mm)

Overall Cable Diameter (Nominal)

0.135 in (3.43 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
Conductor(s) 28.8 Ohm/1000ft 30 pF/ft (98 pF/m) 58 pF/ft (190 pF/m) 56 Ohm 2.8 Amps per conductor @ 25°C
Voltage
UL Voltage Rating Voltage Rating
200 V 200 V
Mechanical Characteristics
Temperature
Operating
-40°C to +75°C
Bend Radius
Stationary Min. Installation Min.
1.6 in (41 mm) 1.6 in (41 mm)

Max. Pull Tension

29 lbs (13 kg)

Bulk Cable Weight

11 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

CPR Compliance

CPR Euroclass: Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.474 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC
9452 010500 Black Reel 500 ft 612825253174
9452 010U500 Black UnReel 500 ft 612825254027
9452 0101000 Black Reel 1,000 ft 612825253204
9452 010U1000 Black UnReel 1,000 ft 612825253181
