8470

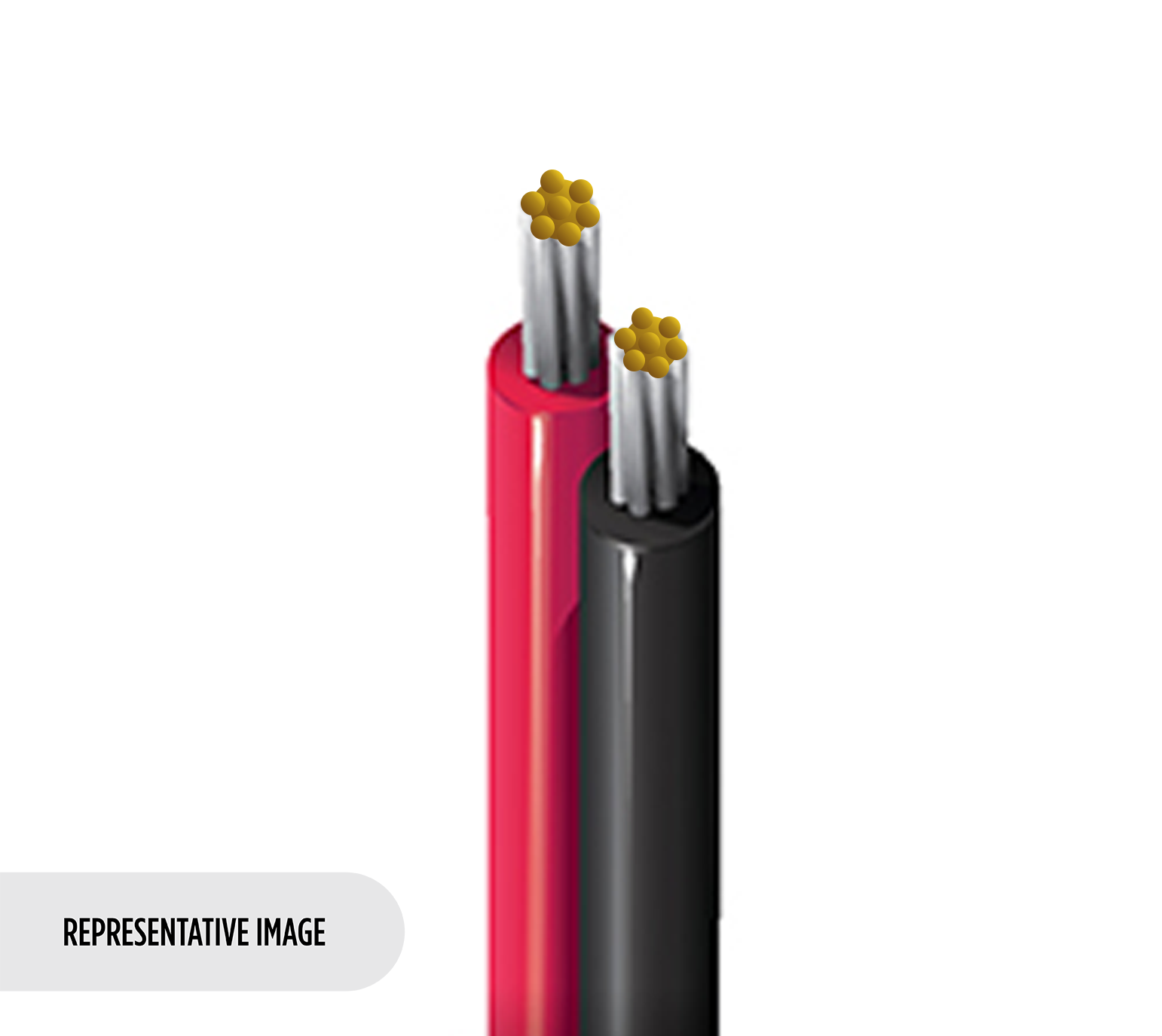

Speaker Cable, 2 #16 Str ETP-TC, Unjacketed

...
Speaker Cable, 2 Conductor 16 AWG (19 x 29) Tinned Copper (High conductivity), PVC Insulation, Unjacketed
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Indoor Speaker Cable

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 16 AWG 19x29 TC - Tinned Copper (High Conductivity)
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC - Polyvinyl Chloride 0.023 in (0.58 mm) 0.105 in (2.67 mm) Black, White
Outer Jacket
Material Nom. Diameter
No Jacket 0.210 in (5.33 mm)

Overall Cable Diameter (Nominal)

0.210 in (5.33 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 4.45 Ohm/1000ft 18 Amps per Conductor at 30ºC
Voltage
Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -30°C to +105°C
Bend Radius
Stationary Min. Installation Min.
2.1 in (53 mm) 2.1 in (53 mm)

Max. Pull Tension

94 lbs (43 kg)

Bulk Cable Weight

24 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Flammability / Reaction to Fire

UL 1581 (VW-1)

AWM Compliance

AWM 1007

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.428 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
8470 063500 Black and White Pair Reel 500 ft 612825208495
8470 0631000 Black and White Pair Reel 1,000 ft 612825208518 C
8470 063U1000 Black and White Pair UnReel 1,000 ft 612825213840
