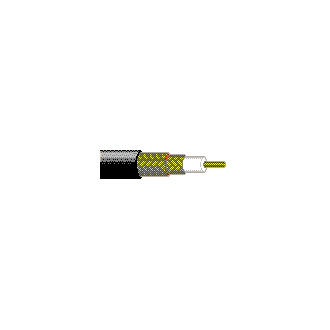

Product Number: 9290
Analog Video, RG6 #18 Solid BC, Double 95% BC Braids, PVC Jacket, CM
18 AWG solid .038" bare copper conductor, foam polyethylene insulation, double bare copper braid shields (95% coverage), PVC jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 18 | Solid | BC - Bare Copper | 0.038 in | 1 |
|
Conductor Count |
1 |
|---|
Insulation
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene (Foam) | 0.18 in |
Outer Shield
| Type | Layer | Material | Coverage [%] |
|---|---|---|---|
| Braid | 1 | Bare Copper (BC) | 95% |
| Braid | 2 | Bare Copper (BC) | 95% |
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.288 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 7.5 Ohm/1000ft | 7.5 Ohm/1000ft | 2 Ohm/1000ft | 2 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Shield |
|---|
| 16.8 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.098 µH/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
Return Loss
| Frequency [MHz] | Minimum Return (RL) |
|---|---|
| 5-450 MHz | 23 dB |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.2 dB/100ft |
| 10 MHz | 0.7 dB/100ft |
| 50 MHz | 1.7 dB/100ft |
| 100 MHz | 2.5 dB/100ft |
| 200 MHz | 3.6 dB/100ft |
| 400 MHz | 5 dB/100ft |
| 700 MHz | 7.2 dB/100ft |
| 900 MHz | 8.3 dB/100ft |
| 1000 MHz | 8.8 dB/100ft |
Delay
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.25 ns/ft | 81% |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
Non-UL Temp Rating |
80°C |
|---|---|
|
Operating Temperature Range |
-40°C To +80°C |
Mechanical Characteristics
|
Bulk Cable Weight |
54 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
108 lbs |
|
Min. Bend Radius/Minor Axis |
3 in |
Standards
|
NEC/(UL) Compliance |
CM |
|---|---|
|
CEC/C(UL) Compliance |
CM |
|
CPR Euroclass |
Eca |
|
RG Type |
6 |
|
Series Type |
6 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor/Outdoor |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL1685 UL Loading |
|---|---|
|
IEC Flammability |
IEC 60332-1-2 |
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
History
|
Update and Revision |
Revision Number: 0.384 Revision Date: 02-03-2025 |
|---|
Belden.GenericSpecificationTitle
|
Update and Revision |
Revision Number: 0.384 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 9290 0101000 | Black | Reel | 1,000 ft | 612825357865 |
| 9290 0102000 | Black | Reel | 2,000 ft | 612825227076 |
