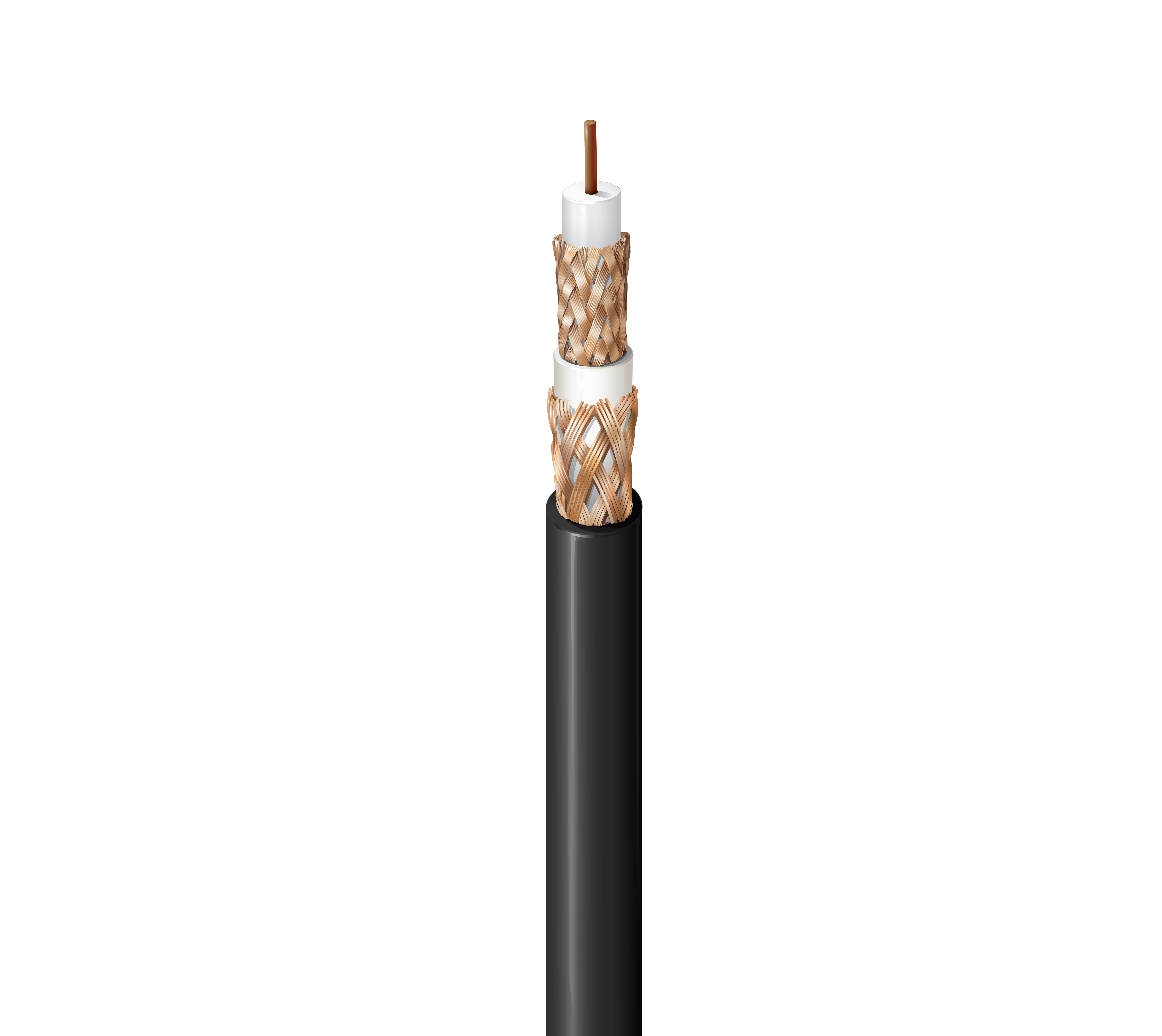

Product Number: 1856A
Triax, RG59, 20 AWG Solid BC, Double 95% BC Braids, Belflex® Jkt
Triax, RG59, 20 AWG Solid Bare Copper Conductor, PE Insulation, 95% Bare Copper Braid Shield, PE Insulation, 95% Bare Copper Braid Shield, Belflex® Jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Analog Video; Interconnect camera to CCU (camera control unit) |
|---|
Construction Details
|
RG Type |
59 |
|---|
Conductor
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 20 AWG | Solid | 0.032 in | BC - Bare Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene (Foam) | 0.145 in (3.68 mm) | White |
Inner Shield
| Layer | Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Braid | Bare Copper (BC) | 95% |
Inner Jacket
| Material | Nom. Diameter |
|---|---|
| PE - Polyethylene | 0.216 in (5.49 mm) |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Braid | Bare Copper (BC) | 95% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.360 in (9.14 mm) |
|
Overall Cable Diameter (Nominal) |
0.360 in (9.14 mm) |
|---|
Electrical Characteristics
Return Loss
| Frequency | Min. Return Loss |
|---|---|
| 5 - 850 MHz | 21 dB |
| 850 - 3000 MHz | 15 dB |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.30 dB/100ft |
| 3.6 MHz | 0.60 dB/100ft |
| 10 MHz | 0.80 dB/100ft |
| 71.5 MHz | 2.20 dB/100ft |
| 135 MHz | 3.00 dB/100ft |
| 270 MHz | 4.20 dB/100ft |
| 360 MHz | 4.80 dB/100ft |
| 540 MHz | 5.90 dB/100ft |
| 720 MHz | 6.90 dB/100ft |
| 750 MHz | 7.10 dB/100ft |
| 1000 MHz | 8.80 dB/100ft |
| 1500 MHz | 12.00 dB/100ft |
| 2250 MHz | 16.40 dB/100ft |
| 3000 MHz | 20.40 dB/100ft |
Electricals
| Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|---|
| 10.1 Ohm/1000ft | 2.5 Ohm/1000ft (8.2 Ohm/km) | 1.6 Ohm/1000ft (5.2 Ohm/km) | 16.3 pF/ft (53.5 pF/m) | 75 Ohm | 83% |
Voltage
| Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| Operating |
|---|
| -50°C to +80°C |
Bend Radius
| Installation Min. |
|---|
| 3.6 in (91 mm) |
|
Max. Pull Tension |
124 lbs (56.2 kg) |
|---|---|
|
Bulk Cable Weight |
76 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor/Outdoor, Indoor, Aerial - When supported by messenger wire |
|---|---|
|
Sustainability |
CA Prop 65 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.480 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.480 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1856A B591000 | Black, Matte | Reel | 1,000 ft | 612825356899 | C |
| 1856A B594000 | Black, Matte | Reel | 4,000 ft | 612825352242 | |
| 1856A 0061000 | Blue, Light | Reel | 1,000 ft | 612825356813 | C |
| 1856A 0051000 | Green, Dark | Reel | 1,000 ft | 612825356868 | C |
