1694A

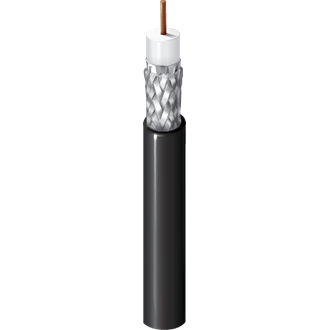

75 Ohm SDI Coax, RG-6, 18 AWG, Solid BC, Foil + 95% TC Braid, PVC Jkt, CMR

...
75 Ohm SDI Coax, RG-6, 18 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p

Construction Details

RG Type

6

Conductor
Size Stranding Nom. Diameter Material
18 AWG Solid 0.040 in BC - Bare Copper
Insulation
Material Nom. Insulation Diameter
PE - Polyethylene (Foam) 0.180 in (4.57 mm)
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
2 Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.274 in (6.96 mm)
Electrical Characteristics
Return Loss
Frequency Min. Return Loss
5 - 1600 MHz 23 dB
1600 - 4500 MHz 21 dB
4500 - 6000 MHz 15 dB
Attenuation
Frequency Nom. Attenuation
1 MHz 0.24 dB/100ft
3.58 MHz 0.44 dB/100ft
5 MHz 0.52 dB/100ft
6 MHz 0.57 dB/100ft
7 MHz 0.61 dB/100ft
10 MHz 0.71 dB/100ft
12 MHz 0.78 dB/100ft
25 MHz 1.08 dB/100ft
67.5 MHz 1.65 dB/100ft
71.5 MHz 1.69 dB/100ft
88.5 MHz 1.86 dB/100ft
100 MHz 1.95 dB/100ft
135 MHz 2.24 dB/100ft
143 MHz 2.3 dB/100ft
180 MHz 2.57 dB/100ft
270 MHz 3.17 dB/100ft
360 MHz 3.69 dB/100ft
540 MHz 4.5 dB/100ft
720 MHz 5.3 dB/100ft
750 MHz 5.4 dB/100ft
1000 MHz 6.3 dB/100ft
1500 MHz 7.8 dB/100ft
2000 MHz 9.2 dB/100ft
2250 MHz 9.8 dB/100ft
3000 MHz 11.5 dB/100ft
4500 MHz 14.5 dB/100ft
6000 MHz 17.7 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
6.4 Ohm/1000ft (21 Ohm/km) 3.8 Ohm/1000ft (12 Ohm/km) 16.2 pF/ft (53.1 pF/m) 75 Ohm 82%
Voltage
UL Voltage Rating
300 V (CMR, CMG)
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -20°C to +75°C
Bend Radius
Installation Min.
2.75 in

Max. Pull Tension

69 lbs (31 kg)

Bulk Cable Weight

41 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, UV Resistance

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL1666 Vertical Shaft, FT4

NEC / UL Compliance

CMR

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

1695A

Product Notes

Notes

Also available in multi-coax bundled versions. See 7710A through 7713A. Print legend includes sequential footage marks.

History

Update and Revision

Revision Number: 0.399 Revision Date: 11-15-2021

Part Numbers
Item # Color Putup Type Length UPC/EAN
1694A.00152 Black Reel 152 m 8719605003317
1694A.00305 Black Reel 305 m 8719605003324
1694A 010500 Black Reel 500 ft 612825358169
1694A 010Z500 Black ReelTuff Box 500 ft 612825434726
1694A.00500 Black Reel 500 m 8719605003331
1694A 0101000 Black Reel 1,000 ft 612825358190
1694A 010N1000 Black Reel w/Small Barrel 1,000 ft
1694A 010Z1000 Black ReelTuff Box 1,000 ft 612825434702
1694A.001000 Black Reel 1,000 m 8719605003294
1694A.001372 Black Reel 1,372 m 8719605003300
1694A 0105000 Black Reel 5,000 ft 612825358183
1694A 01010000 Black Reel 10,000 ft 612825435631
1694A.05305 Blue Reel 305 m 8719605003447
1694A.051372 Blue Reel 1,372 m 8719605003430
1694A 0061000 Blue, Light Reel 1,000 ft 612825358220
1694A 006Z1000 Blue, Light ReelTuff Box 1,000 ft 612825434597
1694A 0065000 Blue, Light Reel 5,000 ft 612825356189
1694A 00610000 Blue, Light Reel 10,000 ft 612825440352
1694A 0011000 Brown Reel 1,000 ft 612825358268
1694A 0015000 Brown Reel 5,000 ft 612825356240
1694A 00110000 Brown Reel 10,000 ft 612825440369
1694A.09500 Cream Reel 500 m 8719605003546
1694A 0081000 Gray Reel 1,000 ft 612825356165
1694A 0085000 Gray Reel 5,000 ft 612825356158
1694A 00810000 Gray Reel 10,000 ft 612825435617
1694A.08305 Gray, Slate Reel 305 m 8719605003539
1694A.081372 Gray, Slate Reel 1,372 m 8719605003522
1694A.06152 Green Reel 152 m 8719605003478
1694A.06305 Green Reel 305 m 8719605003485
1694A.061219 Green Reel 1,219 m 8719605003454
1694A.061372 Green Reel 1,372 m 8719605003461
1694A.064000 Green Reel 4,000 m 8719605003492
1694A N3U1000 Green, Mil Reel 1,000 ft 612825358275
1694A N3UN1000 Green, Mil Reel w/Small Barrel 1,000 ft
1694A N3U5000 Green, Mil Reel 5,000 ft 612825356257
1694A N3U10000 Green, Mil Reel 10,000 ft 612825435648
1694A.03305 Orange Reel 305 m 8719605003409
1694A 0031000 Orange Reel 1,000 ft 612825358251
1694A 003Z1000 Orange ReelTuff Box 1,000 ft 612825434535
1694A.031372 Orange Reel 1,372 m 8719605003393
1694A 00310000 Orange Reel 10,000 ft 612825435655
1694A.01305 Red Reel 305 m 8719605003355
1694A 0021000 Red Reel 1,000 ft 612825358244
1694A 002Z1000 Red ReelTuff Box 1,000 ft 612825434443
1694A.011372 Red Reel 1,372 m 8719605003348
1694A 0025000 Red Reel 5,000 ft 612825356264
1694A 00210000 Red Reel 10,000 ft 612825440376
1694A.02305 Violet Reel 305 m 8719605003386
1694A 0071000 Violet Reel 1,000 ft 612825358213
1694A 007N1000 Violet Reel w/Small Barrel 1,000 ft 612825366966
1694A 007Z1000 Violet ReelTuff Box 1,000 ft 612825434665
1694A.021000 Violet Reel 1,000 m 8719605003362
1694A.021372 Violet Reel 1,372 m 8719605003379
1694A 0075000 Violet Reel 5,000 ft 612825356172
1694A 00710000 Violet Reel 10,000 ft 612825435303
1694A.07305 White Reel 305 m 8719605003515
1694A 0091000 White Reel 1,000 ft 612825358206
1694A 009N1000 White Reel w/Small Barrel 1,000 ft
1694A 009Z1000 White ReelTuff Box 1,000 ft 612825434672
1694A.071372 White Reel 1,372 m 8719605003508
1694A 00910000 White Reel 10,000 ft 612825435624
1694A.04305 Yellow Reel 305 m 8719605003423
1694A 0041000 Yellow Reel 1,000 ft 612825358237
1694A 004N1000 Yellow Reel w/Small Barrel 1,000 ft
1694A 004Z1000 Yellow ReelTuff Box 1,000 ft 612825434542
1694A.041372 Yellow Reel 1,372 m 8719605003416
1694A 00410000 Yellow Reel 10,000 ft 612825440383
