1694F

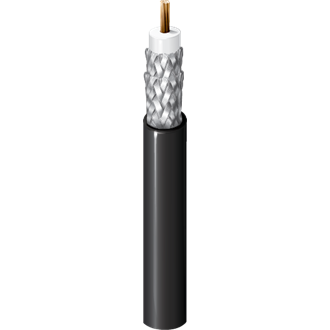

75 Ohm SDI Coax, RG-6, 19 AWG Str BC, Double 95% TC Braid, PVC Jkt, CM, Flexible

...
75 Ohm SDI Coax, RG-6, 19 AWG (7x27) Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield, PVC Jacket, CM, Flexible
Get Product Alerts
Specifications
Product Overview

Suitable Applications

Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p

Construction Details

RG Type

6

Conductor
Size Stranding Nom. Diameter Material
19 AWG 7x27 0.041 in BC - Bare Copper
Insulation
Material Nom. Insulation Diameter
PE - Polyethylene (Foam) 0.180 in (4.57 mm)
Outer Shield
Layer Outer Shield Type Material Coverage
1 Braid Tinned Copper (TC) 95%
2 Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.276 in (7.01 mm)
Electrical Characteristics
Return Loss
Frequency Min. Return Loss
5 - 850 MHz 20 dB
850 - 6000 MHz 15 dB
Attenuation
Frequency Nom. Attenuation
1 MHz 0.24 dB/100ft
3.58 MHz 0.45 dB/100ft
5 MHz 0.54 dB/100ft
6 MHz 0.55 dB/100ft
7 MHz 0.62 dB/100ft
10 MHz 0.72 dB/100ft
12 MHz 0.83 dB/100ft
25 MHz 1.18 dB/100ft
55 MHz 1.76 dB/100ft
67.5 MHz 1.9 dB/100ft
71.5 MHz 2.0 dB/100ft
88.5 MHz 2.2 dB/100ft
100 MHz 2.4 dB/100ft
135 MHz 2.8 dB/100ft
143 MHz 2.9 dB/100ft
180 MHz 3.3 dB/100ft
270 MHz 4.0 dB/100ft
360 MHz 4.7 dB/100ft
540 MHz 5.9 dB/100ft
720 MHz 6.9 dB/100ft
750 MHz 7.1 dB/100ft
1000 MHz 8.4 dB/100ft
1500 MHz 10.6 dB/100ft
2000 MHz 12.5 dB/100ft
2250 MHz 13.4 dB/100ft
3000 MHz 15.9 dB/100ft
4500 MHz 20.6 dB/100ft
6000 MHz 28.7 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
8.5 Ohm/1000ft (28 Ohm/km) 1.7 Ohm/1000ft (5.6 Ohm/km) 17.0 pF/ft (55.8 pF/m) 75 Ohm 80%
Voltage
UL Voltage Rating
300 V (CM)
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -35°C to +75°C
Bend Radius
Installation Min.
2.75 in

Max. Pull Tension

90 lbs (41 kg)

Bulk Cable Weight

50 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL 1685 - UL Loading

NEC / UL Compliance

CM

CEC / C(UL) Compliance

CM

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.345 Revision Date: 11-15-2021

Part Numbers
Item # Color Putup Type Length UPC
1694F B591000 Black, Matte Reel 1,000 ft 612825356196
1694F B59N1000 Black, Matte Reel w/Small Barrel 1,000 ft
1694F B595000 Black, Matte Reel 5,000 ft 612825439813
1694F G7X1000 Blue, Matte Reel 1,000 ft 612825356110
1694F G7X5000 Blue, Matte Reel 5,000 ft 612825439851
1694F G7W1000 Green, Matte Reel 1,000 ft 612825356127
1694F G7W5000 Green, Matte Reel 5,000 ft 612825439837
1694F G8L1000 Orange, Matte Reel 1,000 ft 612825356097
1694F G8L5000 Orange, Matte Reel 5,000 ft 612825439899
1694F G7V1000 Red, Matte Reel 1,000 ft 612825356134
1694F G7V5000 Red, Matte Reel 5,000 ft 612825440468
1694F Z4B1000 Violet Reel 1,000 ft 612825358176
1694F Z4B5000 Violet Reel 5,000 ft 612825439912
1694F G7Y1000 White, Matte Reel 1,000 ft 612825356103
1694F G7Y5000 White, Matte Reel 5,000 ft 612825439882
1694F G8M1000 Yellow, Matte Reel 1,000 ft 612825356080
1694F G8M5000 Yellow, Matte Reel 5,000 ft 612825439905
