9104

CATV Video, RG59, 20 AWG BCCS, Foil + Braid, CM PVC Jacket

...

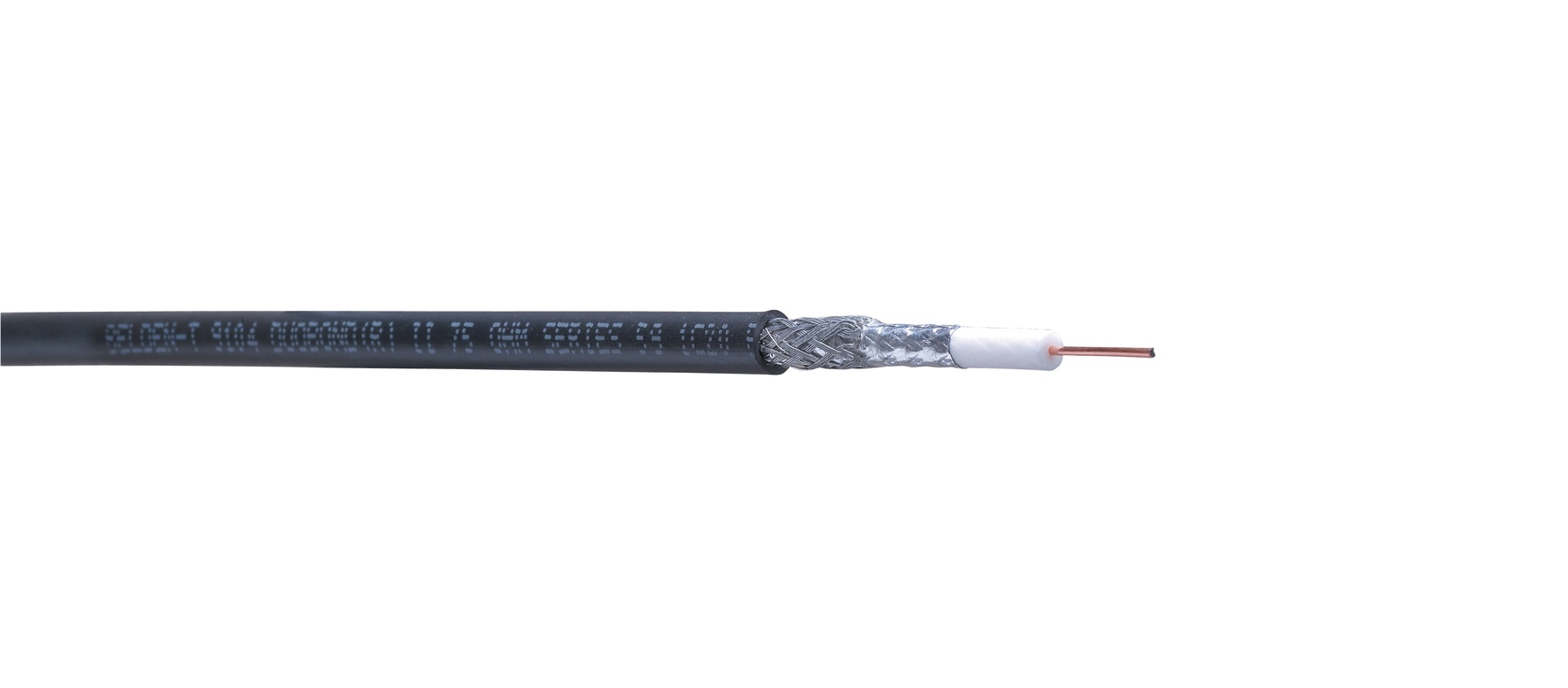

CATV, Series 59, 20 AWG solid .032" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond®; aluminum braid(s) shield (65% coverage), CM PVC jacket.
Get Product Alerts
Specifications
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
20 Solid BCCS - Bare Copper Covered Steel 0.032 in 1

Conductor Count

1

Insulation
Material Nominal Diameter
PE - Polyethylene (Foam) 0.144 in

Table Notes

Gas Injected

Outer Shield Material
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Aluminum 65%
Outer Jacket Material
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.237 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
44.5 Ohm/1000ft 12 Ohm/1000ft 12 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.2 pF/ft
Inductance
Nominal Inductance
0.097 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Min. Structural Return Loss (SRL)
5-1000 MHz 20 dB
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.2 ns/ft 83%
High Freq
Frequency [MHz] Max. Insertion Loss (Attenuation)
5 MHz 0.86 dB/100ft
55 MHz 2.05 dB/100ft
211 MHz 3.80 dB/100ft
270 MHz 4.22 dB/100ft
300 MHz 4.45 dB/100ft
350 MHz 4.80 dB/100ft
400 MHz 5.10 dB/100ft
450 MHz 5.40 dB/100ft
550 MHz 5.95 dB/100ft
750 MHz 6.97 dB/100ft
870 MHz 7.57 dB/100ft
1000 MHz 8.12 dB/100ft
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Operating Temp Range

-40°C To +80°C

Mechanical Characteristics

Max. Pull Tension

104 lbs

Bulk Cable Weight

23 lbs/1000ft

Min Bend Radius/Minor Axis

2.25 in

NEC/(UL) Compliance

CATV, CM

CEC/C(UL) Compliance

CM

Standards

CPR Euroclass

Eca

RG Type

59

Series Type

59

Environmental Space

Indoor (Not Riser or Plenum)

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (ROHS II)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

No

EU RoHS Compliance Date (yyyy-mm-dd)

2004-01-01

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1685 UL Loading

IEC Flammability

IEC 60332-1-2

Plenum (Y/N)

No

UL voltage rating

300 V RMS

History

Update and Revision

Revision Number: 0.319 Revision Date: 02-16-2021

Part Numbers
Item # Color Putup Type Length UPC
9104 0101000 Black Reel 1,000 ft 612825224280
9104 010U1000 Black UnReel 1,000 ft 612825224266
9104 009U1000 White UnReel 1,000 ft 612825224297
9104 Q5HU1000 White, Neutral UnReel 1,000 ft 612825224303
