Product Number: 3092A

ControlBus™, Coax RG-6, #18 Sol BCCS, FPE Ins, QUAD AL Shld, PVC Jkt, CMR

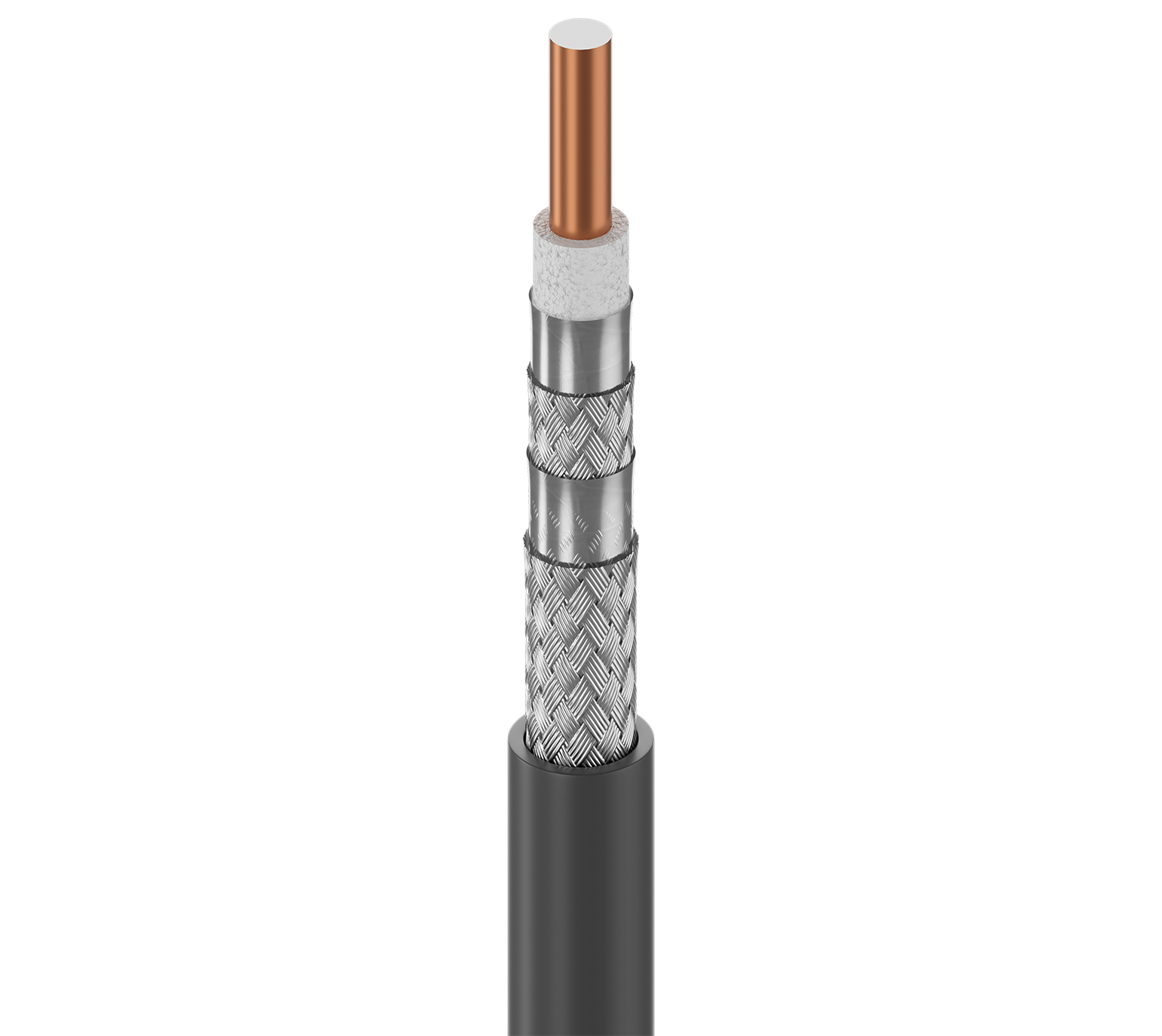

Coax RG-6 18 AWG (Solid) Bare Copper Covered Steel, Foam PE Insulation, Overall Duobond® II+Aluminum Braid(60%)+Duofoil®+Aluminum Braid(40%) Shield, PVC Outer Jacket, CMR

  • Availability:
    Global
  • Status:
    Active
3092A
  • 3092A
1 of 1

Specifications

Report An Error

Suitable Applications

Harsh environment, factory automation, ControlNet™, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications

RG Type

6

Conductor

Size Stranding Nom. Diameter Material
18 AWG Solid 0.040 in BCCS - Bare Copper Covered Steel

Insulation

Material Nom. Insulation Diameter Color Code
PE - Polyethylene (Foam) 0.180 in (4.57 mm) White

Outer Shield

Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Aluminum 60%
3 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
4 Braid Aluminum 40%

Outer Jacket

Material Nom. Diameter
PVC - Polyvinyl Chloride 0.303 in (7.70 mm)

Overall Cable Diameter (Nominal)

0.303 in (7.70 mm)

Return Loss

Frequency Min. Structural Return Loss
5 - 50 MHz 23 dB

Attenuation

Frequency Nom. Attenuation
1 MHz 0.35 dB/100ft
2 MHz 0.38 dB/100ft
5 MHz 0.45 dB/100ft
10 MHz 0.59 dB/100ft
20 MHz 0.86 dB/100ft
50 MHz 1.37 dB/100ft
100 MHz 1.97 dB/100ft
200 MHz 2.82 dB/100ft
300 MHz 3.48 dB/100ft
400 MHz 4.04 dB/100ft

Electricals

Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
28 Ohm/1000ft 2.6 Ohm/1000ft (8.5 Ohm/km) 16.2 pF/ft (53.1 pF/m) 75 Ohm 83%

Voltage

UL Voltage Rating
300 V (CMR, CMG)

Temperature

UL Temperature Operating
75°C -30°C to +75°C

Bend Radius

Installation Min.
3 in (76 mm)

Max. Pull Tension

162 lbs (73.5 kg)

Bulk Cable Weight

33 lbs/1000ft

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL1666 Vertical Shaft

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

CMR, CL2R, CMG

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

3093A

Update and Revision

Revision Number: 0.600 Revision Date: 02-03-2025

Update and Revision

Revision Number: 0.600 Revision Date: 02-03-2025

Part Numbers

Item # Color Putup Type Length UPC Footnote
3092A 010500 Black Reel 500 ft 612825141372
3092A 0101000 Black Reel 1,000 ft 612825141334 C
3092A 0102000 Black Reel 2,000 ft 612825141358 C
3092A 0105000 Black Reel 5,000 ft 612825141389
3092A 01010000 Black Reel 10,000 ft 612825141341
3092A X7E500 Blue X7E Reel 500 ft 612825141303
3092A X7E1000 Blue X7E Reel 1,000 ft 612825141280 C
3092A X7E5000 Blue X7E Reel 5,000 ft 612825141310
