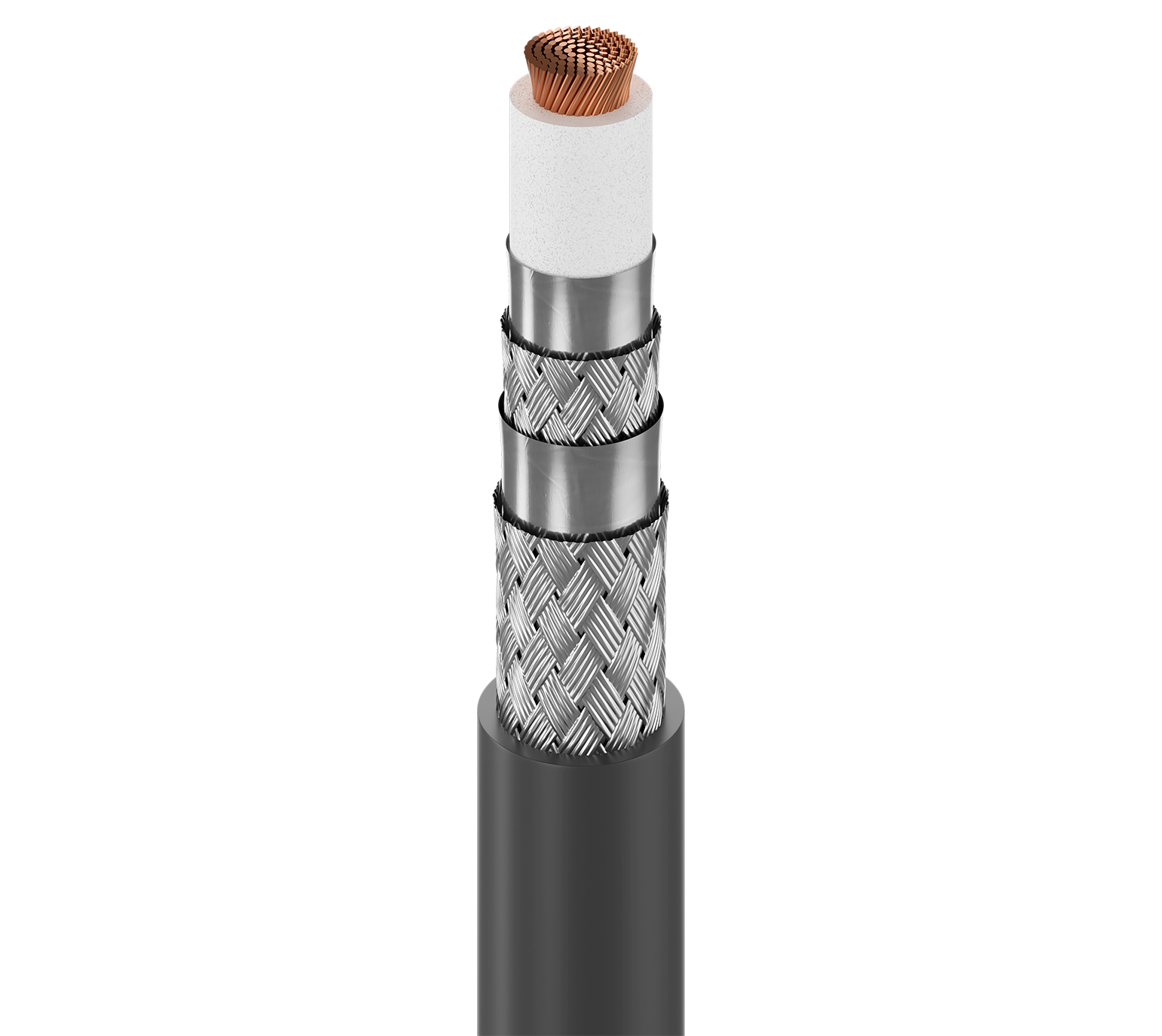

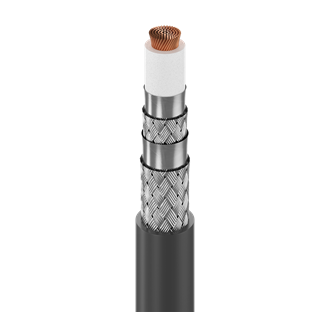

ControlBus™, Coax RG-6, #20 Str BC, FPE Ins, QUAD AL Shld, PVC Jkt, High Flex, CMR

Coax RG-6 20 AWG (105x40) Bare Copper, Foam PE Insulation, Overall Duobond® II+Aluminum Braid(60%)+Duofoil®+Aluminum Braid(40%) Shield, PVC Outer Jacket, High Flex, CMR
Request Sample Get Product Alerts

Product Overview

Suitable Applications

Harsh environment, factory automation, ControlNet™, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications

Construction Details

RG Type


Size Stranding Nom. Diameter Material
20 AWG 105x40 0.040 in BC - Bare Copper
Material Nom. Insulation Diameter Color Code
PE - Polyethylene (Foam) 0.183 in (4.65 mm) White
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Aluminum 60%
3 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
4 Braid Aluminum 40%
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.303 in (7.70 mm)

Overall Cable Diameter (Nominal)

0.303 in (7.70 mm)

Electrical Characteristics
Return Loss
Frequency Min. Structural Return Loss
5 - 400 MHz 23 dB
Frequency Nom. Attenuation
1 MHz 0.36 dB/100ft
2 MHz 0.47 dB/100ft
5 MHz 0.8 dB/100ft
10 MHz 1.2 dB/100ft
20 MHz 2.0 dB/100ft
50 MHz 3.2 dB/100ft
100 MHz 4.6 dB/100ft
200 MHz 6.5 dB/100ft
300 MHz 8 dB/100ft
400 MHz 9.3 dB/100ft
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
10.5 Ohm/1000ft 2.6 Ohm/1000ft (8.5 Ohm/km) 16.3 pF/ft (53.5 pF/m) 75 Ohm 82%
UL Voltage Rating
300 V (CMR, CMG)

Electrical Characteristics Notes

IEEE 802.4 MAP/IEEE 802.7 Mini-Map

Mechanical Characteristics
UL Temperature Operating
75°C -40°C to +75°C
Bend Radius
Installation Min.
3 in (76 mm)

Max. Pull Tension

35 lbs (16 kg)

Bulk Cable Weight

29 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor - Riser, Indoor, Aerial - When supported by messenger wire


CA Prop 65

Flammability / Reaction to Fire

UL 1666 Riser

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance


CEC / C(UL) Compliance


European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance


APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes


Flex Life: 1.5 Million cycles @ 6.0"" minimum bend radius. For Rockwell authorized Flexible ControlNet order YR28890 (Tinned Copper Braid Version).


Update and Revision

Revision Number: 0.508 Revision Date: 04-29-2024

Part Numbers
Item # Color Putup Type Length UPC Footnote
3092F 0101000 Black Reel 1,000 ft 612825141396
3092F 0105000 Black Reel 5,000 ft 612825141402 C
