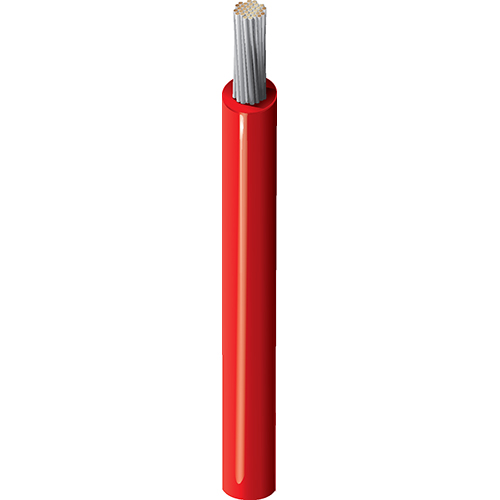

Lead Wire, #16 Str TC, PPO Ins, AWM 11028
|
Suitable Applications |
Electrical panel builders, Electrical/electronic manufacturers, Appliance manufacturers, Furniture, Computer manufacturers, Automotive companies and their sub-suppliers |
|---|
| Element | Number of Element | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 1 | 16 AWG | 26x30 | TC - Tinned Copper |
| Material | Nom. Thickness | Nom. Insulation Diameter |
|---|---|---|
| PPO - Polyphenylene Oxide | 0.012 in (0.30 mm) | 0.083 in (2.1 mm) |
|
Overall Cable Diameter (Nominal) |
0.083 in (2.1 mm) |
|---|
| Nom. Conductor DCR | Max. Current |
|---|---|
| 4.0 Ohm/1000ft | Single conductor in free air @ 30ºC: 26 A |
| UL Voltage Rating |
|---|
| 600 V RMS |
| UL Temperature | Operating |
|---|---|
| 105°C | -40°C To +105°C Dry |
| Stationary Min. | Installation Min. |
|---|---|
| 0.83 in (21 mm) | 0.83 in (21 mm) |
|
Max. Pull Tension |
27 lbs (12 kg) |
|---|---|
|
Bulk Cable Weight |
10 lbs/1000ft |
|
Environmental Suitability |
Indoor, Outdoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
VW-1 |
|
AWM Compliance |
AWM 11028 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
Notes |
Halogen-free. |
|---|
|
Update and Revision |
Revision Number: 0.489 Revision Date: 01-20-2023 |
|---|
| Item # | Color | Putup Type | Length | UPC |
|---|---|---|---|---|
| 39116 010100 | Black | Reel | 100 ft | 612825149118 |
| 39116 0101000 | Black | Reel | 1,000 ft | 612825149125 |
| 39116 0105000 | Black | Reel | 5,000 ft | 612825149132 |
| 39116 013100 | Blue, Dark | Reel | 100 ft | 612825149149 |
| 39116 0131000 | Blue, Dark | Reel | 1,000 ft | 612825149156 |
| 39116 0135000 | Blue, Dark | Reel | 5,000 ft | 612825149163 |
| 39116 001100 | Brown | Reel | 100 ft | 612825148876 |
| 39116 0011000 | Brown | Reel | 1,000 ft | 612825148883 |
| 39116 0015000 | Brown | Reel | 5,000 ft | 612825148890 |
| 39116 008100 | Gray | Reel | 100 ft | 612825149057 |
| 39116 0081000 | Gray | Reel | 1,000 ft | 612825149064 |
| 39116 0085000 | Gray | Reel | 5,000 ft | 612825149071 |
| 39116 005100 | Green, Dark | Reel | 100 ft | 612825148999 |
| 39116 0055000 | Green, Dark | Reel | 5,000 ft | 612825149019 |
| 39116 189100 | Green, Yellow Stripe | Reel | 100 ft | 612825149170 |
| 39116 1891000 | Green, Yellow Stripe | Reel | 1,000 ft | 612825149187 |
| 39116 1895000 | Green, Yellow Stripe | Reel | 5,000 ft | 612825149194 |
| 39116 003100 | Orange | Reel | 100 ft | 612825148937 |
| 39116 0035000 | Orange | Reel | 5,000 ft | 612825148951 |
| 39116 002100 | Red | Reel | 100 ft | 612825148906 |
| 39116 0021000 | Red | Reel | 1,000 ft | 612825148913 |
| 39116 0025000 | Red | Reel | 5,000 ft | 612825148920 |
| 39116 0075000 | Violet | Reel | 5,000 ft | 612825149040 |
| 39116 009100 | White | Reel | 100 ft | 612825149088 |
| 39116 0091000 | White | Reel | 1,000 ft | 612825149095 |
| 39116 0095000 | White | Reel | 5,000 ft | 612825149101 |
| 39116 004100 | Yellow | Reel | 100 ft | 612825148968 |
| 39116 0041000 | Yellow | Reel | 1,000 ft | 612825148975 |
| 39116 0045000 | Yellow | Reel | 5,000 ft | 612825148982 |
