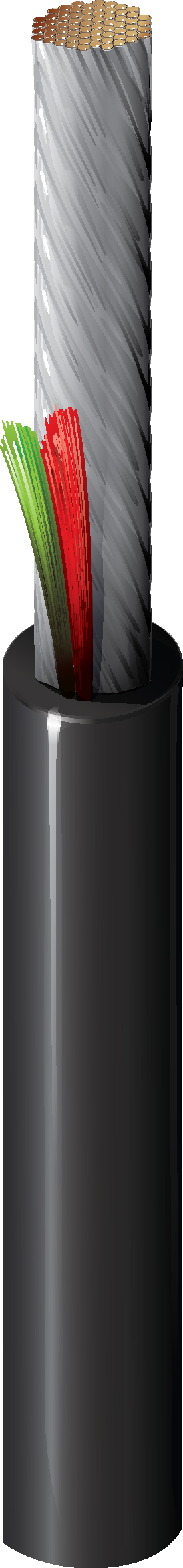

8897

Lead Wire, #18 Str TC, Rubber Ins

...
Low Temp Rubber Lead Wire, 18AWG (65x36) Tinned Copper, Rubber Insulation, 5000V 80C
Request Sample Get Product Alerts
Specifications
Product Overview

Suitable Applications

used as test probe lead for electrical and electronic measuring for test equipment

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
18 65x36 TC - Tinned Copper 1

Conductor Count

1

Insulation
Material Nominal Wall Thickness
EPDM - Ethylene Propylene Diene Monomer 0.0485 in
Electrical Characteristics
Voltage
Breakdown Voltage Non-UL Voltage Rating Suggested Working Voltage
20,000 V 5000 V 5,000 V
Temperature Range

Non-UL Temp Rating

80°C

Mechanical Characteristics

Bulk Cable Weight

7 lbs/1000ft

Min. Bend Radius/Minor Axis

0.58 in

Standards

Military Compliance

MIL-W-13169B

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

CA Prop 65

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

N/A

Plenum/Non-Plenum

Plenum (Y/N)

No

Product Notes

Notes

20000 V Breakdown

History

Update and Revision

Revision Number: 0.365 Revision Date: 04-08-2022

Part Numbers
Item # Color Put-Up Type Length UPC
8897 010500 Black Reel 500 ft 612825217589
8897 010U500 Black Reel 500 ft 612825217572
8897 002500 Red Reel 500 ft 612825217565
8897 002U500 Red Reel 500 ft 612825217558
