BE41436

Lead Wire, 0.375mm² Str BC, PVC Ins, 70°C

...
12x0.2B PVC VMDS 70C
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

IEC 189-3, VMDS 70C

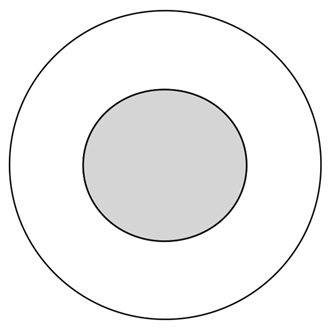

Physical Characteristics (Overall)
Conductor
Stranding Material Cross Section Construction n x D
Stranded BC - Bare Copper 0.375 mm² 12x0.20 mm

Conductor Count

1

Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness
Insulation PVC - Polyvinyl Chloride 1.9 mm 0.1 mm 0.4 mm
Electrical Characteristics
Conductor DCR
Element Max. Conductor DCR
Conductor(s) 52 Ohm/km

Min Insulation Resistance

10 MOhm*km

Standards

UL AWM Style Compliance

N/A

Military Compliance

N/A

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU CE Mark

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

N/A

History

Update and Revision

Revision Number: 0.149 Revision Date: 04-08-2022

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
BE41436.004000 Black Reel 4,000 m 8719605025784
BE41436.014000 Black Reel 4,000 m 8719605025791
