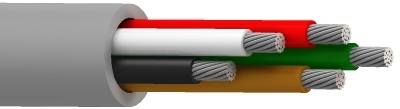

8445MN

SpaceMaker™, 5 C #22 Str TC, PO Ins, PVC Jkt, AWM 2937

...
SpaceMaker™, 5 Conductor 22AWG (19x34) Tinned Copper, PO Insulation, PVC Outer Jacket, AWM 2937
Request Sample Get Product Alerts
Specifications
Construction Details
Conductor
Element Number of Element Size Stranding Material
Conductor(s) 5 22 AWG 19x34 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP - Polypropylene 0.010 in (0.25 mm) 0.050 in (1.3 mm) Black, White, Red, Green, Brown
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.016 in (0.41 mm) 0.167 in

Overall Cable Diameter (Nominal)

0.167 in

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence Max. Current
18.1 Ohm/1000ft 16.6 pF/ft (54.5 pF/m) 51 Ohm 2.32 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
0.670 in (17.0 mm) 0.670 in

Max. Pull Tension

47.5 lbs (21.5 kg)

Bulk Cable Weight

19 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor

Flammability / Reaction to Fire

FT2

AWM Compliance

AWM 2937

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision

Revision Number: 0.194 Revision Date: 04-08-2022

Part Numbers
Item # Color Putup Type Length UPC
8445MN 006100 Blue, Light Reel 100 ft 612825388647
8445MN 0061000 Blue, Light Reel 1,000 ft 612825388654
8445MN 008100 Gray Reel 100 ft 612825388661
8445MN 0081000 Gray Reel 1,000 ft 612825388678
8445MN 004100 Yellow Reel 100 ft 612825388623
8445MN 0041000 Yellow Reel 1,000 ft 612825388630
