8778LS

Audio, Control & Instrument, 6PR#22 Str TC, PO ins, IF, LSNH Jkt, 300V

...
Audio, Control & Instrument, 6 Pair AWG 22 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Individually Foiled + No Overall shielding, LSZH / FRNC jacket , 300V
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Instrumentation and computer cable; For data transmission applications

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
22 7x30 TC - Tinned Copper 6

Conductor Count

12

Insulation
Material Nominal Diameter Diameter +/- Tolerance
PP - Polypropylene 1.27 mm 0.05 mm
Color Chart
Number Color
Pair 1 Black & Red
Pair 2 Black & White
Pair 3 Black & Green
Pair 4 Black & Blue
Pair 5 Black & Yellow
Pair 6 Black & Brown

Table Notes

Shielded pairs

Color Chart 2
Number Color
Pair 1 Red
Pair 2 Green
Pair 3 Blue
Pair 4 Blue
Pair 5 Blue
Pair 6 Blue
Inner Shield
Type Layer Material Material Trade Name Thickness of Foil Drainwire Material Drainwire AWG
Tape 1 Bi-Laminate (Alum+Poly) Beldfoil® (Z-Fold®) 9 / 12 µm TC - Tinned Copper AWG22/7
Tape 2 Polyester 12 µm
Inner Jacket
Material Color Nominal Diameter Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) Chrome (RAL 7037) 9.5 mm 0.89 mm
Outer Shield
Material
Bi-Laminate (Alum+Poly)
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH - Low Smoke Zero Halogen (Flame Retardant) 13.9 mm 1.35 mm
Construction and Dimensions
Cabling
Description Filler

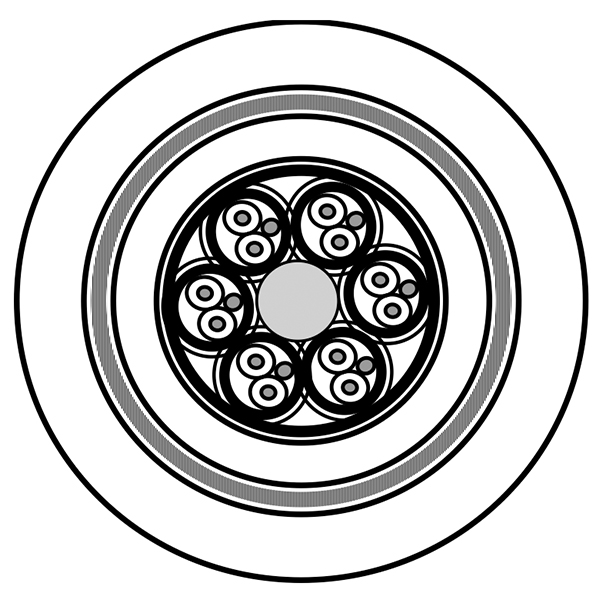

1 center filler and 6 pairs twisted to cable core covered with a polypropylene foil Foamed flame retardant Polypropylene (2.50 mm)
Armor
Type of Armor Material Thickness of Armoring Wires Coverage Percentage
Steel Wire Armoring Galvanized steel wire 1.25 mm Min. 95%
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Inner Shield DCR
49.2 Ohm/km 34.8 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
98.4 pF/m 180.4 pF/m
Inductance
Nominal Pair Inductance
0.59 µH/m
Impedance
Nominal Characteristic Impedance
50 Ohm
Current
Element Max. Recommended Current [A]
Conductor(s) 2 A
Voltage
Voltage Rating [V]
300 V
Temperature Range

Installation Temperature Range

-15°C To +80°C

Storage Temperature Range

-45°C To +80°C

Operating Temp Range (Flexible Install)

-15°C To +80°C

Operating Temp Range (Fixed Install)

-45°C To +80°C

Mechanical Characteristics

Oil Resistance

IEC 60811-404

Min. Bend Radius During Installation

208.5 mm

Standards

CENELEC Compliance

EN 50290-2-20
Applicable Environmental and Other Programs

Environmental Space

Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor - Euroclass Eca
Suitability

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-3-24

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

IEC 61034-2 - Smoke Density Min. Transmittance

60%

History

Update and Revision

Revision Number: 0.234 Revision Date: 02-20-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
8778LS.00500 Black Reel 500 m 8719605019684
8778LS.001000 Black Reel 1,000 m 8719605019677
